LUYOR XX-Series UV Bench Lamps

LUYOR Bench XX-Series UV Lamps offer a complete selection of models - fixture only or with a choice of the following wavelengths: longwave, BLB (black light blue), shortwave or midrange. Shortwave UV (254nm) offers a reliable and effective tool for several applications in hospitals, laboratories, pharmaceutical companies and clinic. The 352 nm BLB tubes can be used in inspection and testing applications.


LUYOR XX-Series UV Bench Lamps

INTRODUCTION

LUYOR XX-Series UV Bench Lamps

  • Various fixture sizes, watts and wavelengths are available

  • Lamps include holes on each end of the fixture for hanging or mounting the lamp

  • Lamps are manufactured with a durable aluminum housing and powder paint scratch resistant finish

  • Shortwave lamps can be used in an upward facing position in a downward position

Product Details

LUYOR Bench XX-Series UV Lamps offer a complete selection of models - fixture only or with a choice of the following wavelengths: longwave, BLB (black light blue), shortwave or midrange. Shortwave UV (254nm) offers a reliable and effective tool for several applications in hospitals, laboratories, pharmaceutical companies and clinic. The 352 nm BLB tubes can be used in inspection and testing applications.

  • Shortwave UV: Applications in hospital and laboratory field”

  • Longwave/Midrange: Fluoresence and inspection

*Product performance and effectiveness will depend on the user.*

LUYOR XX-Series UV Bench Lamps

LUYOR XX-Series UV Bench Lamps Technical Data

Specifications
UV Source

Select from 254 nm, 365 nm, 365 nm BLB and 302 nm.
Refer to the Part Numbers tab to determine which wavelengths are available in each lamp size. The 352 nm BLB tube is available as an option for use in the XX-15 lamp fixture.

Watts

Select from 15 watt, 20 watt or 40 watt

XX-15 Dimensions

19.75L x 6W x 4.25H in. (502 x 152 x 108 mm)
Weight: 5 lb (2.3 kg)

XX-20 Dimensions

24L x 6W x 4.25H in. (610 x 152 x 108 mm)
Weight: 10 lb (4.5 kg)

XX-40 Dimensions

49.6L x 6W x 4.25H in. (1260 x 152 x 108 mm)
Weight: 20 lb (9.0 kg)

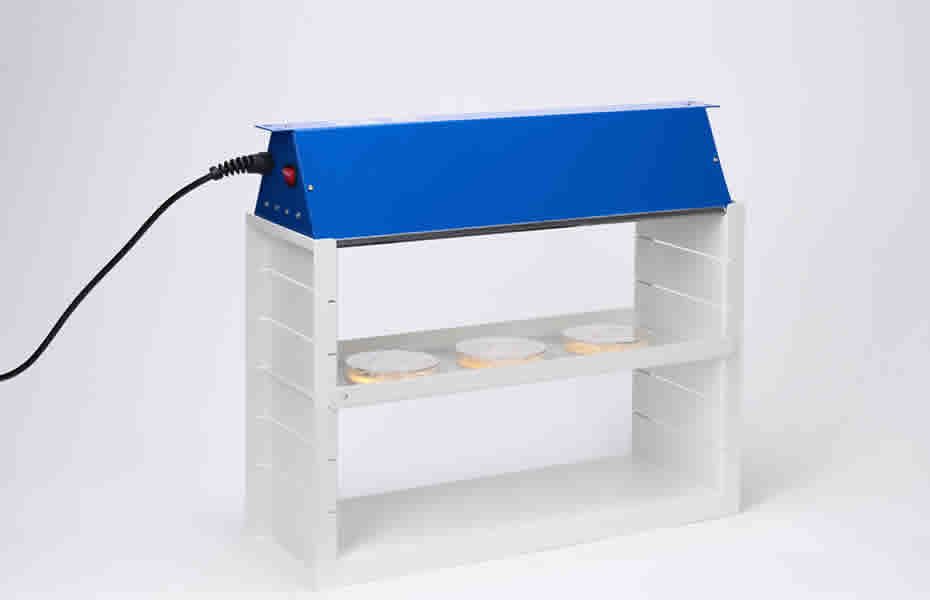

Exposure Stand

20W x 6D x 13H in.
Weight: 8 lb (3.6 kg)

LUYOR XX-Series UV Bench Lamps Order Information

XX-Series - 15 Watt UV Bench Lamps

XX-15XX-15 Bench Lamp Fixture (no UV tubes)
XX-15BLBXX-15BLB Bench Lamp, 365 nm BLB
XX-15CXX-15S Bench Lamp, 254 nm
XX-15AXX-15LW Bench Lamp, 365 nm
XX-15BXX-15MR Bench Lamp, 302 nm

XX-Series - 20 Watt UV Bench Lamps

XX-20XX-20S Bench Lamp, No UV tubes
XX-20BLBXX-20BLB Bench Lamp, 365 nm BLB
XX-20SXX-20C Bench Lamp, 254 nm

XX-Series - 40 Watt UV Bench Lamps

XX-40XX-40 Bench Lamp, No UV tubes
XX-40BLBXX-40BLB Bench Lamp, 365 nm BLB
XX-40SXX-40C Bench Lamp, 254 nm
XX-40MXX-40B Bench Lamp, 302 nm

 LUYOR XX-15A UV Bench Lamps

LUYOR XX-20A UV Bench Lamps
