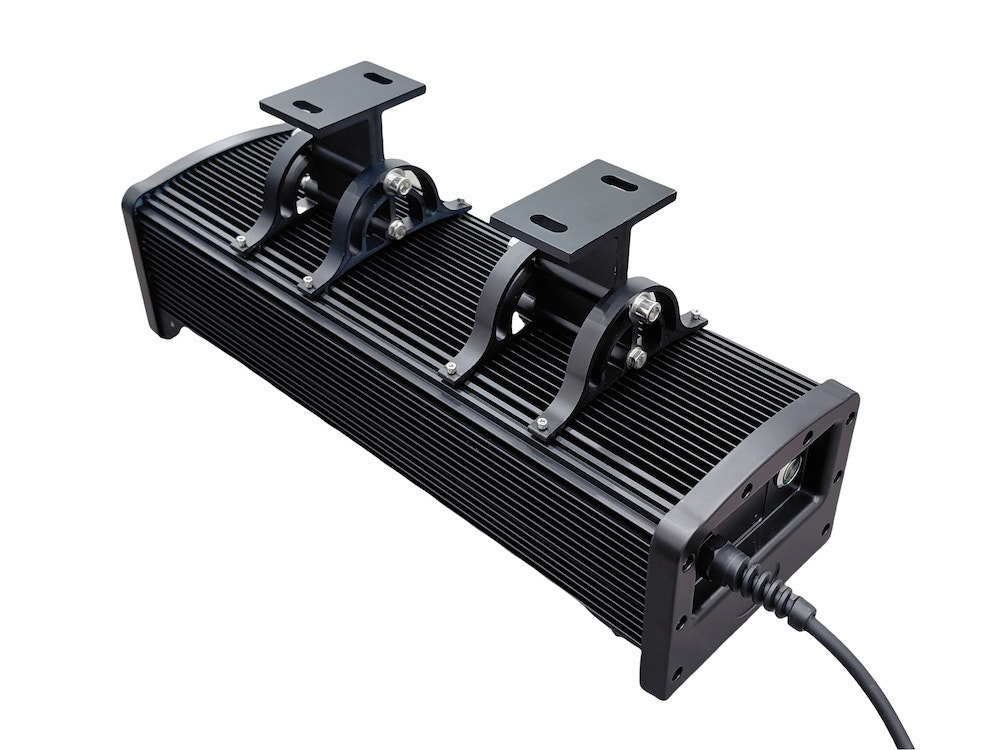

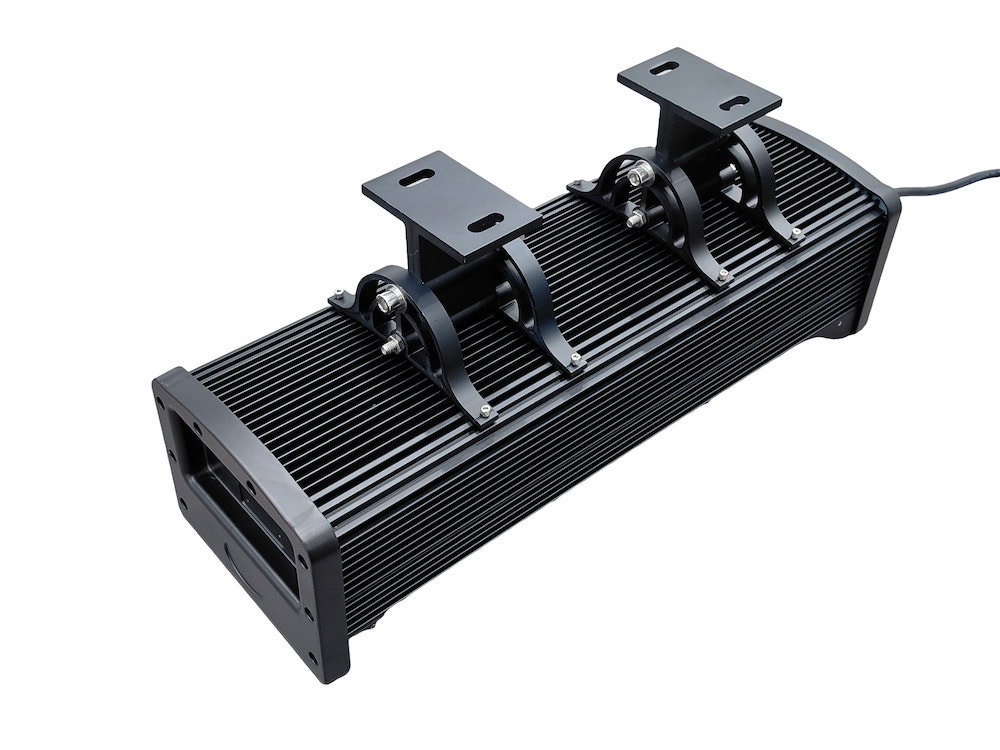

The Panel Flood Lamp LUYOR-3124 is designed for efficient detection of fluorescent proteins. Featuring 24 LEDs and high-grade filters, LUYOR-3124 delivers intense and uniform excitation light over a wide area. LUYOR-3124 is a powerful tool to detect large batches of transformed samples, such as trays of plants and groups of mice.
INTRODUCTION
The Panel Flood Lamp LUYOR-3124 is designed for efficient detection of fluorescent proteins. Featuring 24 LEDs and high-grade filters, LUYOR-3124 delivers intense and uniform excitation light over a wide area. LUYOR-3124 is a powerful tool to detect large batches of transformed samples, such as trays of plants and groups of mice.
Efficient detection of large batches of transformed samples (e.g., trays of plants)
A panel of 24 high-power LEDs provides ultra-uniform illumination over a wide coverage area
Instant-on operation, reaches full intensity immediately for efficient detection
Long lasting LEDs with expected lifetime of 50,000 hours
Adjustable mounting options for easy installation
Water-resistant and cooling design ensures reliable performance in various environments
Durable housing designed for years of use
For a comprehensive table of fluorophores and recommended LUYOR-3124 excitation wavelengths, please refer to the following table:
| Model | Light | Excitation | Emission | Fluorescent Proteins |
| LUYOR-3124UV | Ultraviolet | 360-380 nm | 415nm longpass | DAPI, Hoechst, … |
| LUYOR-3124VI | Violet | 400-415 nm | 460nm longpass | BFP, CFP, … |
| LUYOR-3124RB | Royal Blue | 440-460 nm | 500nm longpass or 500-560nm bandpass | GFP, Fluorescein, Calcein, Lucifer Yellow, … |
| LUYOR-3124CY | Cyan | 490-515 nm | 550nm longpass | YFP, Venus, … |
| LUYOR-3124GR | Green | 510-540 nm | 600nm longpass | DsRed, TdTomato, RFP, … |
Available Wavelengths: choose any one from 365nm, 400nm, 450nm, 485nm, and 520nm
Light Source: a panel of 24 LEDs
Lifetime: 50,000 hours
Coverage Area: 18 x 45 cm (7 x 17.7 in) at 40 cm (15.7 in)
Power Supply: 100-240V AC, 50/60 Hz
Accessory: a pair of barrier filter matched with your choice of wavelength

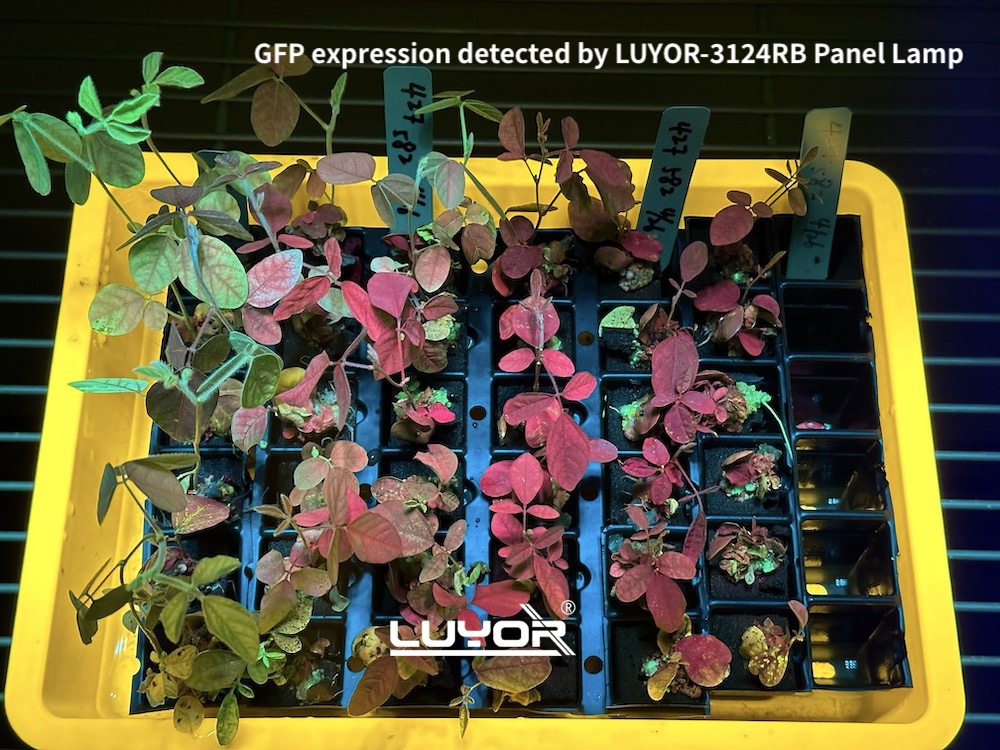

Photo below: GFP expression in trays of plants detected by LUYOR-3124RB Panel Flood Lamp (photo provided by LUYOR customer)
