LUYOR-3280 Fluorescence Flashlight

View fluorescence in the lab or the field! The LUYOR-3280 Fluorescence Flashlight is available with any of the five wavelengths, paired with matching barrier filter glasses for maximum viewing contrast. Genotyping your transgenic organisms, screening cell cultures, inspecting parts with fluorescent penetrants, finding fluorescing critters in the field, … the LUYOR-3280 provides what you need!


LUYOR-3280 Fluorescence Flashlight

INTRODUCTION

View fluorescence in the lab or the field! The LUYOR-3280 Fluorescence Flashlight is available with any of the five wavelengths, paired with matching barrier filter glasses for maximum viewing contrast. Genotyping your transgenic organisms, screening cell cultures, inspecting parts with fluorescent penetrants, finding fluorescing critters in the field, … the LUYOR-3280 provides what you need!

LUYOR-3280 Fluorescence Flashlight

Product Features

  • High intensity with 20w LED

  • Tightly focused for a high intensity illumination spot

  • Large illuminated area with a diameter up to 30cm at 50cm

  • Each light paired with matching barrier filter glasses

  • Compact and lightweight, can be used in the lab or field!

  • Powered by a rechargeable high-capacity lithium ion battery

  • Each battery works for 2 hours. With a spare battery supplied, it can work continuously for 4 hours.

  • Multiple wavelengths available:365nm, 395nm, 405nm, 450nm, 505nm, 530nm, 580nm, 610nm, 760nm,830nm, and 950nm.

Wavelength Sets

Model Designation Excitation Barrier Filter Glasses Fluorophores
LUYOR-3280UV Ultraviolet 360 – 380nm 410nm longpass DAPI, …
LUYOR-3280VI Violet 400 – 415nm 450nm longpass BFP, CFP, …
LUYOR-3280RB Royal Blue 440 – 460nm 495nm longpass GFP, Fluorescein, Lucifer Yellow, …
LUYOR-3280RB-G Royal Blue, Green Only 440 – 460nm 500 – 550nm bandpass GFP, Fluorescein, Lucifer Yellow, …
LUYOR-3280CY Cyan 490 – 515nm 550nm longpass YFP, Venus, …
LUYOR-3280GR Green 510 – 540nm 590nm longpass DsRed, TdTomato, RFP, …

Customer Applications

GFP under LUYOR-3280RB blue light:

GFP under LUYOR-3280RB blue light

DsRed under LUYOR-3280GR green light:

dsred under LUYOR-3280GR green light

Corn seed under LUYOR-3280GR green light:

corn seed under LUYORR-3280GR green light

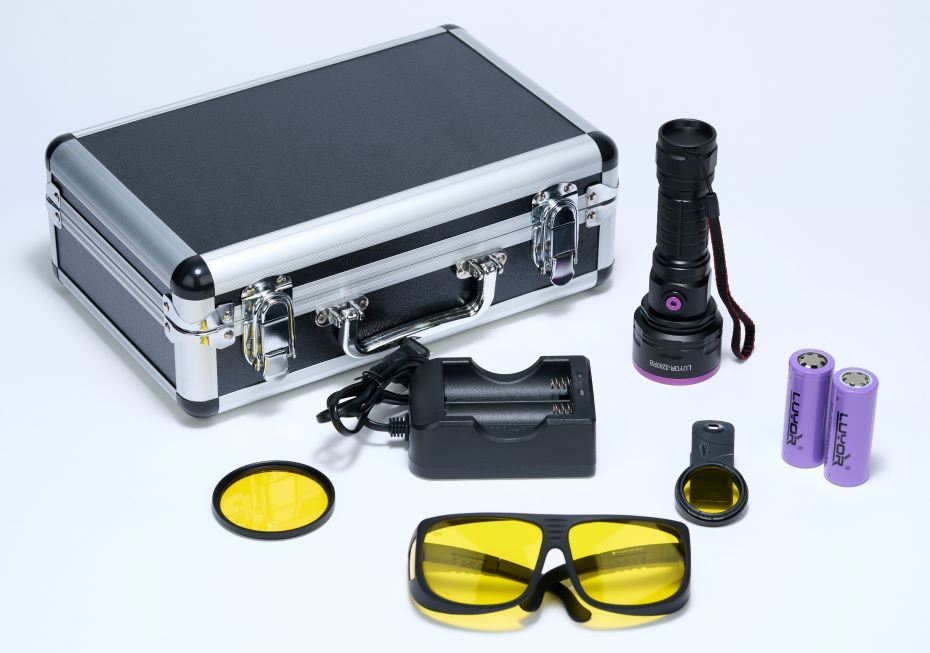

What's Included:

  1. LUYOR-3280 Fluorescence Flashlight (your choice of one wavelength) with lanyard

  2. Matching barrier filter glasses

  3. Two high-capacity lithium ion batteries

  4. Battery charger and USB charging cord

  5. Instruction manual

  6. A storage case

  7. Optional: tripod

LUYOR-3280 Fluorescence Flashlight

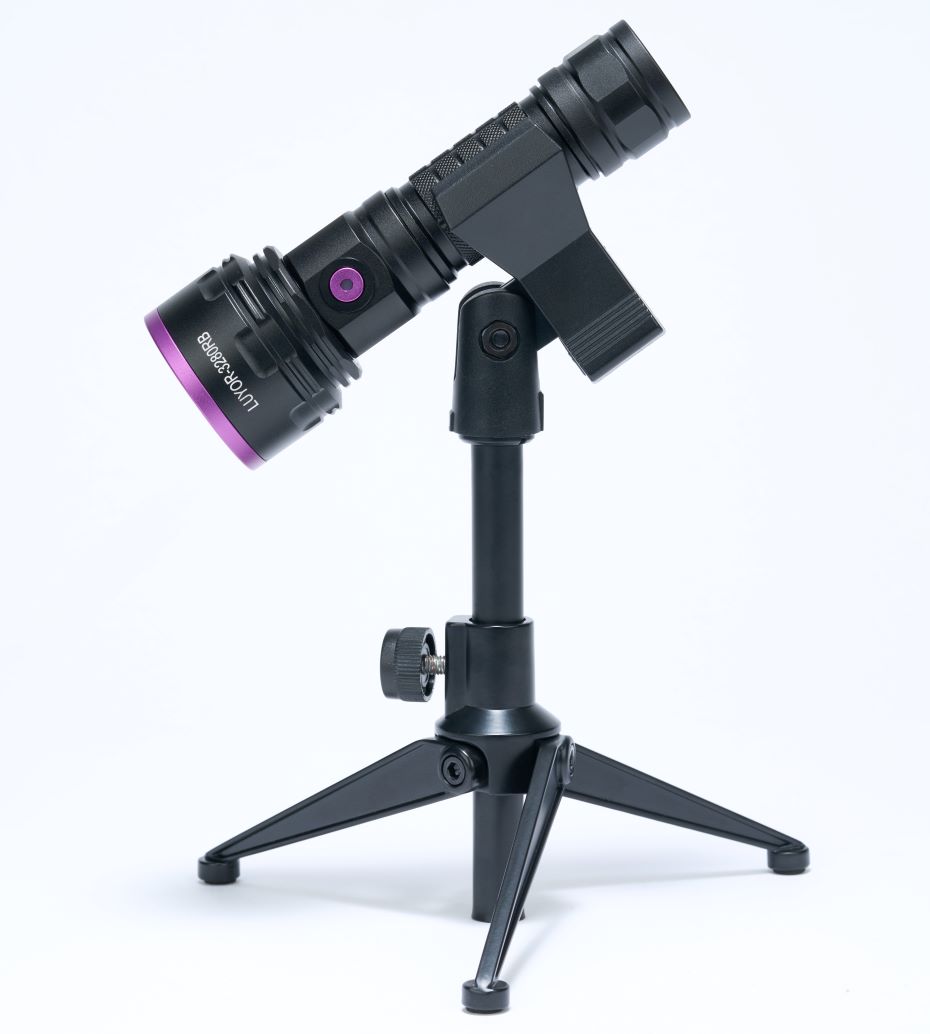

Optional tripod:

3LUYOR-3280 Fluorescence Flashlight

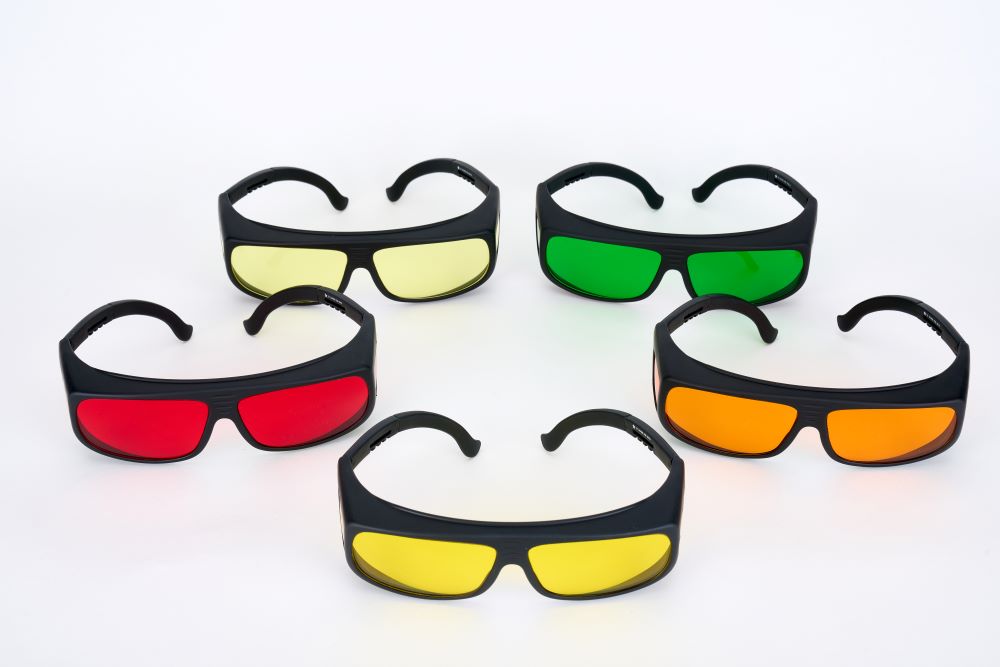

Fluorescence Viewing Glasses:

Fluorescence Viewing Glasses

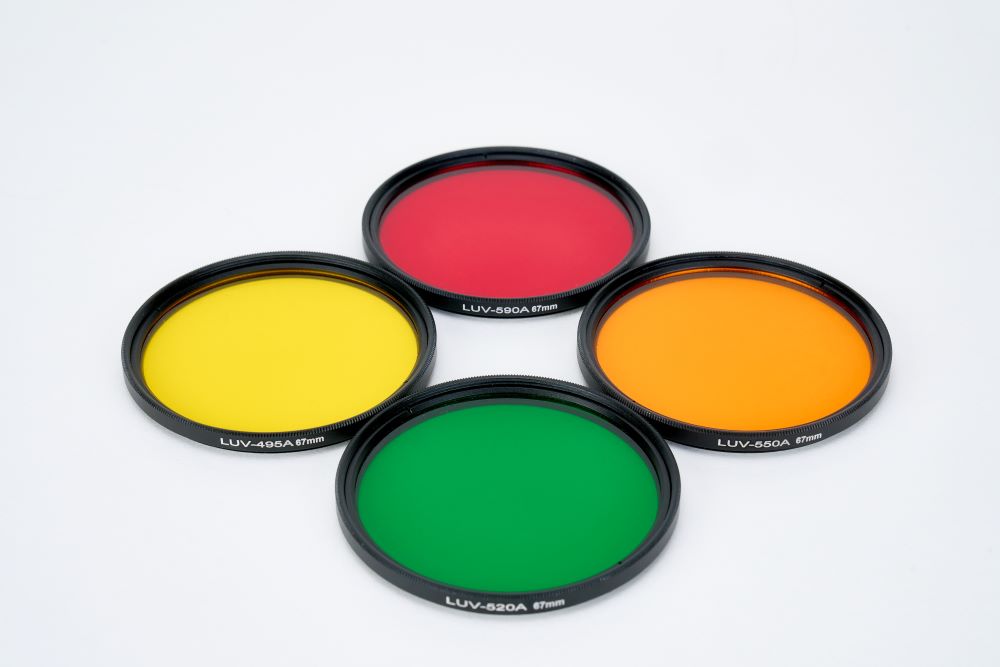

Fluorescent Protein Camera Filters:

Fluorescent Protein Camera Filters

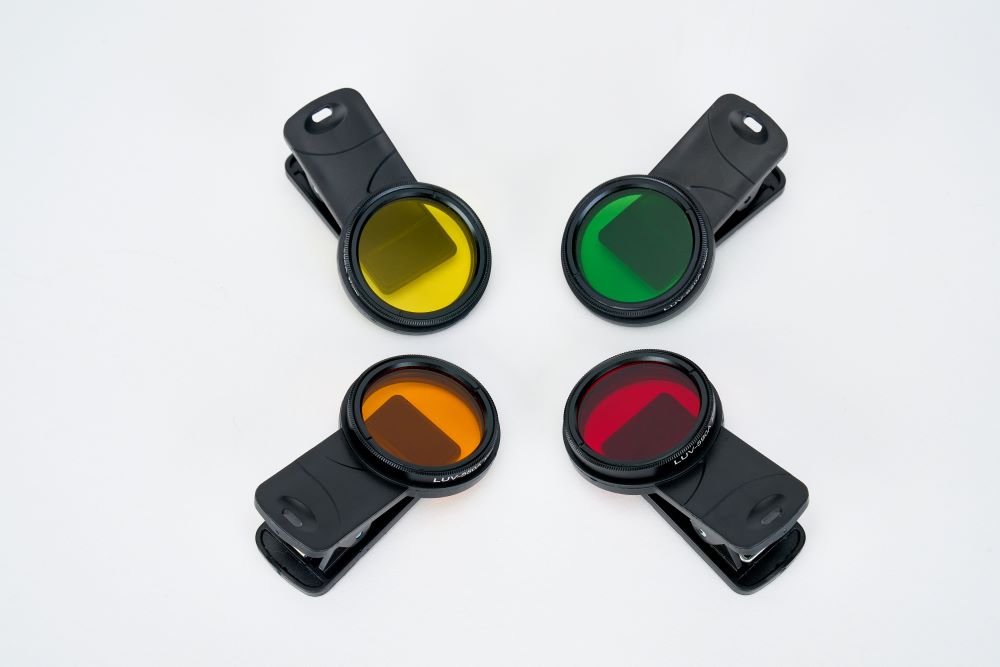

Mobile Phone Filters:

Mobile Phone Filters

Technical Data

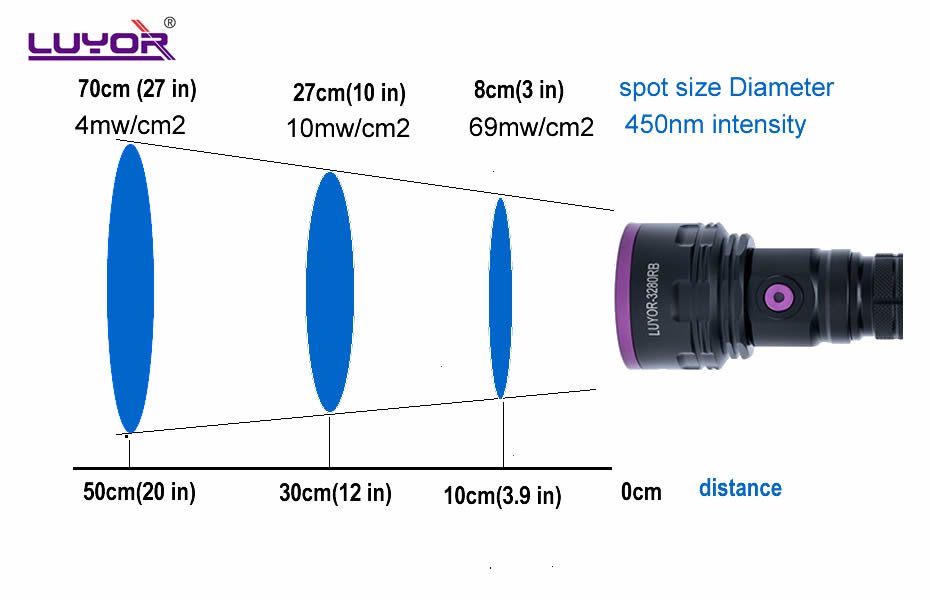

LUYOR-3280RB intensity and illuminated area:

LUYOR-3280RB Fluorescence Flashlight

LUYOR-3280UV intensity and illuminated area:

LUYOR-3280UV Fluorescence Flashlight
