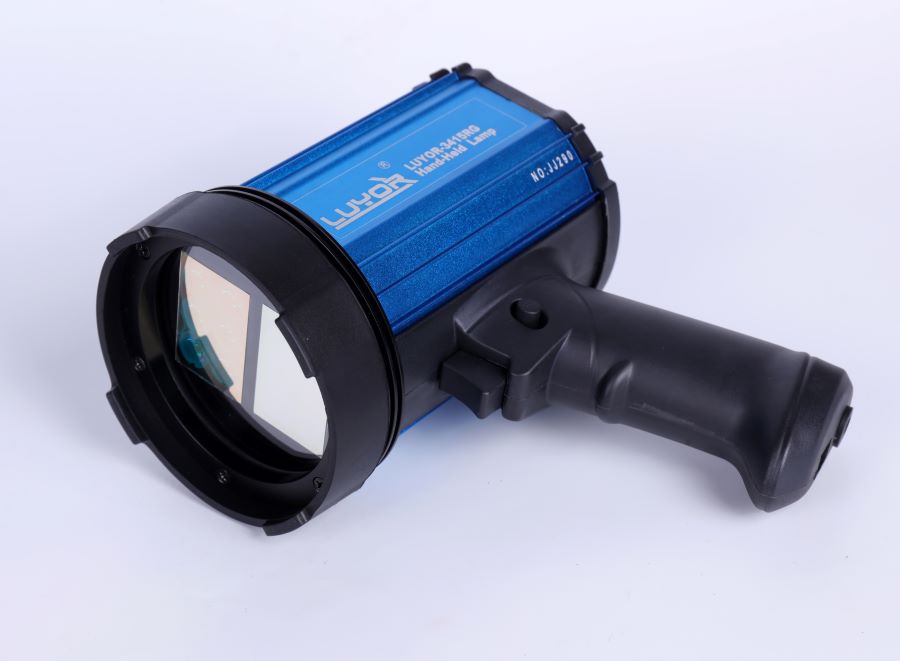

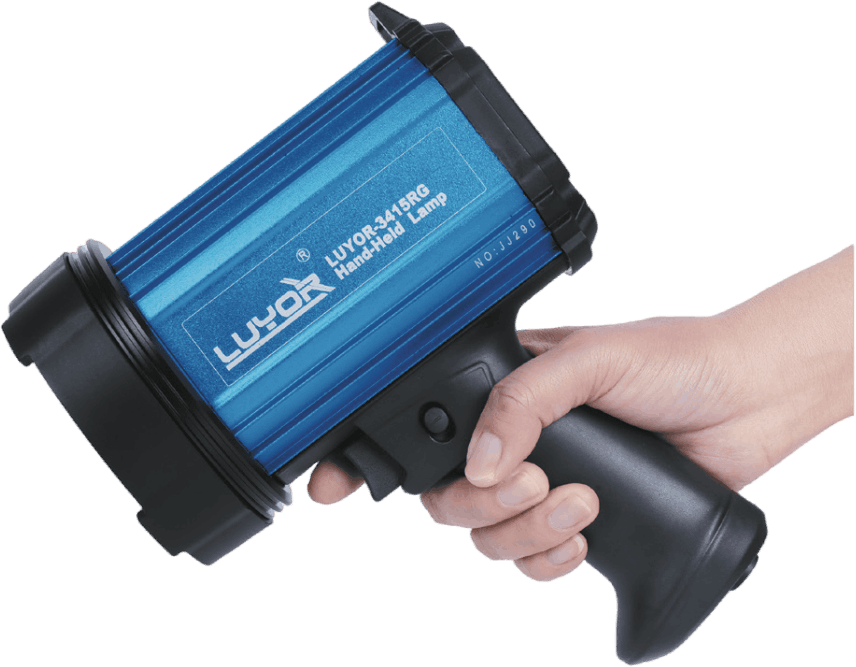

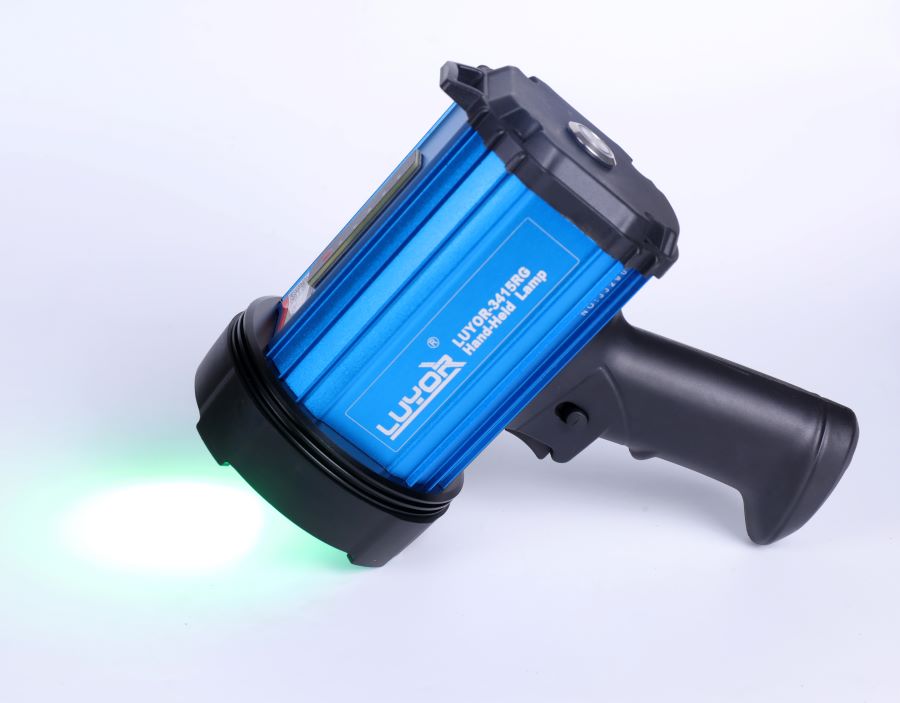

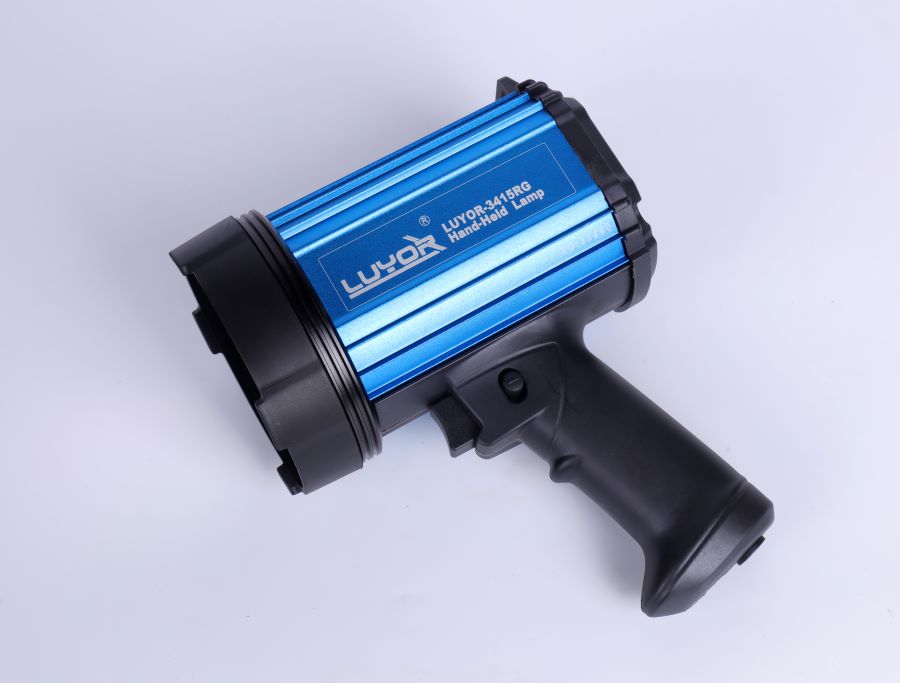

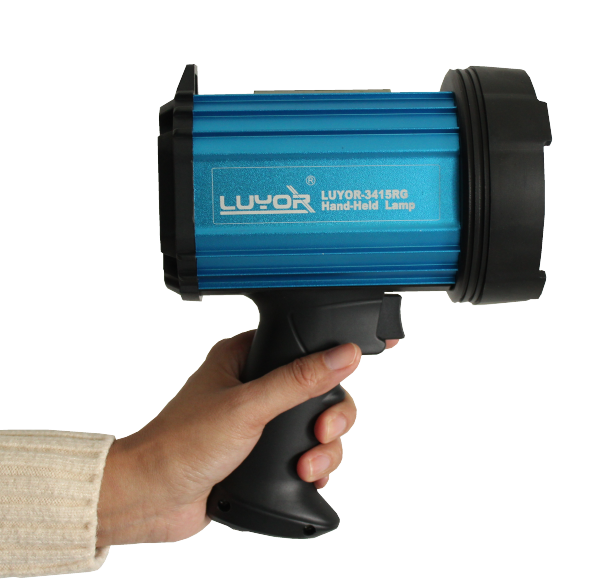

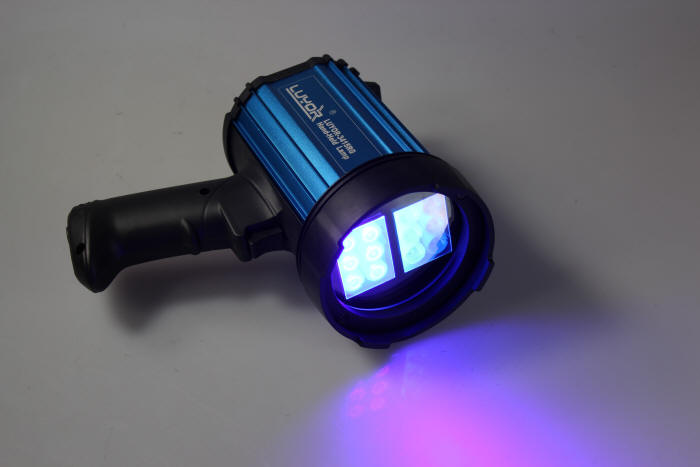

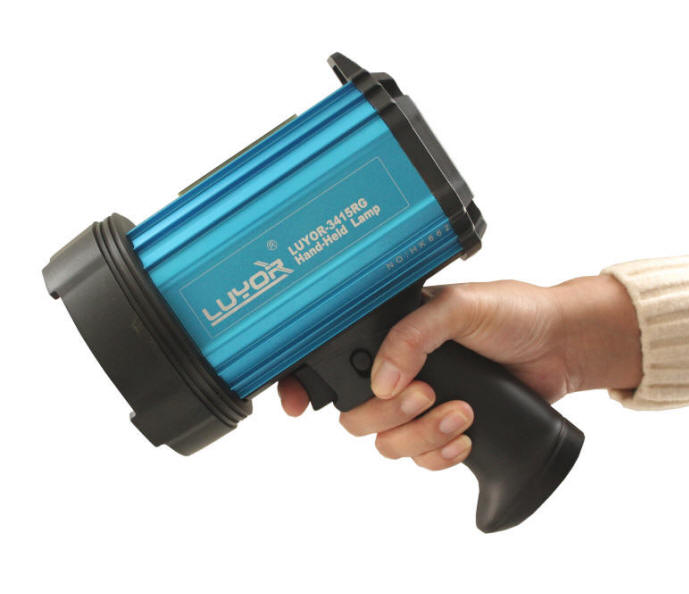

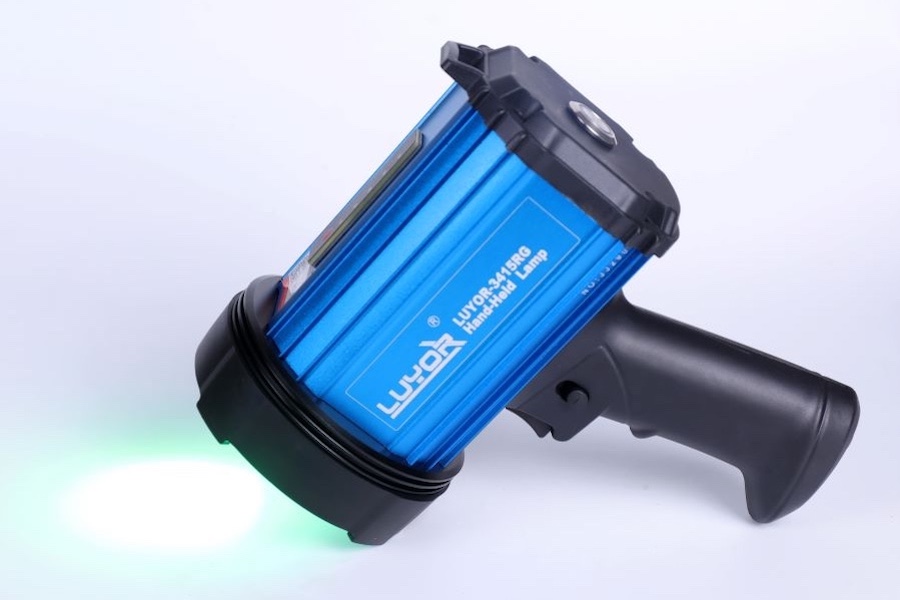

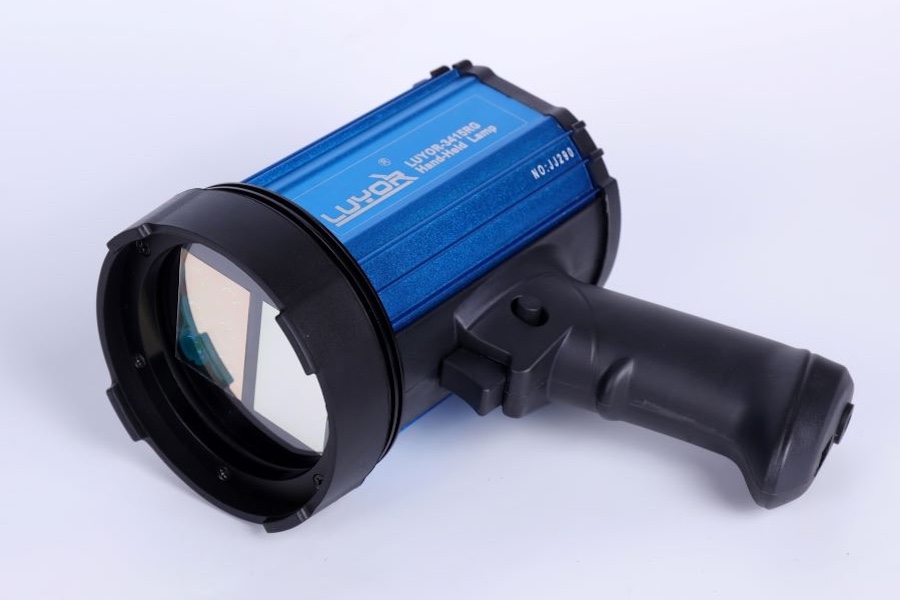

LUYOR-3415 Fluorescent Protein Light Source

The Dual Fluorescent Protein light source is a portable lamp that includes two different, switch-selectable high-intensity LEDs for excitation of fluorescent proteins or other fluorophores. It comes with matching barrier filter glasses and a handy carry/storage case.




LUYOR-3415 Fluorescent Protein Light Source

INTRODUCTION

LUYOR-3415 Dual Fluorescent Protein Excitation Light Source

The Dual Fluorescent Protein light source is a portable lamp that includes two different, switch-selectable high-intensity LEDs for excitation of fluorescent proteins or other fluorophores. It comes with matching barrier filter glasses and a handy carry/storage case.

We provide a lamp containing any two of the excitation colors. For a comprehensive table of fluorophores and recommended LUYOR excitation wavelengths that match, please refer to our article on the subject.

ColorExcitationEmissionFluorescent Protein
UltravioletExcitation 360 – 380 nmEmission 415nm longpassDAPI, Hoechst, …
VioletExcitation 400 – 415 nmEmission 460nm longpassBFP, CFP, …
Royal BlueExcitation 440 – 460 nmEmission 500nm longpass or 500 – 560nm bandpassGFP, fluorescein, calcein, lucifer yellow, …
CyanExcitation 490 – 515 nmEmission 550nm longpassYFP, Venus, …
GreenExcitation 510 – 540 nmEmission 600nm longpassDsRed, TdTomato, RFP, …

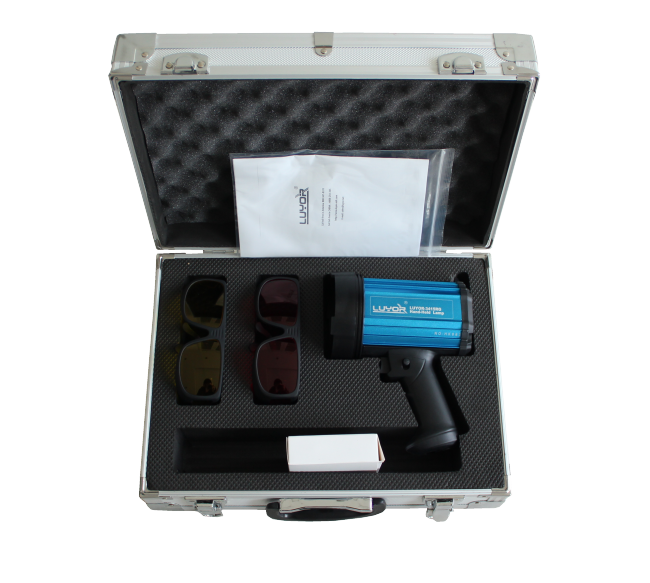

What comes with the LUYOR-3415?

With the LUYOR-3415 light, you receive two pairs of barrier filter glasses, a set of batteries, and a convenient storage case. The glasses are well matched to the excitation source so that they block the reflected excitation light while transmitting the fluorescence with high efficiency, providing excellent viewing contrast.


What are the part numbers for the different color combinations?

To specify your color combination, use the following part numbers:

LUYOR-3415 – The original combination, with Royal Blue and Green excitation
LUYOR-3415-AB – for any other combination, where ‘A’ and ‘B’ are the first letters of the excitation colors you want
U – Ultraviolet
V – Violet
R – Royal Blue
C – Cyan
G – Green
Example – LUYOR-3415-RG will have Royal Blue and Green LEDs

FG-UV – UV longpass
FG-VI – violet longpass
FG-RB – yellow longpass
FG-RB-GO – green only bandpass
FG-CY – cyan longpass
FG-GR – red longpass
One set of batteries included


Specifications

Power: AC 100-240 V, 50/60 Hz

Dimensions: 7.5 cm diam x 12.5 cm long (3 in. diam x 5 in. long) (excluding pistol grip)

Weight: 0.7 kg

Lamp type: LED

Lamp life: > 20,000 hours

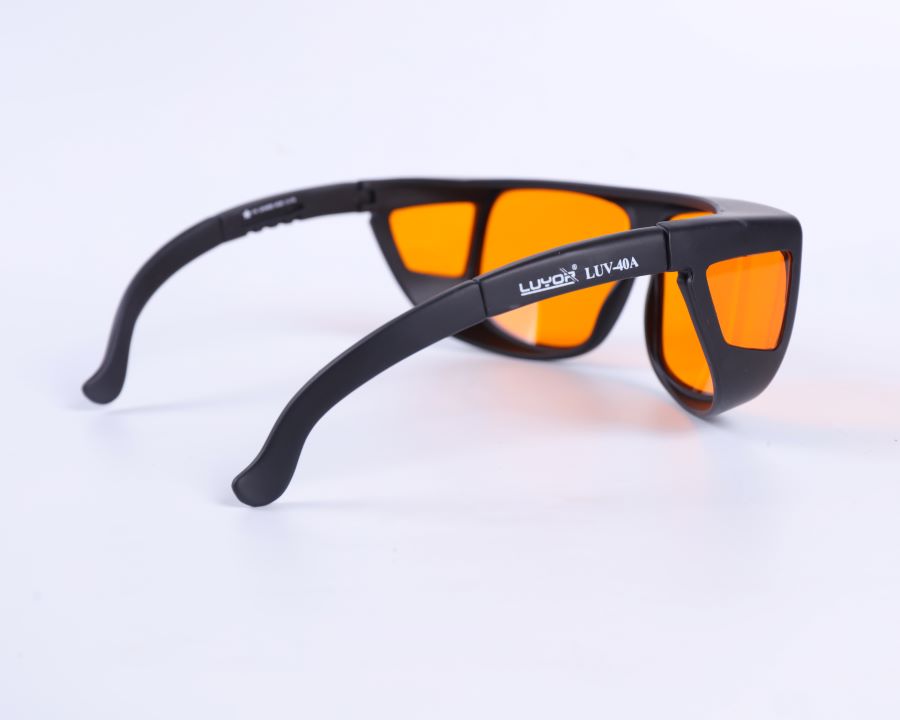

 LUV-20A, LUV-30A, LUV-40A, LUV-50A Glasses for observing fluorescent protein

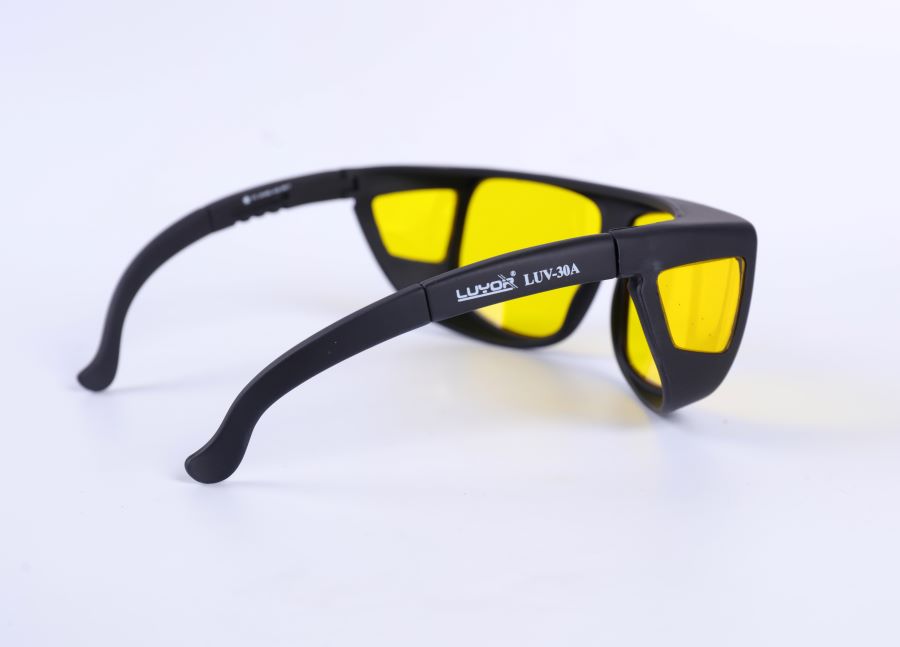

LUV-30A Glasses for observing Green Fluorescent Protein (GFP) and Enhanced Green Fluorescent Protein (EGFP).

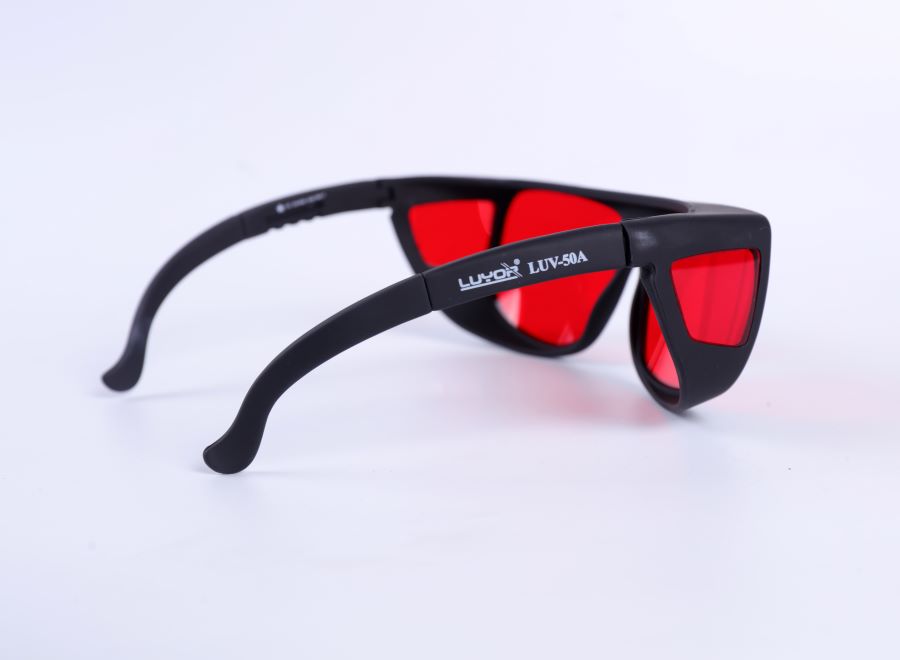

LUV-50A Glasses for observing RFP, mCherry, DsRed and Tdtomat.

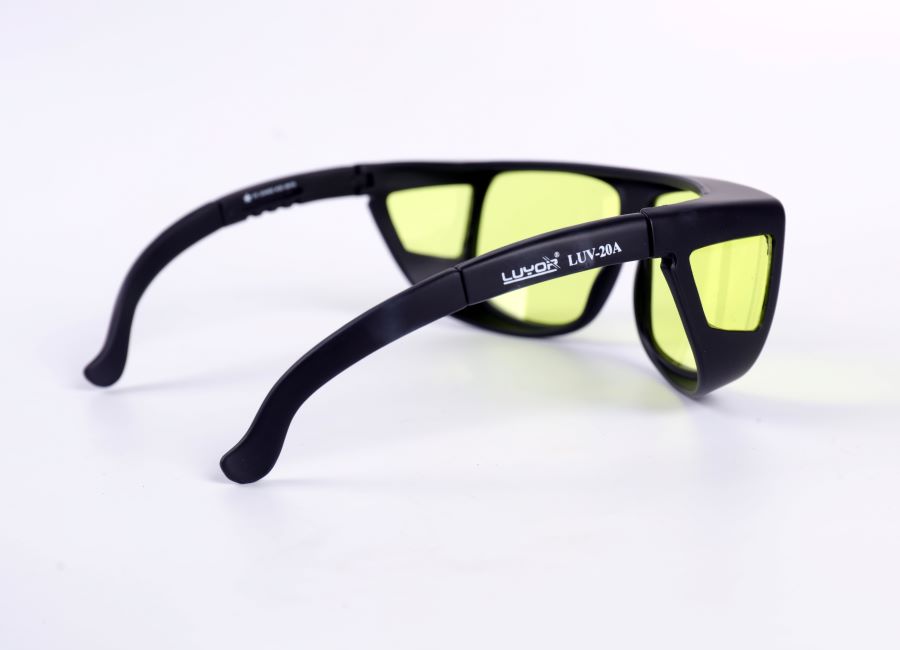

LUV-20A Glasses for observing CFP and BFP.


 LUYOR-3415RG荧光蛋白激发光源




LUYOR-3415 Technical Specification:

  1. Wavelength: choose any two from 365nm, 400nm, 450nm, 485nm and 520nm

  2. Weight: net weight 0.9kg, total weight 4kg

  3. Size: length 180mm, height 200mm, head diameter 120mm

  4. Power: 15W (single wavelength), 27W (total)

  5. Input: AC 100-260 V, 50/60 Hz

  6. Package size: 400 x 300 x 150mm (length x width x height)

  7. Irradiated diameter: 180mm at a distance of 150mm

LUYOR-3145RG观察dsred荧光蛋白的表达

Above is the expression of DsRed in Astragalus propinquus roots detected by LUYOR-3145RG.

(photo provided by Peking University Health Science Center)



Above is the expression of the GFP in poplar callus detected by LUYOR-3145RG.

(photo provided by Zhejiang Agriculture and Forestry University)


LUYOR-3415RG照射烟草叶片中的GFP瞬时表达

Above is the expression of the GFP in tobacco leaves detected by LUYOR-3145RG.

 (photo provided by Sichuan Agricultural University)


LUYOR-3145RG观察大豆根系中的gfp荧光蛋白的表达

Above is the expression of the GFP in soybean roots detected by LUYOR-3145RG.

 (photo provided by Huazhong Agricultural University)



Above is the expression of the GFP in poplar saplings detected by LUYOR-3145RG.

(photo provided by Zhejiang Agricultural University)

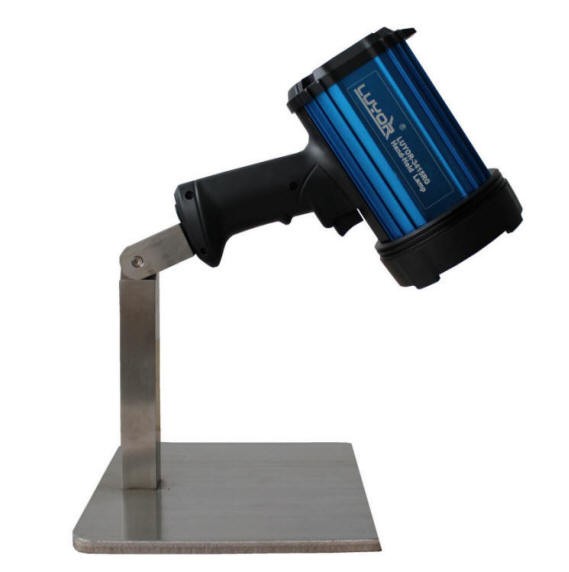

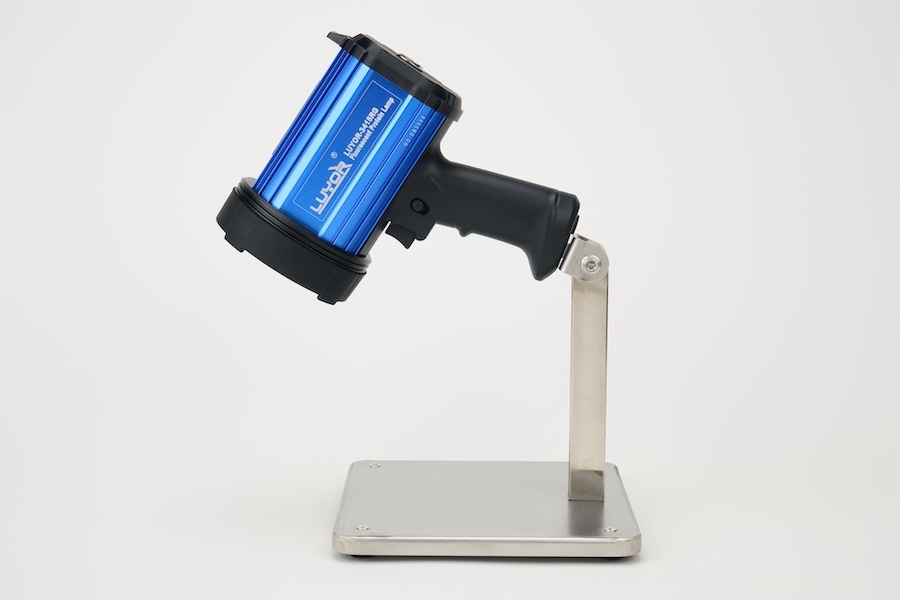

If you need to use the lamp for a long time (e.g. selecting corn, wheat, rice, Arabidopsis, or other seeds), we recommend you buy a stand so that you do not need to hold the lamp all the time.

 LUYOR-3145RG支架


What did our customers say about LUYOR-3415RG?


Zhejiang Agriculture and Forestry University

"The LUYOR-3415RG enabled us to observe the expression clearly. We no longer select samples one by one under a fluorescence microscope. The LUYOR-3415RG not only made our testing process more efficient but also prevented plant samples from being contaminated."


Hunan Hybrid Rice Research Center

"We used the LUYOR-3415RG to test and select red fluorescent seeds of hybrid rice. With its high light intensity, we can observe seeds clearly and select them accurately. The LUYOR-3415RG can work for a long time after charging. The lamp also comes with a stand that makes it possible to perform long-time manual selection while observing seeds. We look forward to the future of LUYOR technology! "



Nanjing Agricultural University

"We bought a portable excitation light source from LUYOR to observe the expression of the GFP in the plant issues. In the past, we had to sample plant tissues and observed them under a fluorescence microscope. Now, using LUYOR-3415RG, we can test live plant tissues without sampling. LUYOR-3415RG saves our testing time, reduces the workload, and leaves plant tissues untouched. Also, the lamp is portable and has a strong battery. Overall, LUYOR-3415RG has excellent performance, and it's cheaper compared with similar products.

We also purchased the LUV-520 filter for shooting plants. This filter improved the quality of our photos and we were able to satisfy the high-level requirement of SCI. The complimentary glasses are very useful, allowing us to observe proteins clearly while protecting us from the excitation light. In addition, LUYOR provides excellent pre- and after-sale services. LUYOR's technicians are supportive and respond quickly. They offered us a lot of valuable advice."


Southwest University

"The Arabidopsis seeds contain red fluorescent proteins. Under the light of LUYOR-3415RG, we can easily identity genetically modified Arabidopsis seeds. This greatly facilitated the subsequent selection of homozygotes. After seeds germinate and saplings grow up, the lamp can also be used to test saplings and assess the results of the previous selection. The roots of Arabidopsis saplings showed green fluorescent light under the light of LUYOR-3415RG. We are pretty satisfied with the performance of the lamp."



Guangdong Academy of Agricultural Sciences

"LUYOR‘s excitation light source is really useful. It helped us to identify positive GFP or RFP materials for Western blot, and the high-quality photos are perfect for the research papers. With the support of testing results, we can confidently proceed to the next stage of our experiment. "



Our Customers


By June 2019, we have sold 210 LUYOR-3415RG to renowned universities and research institutes in China.


Agriculture and Forestry Universities:

China Agricultural University

Nanjing Agricultural University

Huazhong Agricultural University

South China Agricultural University

Shandong Agricultural University

Hunan Agricultural University

Sichuan Agricultural University

Northeast Agricultural University

Shanxi Agricultural University

Nanjing Agricultural University

Beijing Agricultural University

Fujian Agriculture and Forestry University

Zhejiang Agriculture and Forestry University


Comprehensive Universities:

Shanghai Jiao Tong University

University of Science and Technology of China

Peking University

Nanjing University

Zhejiang University

Sun Yat-sen University

Southwest University

Guangxi University

Guizhou University

Hainan University

Yangzhou University

Hubei University

Inner Mongolia University

Henan Institute of Science and Technology

Jiangsu Normal University

Anyang Institute of Technology


Research Institutes:

Institute of Vegetables and Flowers, Chinese Academy of Agricultural Sciences

Institute of Crop Sciences, Chinese Academy of Agricultural Sciences

Research Institute of Pomology, Chinese Academy of Agricultural Sciences

Institute of Cotton Research, Chinese Academy of Agricultural Sciences

China Rice Research Institute, Chinese Academy of Agricultural Sciences

Tobacco Research Institute, Chinese Academy of Agricultural Sciences

Institute of Genetics and Developmental Biology, Chinese Academy of Sciences

Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences

Institute of Plant Physiology and Ecology, Chinese Academy of Sciences

Shanghai Chen Shan Botanic Garden, Chinese Academy of Sciences

Wuhan Botanic Garden, Chinese Academy of Sciences

Kunming Institute of Botany, Chinese Academy of Sciences

Institute of Botany, Chinese Academy of Sciences

Institute of Botany, Jiangsu Province and Chinese Academy of Sciences

Institute of Subtropical Agriculture, Chinese Academy of Sciences

Research Institute of Tropical Forestry, Chinese Academy of Forestry

Research Institute of Subtropical Forestry, Chinese Academy of Forestry

Chinese Academy of Tropical Agricultural Sciences

Zhejiang Academy of Agricultural Sciences

Hubei Academy of Agricultural Sciences

Shandong Academy of Agricultural Sciences

Guangdong Academy of Agricultural Sciences

Shanghai Academy of Agricultural Sciences

Hunan Hybrid Rice Research Center

Hybrid Rape Research Center of Shanxi Province

Xuzhou Academy of Agricultural Sciences
