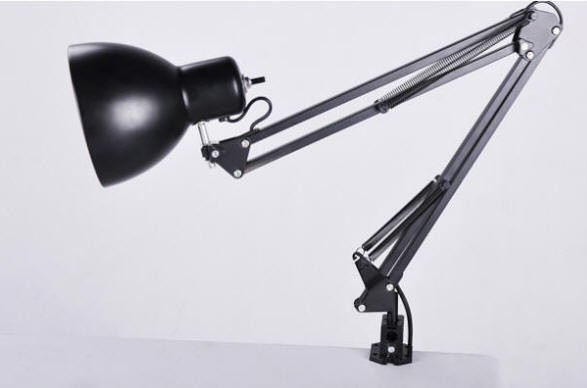

LUYOR-3405 desktop LED UV detection lamp

LUYOR-3405 desktop LED UV detection lamp is the United States for the fluorescent magnetic particle detection, fluorescent penetration testing industry developed a desktop UV LED test lamp. LUYOR-3405 desktop LED ultraviolet testing lamp uses 4 high energy ultraviolet LED, ultraviolet range is 360-370nm, no harmful UVB and UVC, 40cm ultraviolet intensity is 7000uw/cm2, effective radiation area is 150mm, LUYOR-3405 desktop lamp ultraviolet testing without power supply box is heavy, the line AC 220V power supply, using the table clamp type design, 360 degree rotation, very suitable for automated production line mass detection.


LUYOR-3405 desktop LED UV detection lamp

INTRODUCTION

LUYOR-3405 desktop LED UV detection lamp

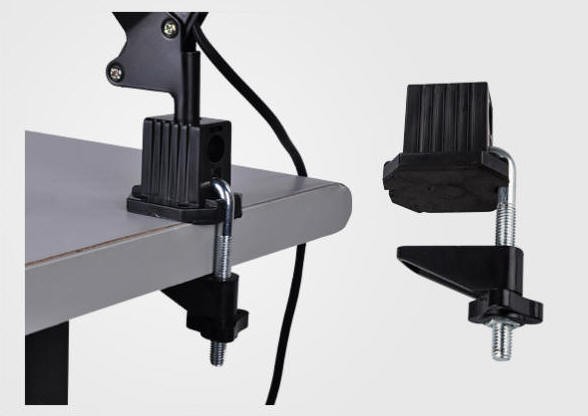

LUYOR-3405 desktop LED UV detection lamp is the United States for the fluorescent magnetic particle detection, fluorescent penetration testing industry developed a desktop UV LED test lamp. LUYOR-3405 desktop LED ultraviolet testing lamp uses 4 high energy ultraviolet LED, ultraviolet range is 360-370nm, no harmful UVB and UVC, 40cm ultraviolet intensity is 7000uw/cm2, effective radiation area is 150mm, LUYOR-3405 desktop lamp ultraviolet testing without power supply box is heavy, the line AC 220V power supply, using the table clamp type design, 360 degree rotation, very suitable for automated production line mass detection.







Features of LUYOR-3405 desktop LED UV detection lamp:

1 pure 365nm long wave UV output (3650 band UV).
2 aluminum alloy shell, effective heat transfer out.
3 instant start, that is, open and bright, no need to wait.
4 cold light source, 24 hours of work in a timely manner, the shell temperature is not more than 60 degrees.
5 white light illumination is less than 15lux (using Japanese Japanese Japanese HIOKI 3423 white light illumination meter 38cm measurement data).
6 in order to open up the Chinese market, the price is only 50% of similar products.
7 free warranty for three years (except for human factors).



Technical parameters of LUYOR-3405 desktop LED UV detector lamp:

projectdata
light source360-370nm, center wavelength: 365nm
UV intensityUVA:7000UW/CM2 (38CM center strength)
White light intensityBelow 15lux (38CM)
UVB, UVC0
Power SupplyAC 220V, 50Hz, 0.5A
Lamp size150x120 (long X diameter)
Long arm length50cm
quality0.8kg, gross weight: 3kg

Standard configuration for LUYOR-3405 desktop LED UV lamp:

LUYOR-3404 host, hard carrying case, LUV-10 transparent protective glasses, LUV-30 fluorescence enhanced protective glasses, manual, certificate, warranty card.
