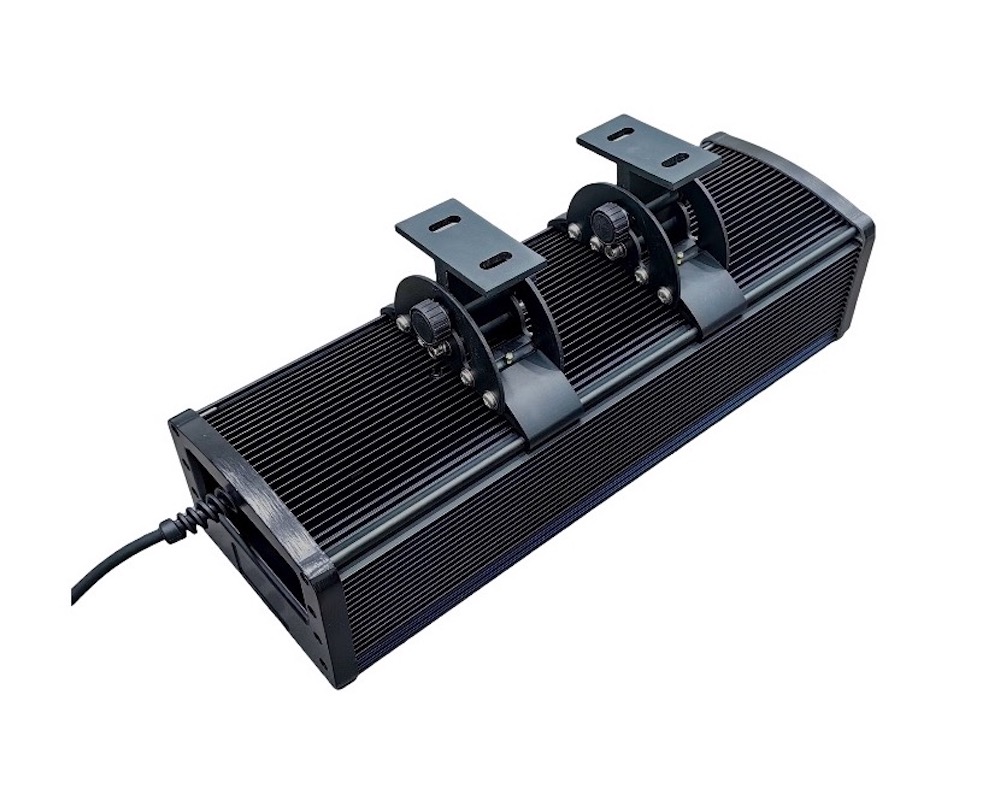

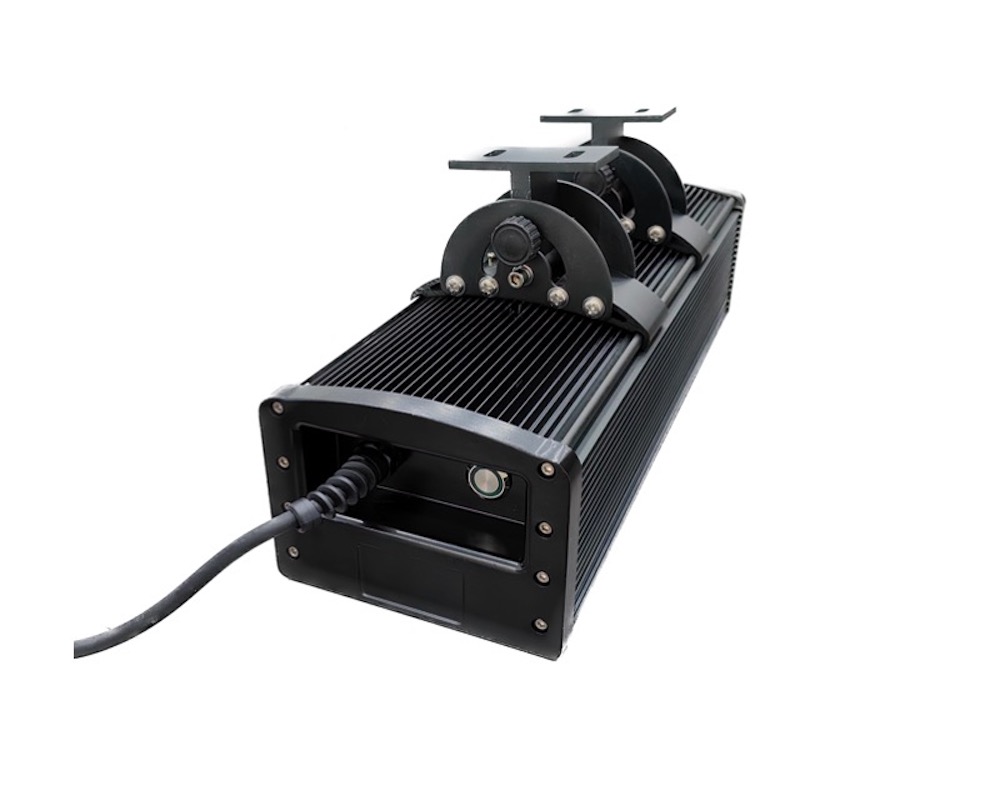

LUYOR-3124 Overhead UV LED Lamp

High-intensity ASTM compliant broad-beam flood lamp for overhead nondestructive testing inspections.

LUYOR-3124 Overhead UV LED NDT Lamp is excellent for stationary use in fluorescent detection and fluorescent magnetic particle inspection. With a flexible arm, NDT professionals can easily adjust the angle to meet specific inspection requirements. Equipped with 24 high-performance UV LEDs, LUYOR-3124 provides wide-area, intense, and uniform ultraviolet output.

Product Advantages

24 UV-A LEDs provide a wide area of uniform coverage and stable ultraviolet rays

ASTM compliant, ideal for overhead non-destructive testing

Instant-on operation ensures that each of the UV-A LEDs reaches full intensity quickly

Flexible arm for mounting at specific angles

Easily mountable for overhead inspection or in-line applications

Built-in black UV filter reduces visible wavelength

Long-lasting UV-A lenses eliminate clouding/solarization

Long-life LEDs ensure years of use with minimum maintenance

Durable housing designed for years of use in heavy-duty work environments

More efficient and longer lifetime compared to high-pressure mercury lamps

The fanless design allows cool running and minimum background noise

Technical Data

Light source: 24 UV LEDs

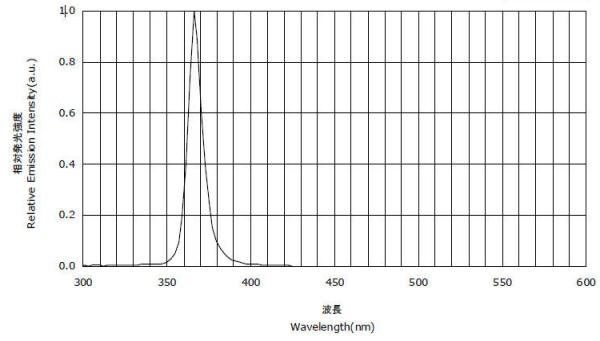

Wavelength: 360-370nm, peak wavelength 365nm

White light measurement: 14.23 lux

LED lifetime: > 50,000 hours

Power supply: 100-240V, 50/60Hz

Cooling: fanless cooling design

Filter: black UV filter

Applications

Non-destructive testing

Fluorescent penetrant inspection

Fluorescent magnetic particle inspection

高铁钢轮、制动盘荧光探伤解决方案：

    在高铁钢轮荧光探伤检测线上左右两侧各安装一台LUYOR-3121荧光探伤灯，在铁轮轮面安装一台LUOYR-3106探伤灯，LUYOR-3121荧光探伤灯有效照射面积高达60x25cm，LUYOR-3121和传统400w探伤灯相比，体积小巧，安装在钢轮检测线上不影响工人目视检查，照射面积完全覆盖钢轮半径区域，确保检测钢轮没有盲区。

高铁车轴荧光探伤解决方案：

LUYOR-3121荧光探伤灯体积小巧，能够方便进行多台组合在一起进行荧光探伤，针对车轴的荧光探伤，用户可以将2台LUYOR-3121荧光探伤灯串联在一起进行使用，2台合并在一起照射面积高达120x25cm，完全满足车轴探伤需求。

美国路阳上海研发中心能够为客户提供完整荧光探伤方案，颗根据客户需求定制特殊的荧光探伤光源，详情请拨打中国地区免费咨询电话：4006-254-365.
