LUYOR-3105 Handheld LED UV NDT Lamp is designed specifically for fluorescent magnetic particle inspection and fluorescent leak detection. The lamp features state-of-the-art LED technology. With five high-energy UV LEDs (360-370nm), it produces 7,000 uw/cm2 high intensity at 38cm and a wide coverage area up to 150mm.
INTRODUCTION
LUYOR-3105 Handheld LED UV NDT lamp is designed specifically for fluorescent magnetic particle inspection and fluorescent leak detection. The lamp features state-of-the-art LED technology. In addition, there is no harmful UVB or UVC. To improve portability and the ease of use, LUYOR-3105 uses 100-240V AC power supply instead of a heavy power box, making it compact and lightweight.
With five high-energy UV LEDs (360-370nm), it produces 7,000 uw/cm2 high intensity at 38cm and a wide coverage area up to 150mm.

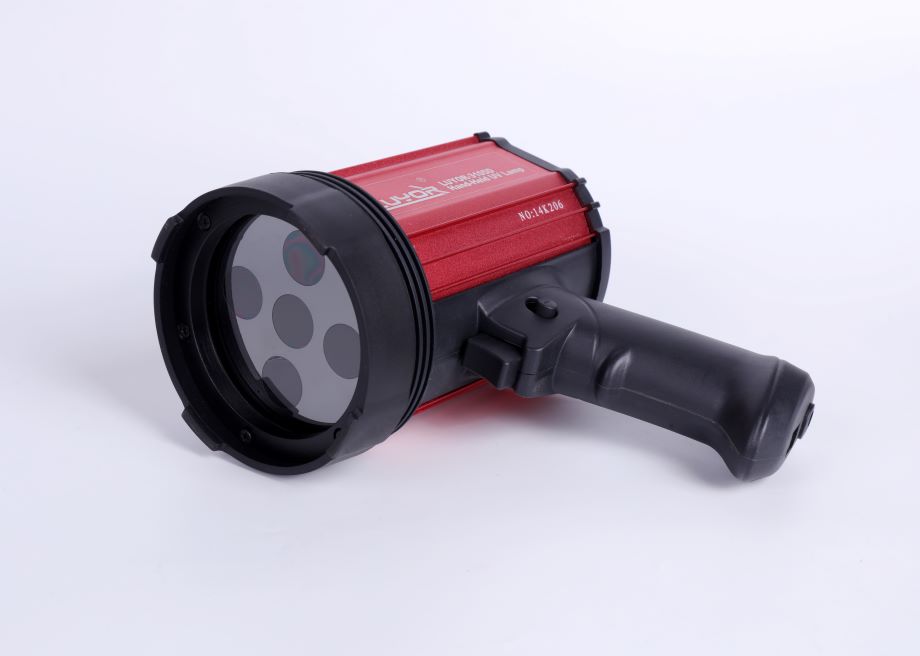

Figure 1: LUYOR-3105D Handheld High-intensity NDT UV Lamp (powered by 24V battery)
Indications are clearly visible even at the edge of the 10 inch / 25 cm beam, thanks to the high intensity LEDs.
Reduce energy usage by up to 82% over 400W halogen lamps and 45% over mercury-vapor lamps.
Long-lasting LEDs are more reliable and require less maintenance over time.
Fully sealed housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections.
Removes the possibility of operator burns through cool LED technology.
Eliminates hazardous mercury vapor waste disposal for safer working conditions.

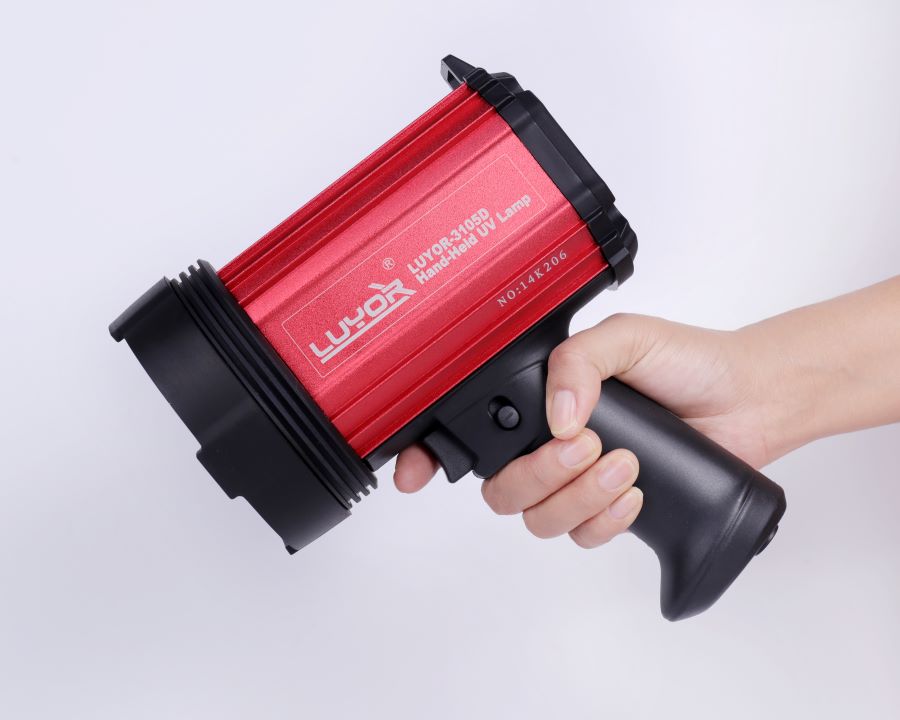

Figure 2: LUYOR-3105D Handheld High-intensity NDT UV Lamp comes standard with black filters that effectively block visible light.
LUYOR-3103/ LUYOR-3103D | LUYOR-3104/ LUYOR-3104D | LUYOR-3105/ LUYOR-3105D | LUYOR-3109P/ LUYOR-3109D | |
| UV Light Source | 3 x 365nm UV LED | 4 x 365nm UV LED | 5 x 365nm UV LED | 9 x 365nm UV LED |
| White Light Source | 1 x 3w white light LED Color temperature 5,700k | 1 x 3w white light LED Color temperature 5,700k | N/A | N/A |
| Power Supply | LUYOR-3103P: 110-240V AC LUYOR-3103D: 24V battery | LUYOR-3104: 110-240V AC LUYOR-3104D: 24V battery | LUYOR-3105: 110-240V AC LUYOR-3105D: 24V battery | LUYOR-3109P: 110-240V AC LUYOR-3109D: 24V battery |
| Light Source Lifespan | > 20,000 hours | > 20,000 hours | > 20,000 hours | > 20,000 hours |
| 38cm Center UV Intensity | 4,500uw/cm2 | 6,000uw/cm2 | 7,000uw/cm2 | 20,000uw/cm2 |
| White LED Brightness | > 3,000 lux | > 3,000 lux | N/A | N/A |
| Visible Light | < l8 Lux | < 18 Lux | < 18 Lux | < 18 Lux |
| Battery Working Time | About 6 hours (LUYOR-3103D) | About 6 hours (LUYOR-3104D) | About 5 hours (LUYOR-3105D) | About 3 hours (LUYOR-3109D) |
| Battery Charging Time | About 6 hours (LUYOR-3103D) | About 6 hours (LUYOR-3104D) | About 6 hours (LUYOR-3105D) | About 6 hours (LUYOR-3109D) |
| Dimension | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm |
| Filters | Black filters | Black filters | Black filters | Black filters |

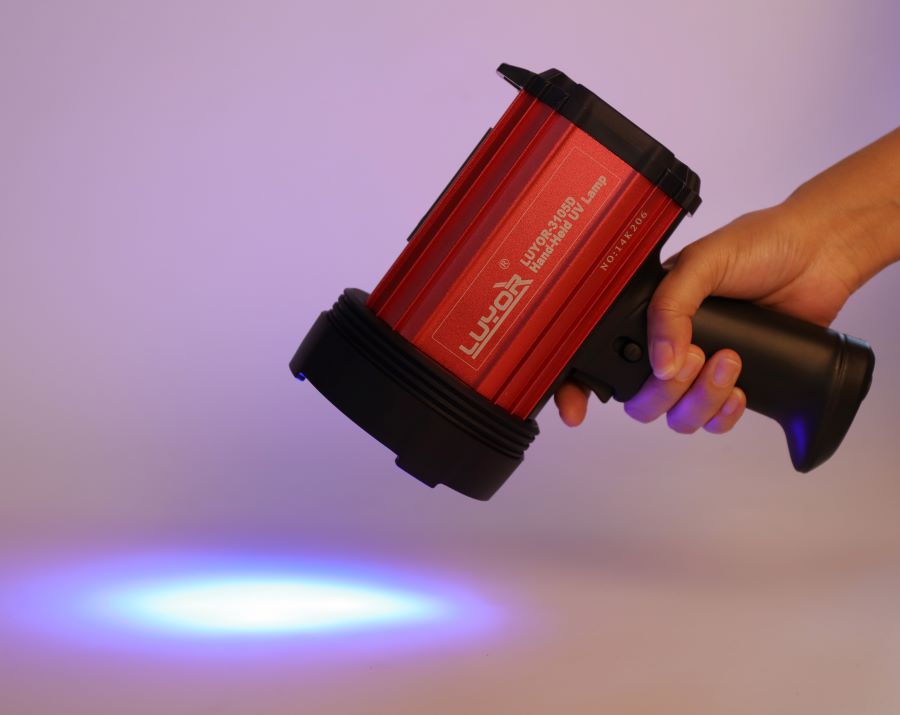

Figure 3: LUYOR-3105D provides high-intensity UV-A illumination.
A lamp
A pair of LUV-10 UV protection glasses
A pair of LUV-30 glasses
A charger (only for LUYOR-3105D)
Instruction manual
Certificate
Warranty card
A storage case
