LUYOR-3109P Handheld NDT UV Lamp is excellent for fluorescent magnetic particle inspection, leak detection, fluorescent detection, and surface inspection. Equipped with nine high-power UV LEDs, LUYOR-3109P has homogenous illumination that produces 20,000 uw/cm2 high intensity at 38cm. Additionally, there is no harmful UV-B, and white light emission is extremely low.
INTRODUCTION
LUYOR-3109P Handheld NDT UV Lamp is excellent for fluorescent magnetic particle inspection, leak detection, fluorescent detection, and surface inspection. Equipped with nine high-power UV LEDs, LUYOR-3109P has homogenous illumination that produces 20,000 uw/cm2 high intensity at 38cm. Additionally, there is no harmful UV-B, and white light emission is extremely low.

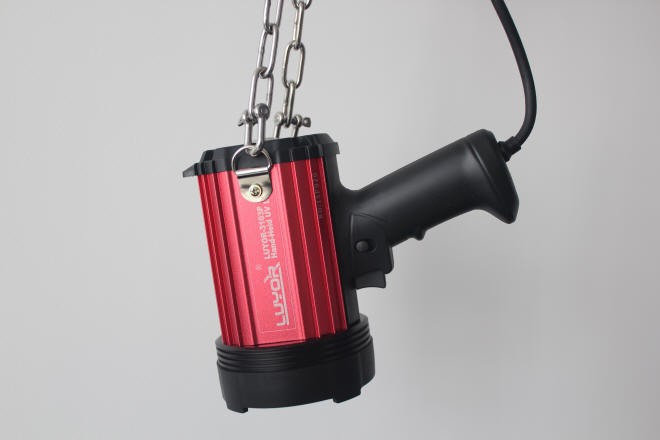

Figure 1: LUYOR-3109P Handheld NDT UV Lamp (powered by 100-240V AC)
9 high-performance UV LEDs for wide area of coverage and a high intensity of 20,000 uw/cm2 at 38cm.
Low visible light emission: less than 18 lux.
Long-lasting LEDs (lifespan > 20,000 hours) are more reliable and require less maintenance over time.
Fully sealed housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections.
Removes the possibility of operator burns through cool LED technology.
Eliminates hazardous mercury vapor waste disposal for safer working conditions.

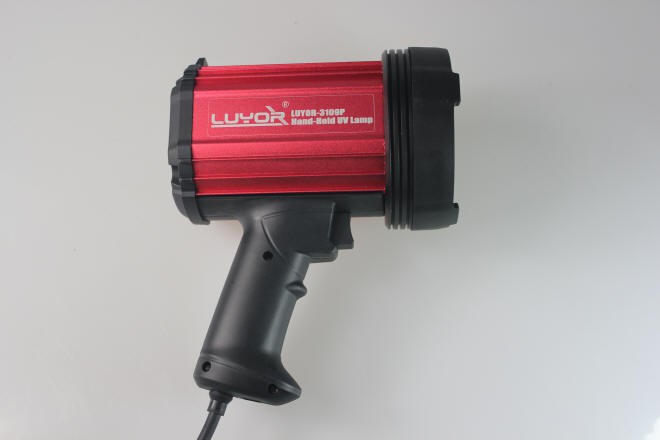

Figure 2: LUYOR-3109P Handheld NDT UV Lamp features 9 high-power LEDs
LUYOR-3103/ LUYOR-3103D | LUYOR-3104/ LUYOR-3104D | LUYOR-3105/ LUYOR-3105D | LUYOR-3109P/ LUYOR-3109D | |
| UV Light Source | 3 x 365nm UV LED | 4 x 365nm UV LED | 5 x 365nm UV LED | 9 x 365nm UV LED |
| White Light Source | 1 x 3w white light LED Color temperature 5,700k | 1 x 3w white light LED Color temperature 5,700k | N/A | N/A |
| Power Supply | LUYOR-3103P: 110-240V AC LUYOR-3103D: 24V battery | LUYOR-3104: 110-240V AC LUYOR-3104D: 24V battery | LUYOR-3105: 110-240V AC LUYOR-3105D: 24V battery | LUYOR-3109P: 110-240V AC LUYOR-3109D: 24V battery |
| Light Source Lifespan | > 20,000 hours | > 20,000 hours | > 20,000 hours | > 20,000 hours |
| 38cm Center UV Intensity | 4,500uw/cm2 | 6,000uw/cm2 | 7,000uw/cm2 | 20,000uw/cm2 |
| White LED Brightness | > 3,000 lux | > 3,000 lux | N/A | N/A |
| Visible Light | < l8 Lux | < 18 Lux | < 18 Lux | < 18 Lux |
| Battery Working Time | About 6 hours (LUYOR-3103D) | About 6 hours (LUYOR-3104D) | About 5 hours (LUYOR-3105D) | About 3 hours (LUYOR-3109D) |
| Battery Charging Time | About 6 hours (LUYOR-3103D) | About 6 hours (LUYOR-3104D) | About 6 hours (LUYOR-3105D) | About 6 hours (LUYOR-3109D) |
| Dimension | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm | Length 15cm Light head diameter 11cm |
| Filters | Black filters | Black filters | Black filters | Black filters |
Figure 3: Power button and lock button.
Easy to control. Instant-on operation.
A lamp
A pair of LUV-10 UV protection glasses
A pair of LUV-30 glasses
A charger (only for LUYOR-3109D)
Instruction manual
Certificate
Warranty card
A storage case
Figure 3: The standard package of LUYOR-3109P.
