Fluorescent Dye LUYOR-6100

LUYOR-6100 Fluorescent Dye works well for synthetic and petroleum-based fluid systems. It can be used for leak detection of gasoline, diesel engines, hydraulic systems, transmission systems, steering systems, and industrial pipelines.


Fluorescent Dye LUYOR-6100

INTRODUCTION

LUYOR-6100 Fluorescent Dye for Leak Detection

LUYOR-6100 Fluorescent Dye works well for synthetic and petroleum-based fluid systems. It can be used for leak detection of gasoline, diesel engines, hydraulic systems, transmission systems, steering systems, and industrial pipelines.

Figure 1: LUYOR-6100 Fluorescent Dye for Leak Detection

LUYOR-6100 Fluorescent Dye for Leak Detection

LUYOR-6100 Fluorescent Dye Applications

Engine lubrication system: cars, heavy trucks, trains, etc. (ideal for both synthetic oil and mineral oil)

Hydraulic oil system: mineral oil, synthetic oil, and various biodegradable oils

Fuel system: diesel and other fuel oils

Agricultural equipment: tractors, agricultural loaders, etc.

Construction engineering equipment: forklifts, loaders, cranes, excavators, etc.

Gearbox: manual gearbox, automatic gearbox, etc.

LUYOR-6100 Fluorescent Dye Operation Guide

  1. Inject the LUYOR-6100 into the fluid system and start the system circulation. The fluorescent leak detection dye will quickly dissolve and penetrate to all leaking parts of the system. This process takes about 5-10 minutes (depending on the oil and temperature).

  2. Use a high-intensity black light to irradiate the detection area. The leakage points will show strong yellow-white fluorescence, which is clearly visible and can be easily distinguished from the natural green fluorescence of oil. The fluorescence is only visible when illuminated by UV light. As the fluorescence of different oils varies, the dosage of LUYOR-6100 depends on the oil.

Recommended Amount

Hydraulic transmission fluid: 500 to 2000 ppm

Automobile engine oil: 500 ppm

Diesel engine oil: 700 to 2000 ppm

Fuel: 700ppm

LUYOR-6100 Fluorescent Dye Configurations

ModelAmountPackage
LUYOR-6100-0003030mlPlastic bottle
LUYOR-6100-00100100mlPlastic bottle
LUYOR-6100-00500500mlPlastic bottle
LUYOR-6100-1800018LIron drum

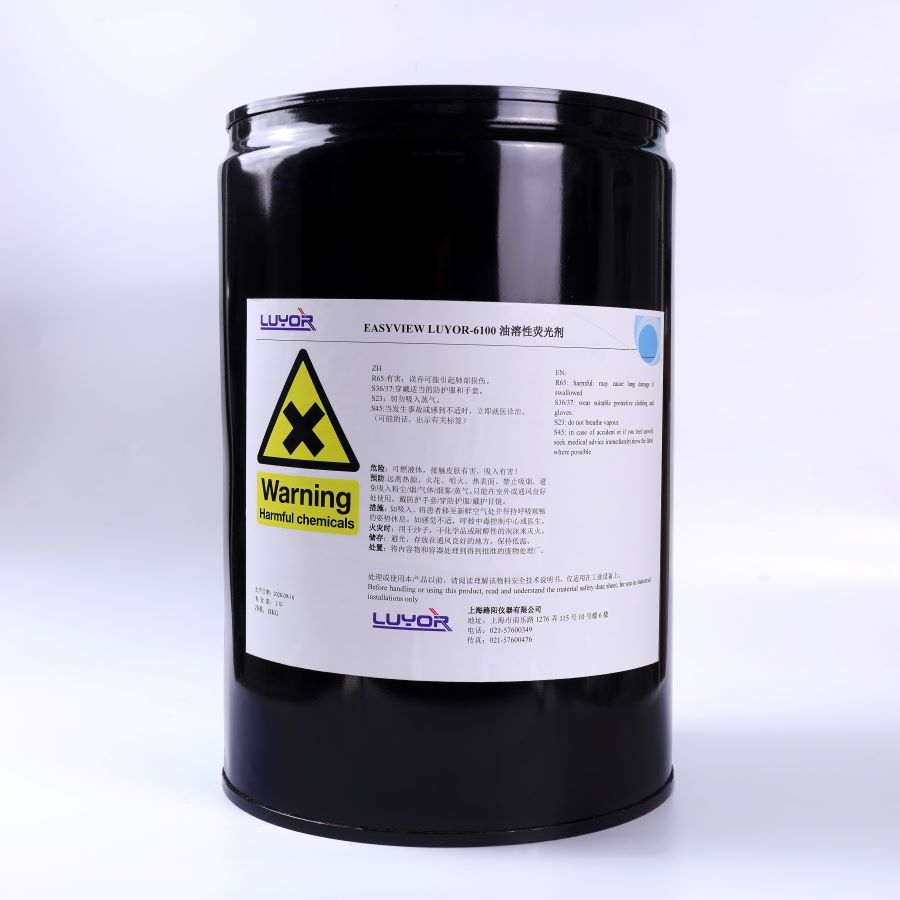

Figure 2: LUYOR-6100-18000 Fluorescent Dye


LUYOR-6100 Fluorescent Dye Chemical Properties

Ideal wavelength of leak detection lamps365nm
Usage per liter0.5-2.5ml
Compatibility with sealing material-concentrated dyesFluorinated rubber, PTFE, perfluoro rubber
Compatibility with sealing material-dyes diluted by oilNitro, butyl synthetic rubber
Solubility (petroleum products)Completely soluble
Solubility (water)Insoluble
Density (20 Celsius)0.91
Flash point (ASTM D-3278)>85 Celsius (185 Fahrenheit)
Maximum excitation value (n-hexane solvent)494+5nm
Maximum emission value (n-hexane solvent)535+5nm
