Fluorescent Dye LUYOR-6200

LUYOR-6200 Water-Based Fluorescent Dye for Leak Detection

LUYOR-6200 Water-Based Fluorescent Dye for Leak Detection is excellent for leak detection in all water system, including static or circulating systems such as boilers, heaters, pumps, sprinkler systems, storage tanks, pipes, and related connections. After adding LUYOR-6200/6300, the leakage points will emit bright fluorescence under high-intensity UV light and become easily detectable. Typical applications include flow testing, inspection of invisible marks, welds, seals, etc. LUYOR-6200/6300 Water-Based Fluorescent Dye is economical and affordable. The recommended dilution ratio is 1000:1~500:1.

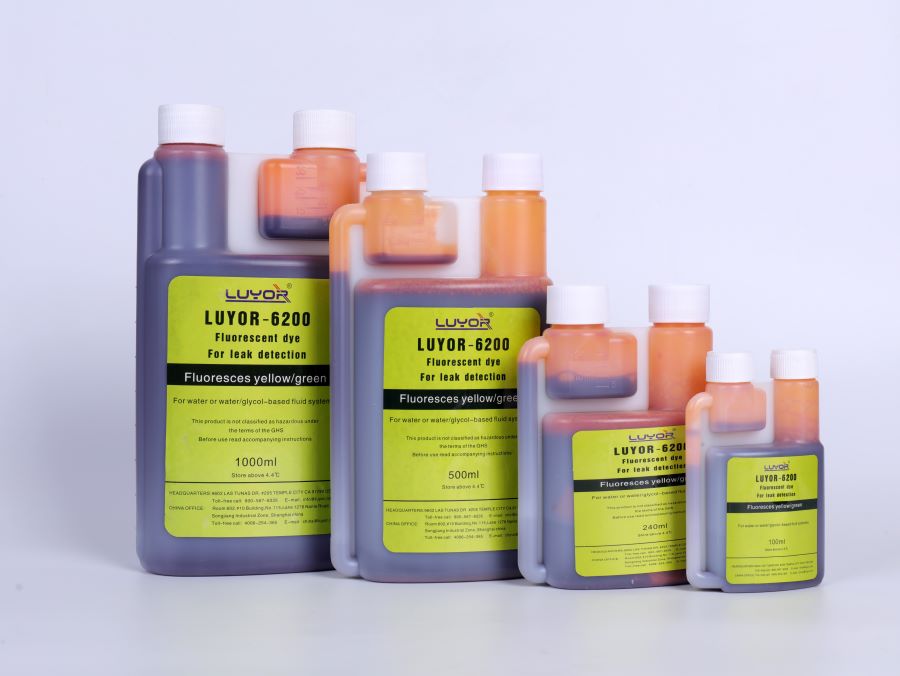

Figure 1: LUYOR-6200 Water-Based Fluorescent Dye for Leak Detection

LUYOR-6200 Water-Based Fluorescent Dye Features

Efficient: emits bright fluorescence under UV light, making leakage points clearly visible.

Versatile: ideal for all water system, including static or circulating systems.

Reliable: able to detect small leaks that were previously undetectable.

Quick and easy to use with a simple three-step procedure.

Economical: recommended ratio 1000:1~500:1

OEM approved, used by major global manufacturers.

LUYOR-6200 emits green fluorescence under UV light.

LUYOR-6200 Water-Based Fluorescent Dye Applications

Add to water sources or suspected pollution sources for water flow tracking and pollution detection.

Detect sewer pipeline penetration; locate sewer pipelines; check illegal connections; identify indirect cross-connections; check drainage pipes, sewer pipes and drainage ditches to ensure that the water is diverted to the correct channel and to analyze operating time.

Leak detection of closed systems and cooling systems in steel companies.

Research on penetration and industrial water pipeline systems.

Detect the water pump system process of automobiles.

Detect sewer leaks that may enter ponds, lakes, reservoirs, etc.

LUYOR-6200 Water-Based Fluorescent Dye Operation Guide

1. Add LUYOR-6200 to the system

2. Mix LUYOR-6200 with fluids in the system

3. Illuminate the system with high-intensity UV lamps. Leakages points will show bright fluorescence.

LUYOR-6200 Water-Based Fluorescent Dye Configurations
