LUYOR-3103 NDT UV Lamp

The LUYOR-3103 is a hand-held, portable LED UV lamp with three UV LEDs and a white light LED. It is excellent for non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. Designed with broad-beam profile for in-line and hand-held use, the LUYOR-3103 will decrease inspection time by improving indication visibility with 4,500 µW/cm² high intensity UV-A illumination and the widest coverage area in its class.


LUYOR-3103 NDT UV Lamp

INTRODUCTION

LUYOR-3103 High-Intensity, Dual-Light LED UV Lamp for NDT

The LUYOR-3103 is a hand-held, portable LED UV lamp with three UV LEDs and a white light LED. It is excellent for non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

Designed with broad-beam profile for in-line and hand-held use, the LUYOR-3103 will decrease inspection time by improving indication visibility with 4,500 µW/cm² high intensity UV-A illumination and the widest coverage area in its class.

To improve NDT inspection flexibility, the LUYOR-3103 has easy-on visible light LEDs for visible flaw location, eliminating the need for a separate flashlight. The white light LEDs provide a large, concentrated flood of visible light.

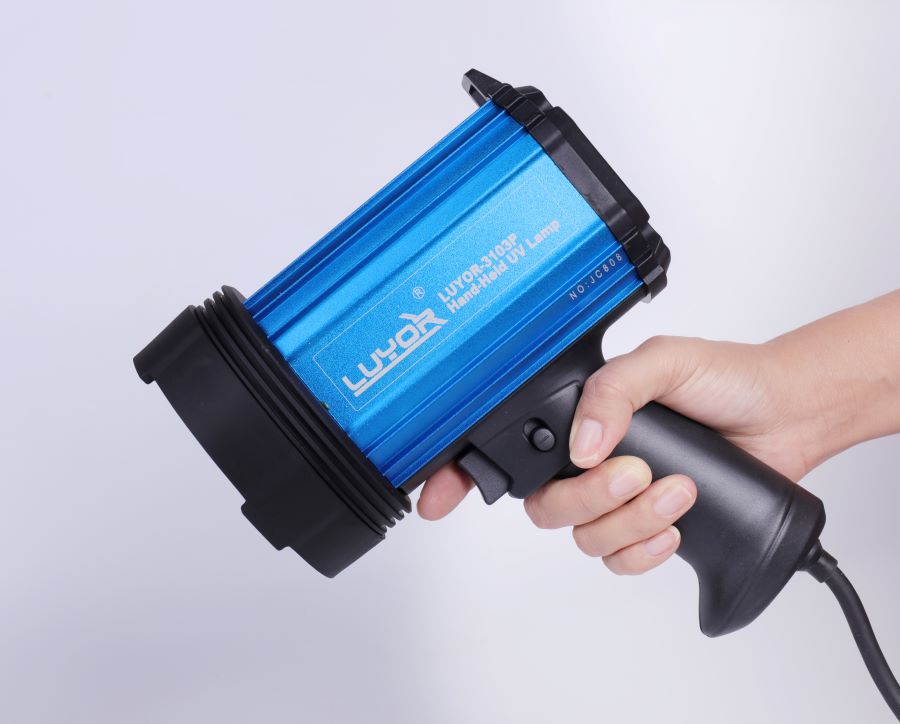

Figure 1: LUYOR-3103 Dual-Light LED UV Lamp for NDT (powered by 110-240V AC power supply)

LUYOR-3103 NDT UV Lamp

Product Features

Indications are clearly visible even at the edge of the 10 inch / 25 cm beam, thanks to the high intensity LEDs.

Eliminates the need for a separate flashlight for visible spot checking with a built-in LED white light function.

See clearly without fumbling in the dark or having to turn on an overhead light with the 16 inch / 41 cm beam of bright white light.

Reduce energy usage by up to 82% over 400W halogen lamps and 45% over mercury-vapor lamps.

Long-lasting LEDs are more reliable and require less maintenance over time.

Fully sealed housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections.

Removes the possibility of operator burns through cool LED technology.

Eliminates hazardous mercury vapor waste disposal for safer working conditions.

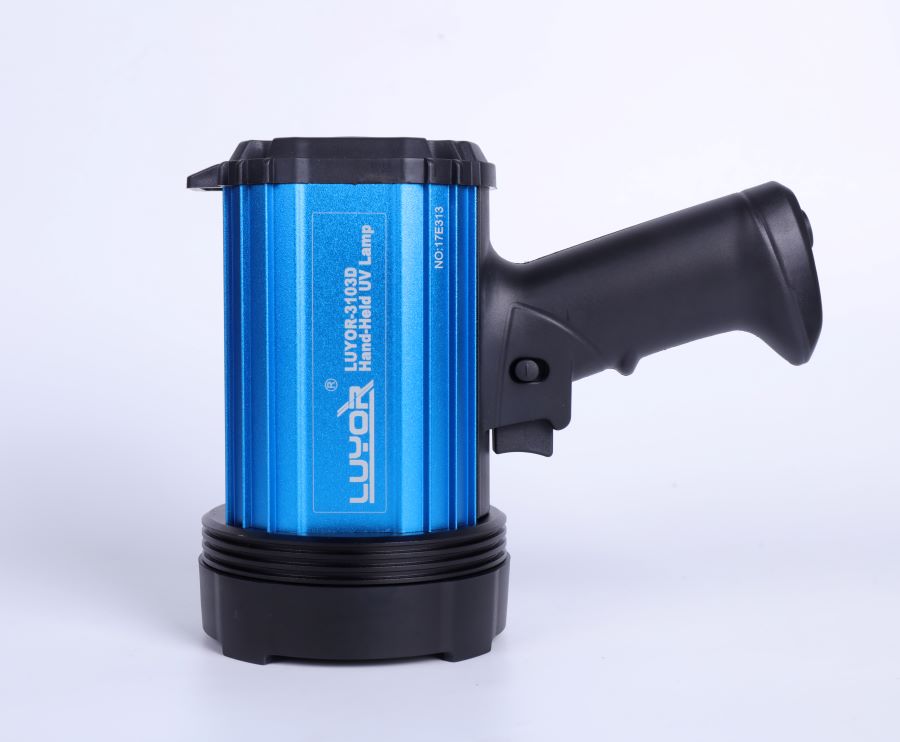

Figure 2: LUYOR-3103D Dual-Light LED UV Lamp for NDT (powered by 24V battery)

LUYOR-3103 NDT UV Lamp

Technical Data


LUYOR-3103/

LUYOR-3103D

LUYOR-3104/

LUYOR-3104D

LUYOR-3105/

LUYOR-3105D

LUYOR-3109P/

LUYOR-3109D

UV Light Source3 x 365nm UV LED4 x 365nm UV LED5 x 365nm UV LED9 x 365nm UV LED
White Light Source

1 x 3w white light LED

Color temperature 5,700k

1 x 3w white light LED

Color temperature 5,700k

N/AN/A
Power Supply

LUYOR-3103P: 110-240V AC

LUYOR-3103D: 24V battery

LUYOR-3104: 110-240V AC

LUYOR-3104D: 24V battery

LUYOR-3105: 110-240V AC

LUYOR-3105D: 24V battery

LUYOR-3109P: 110-240V AC

LUYOR-3109D: 24V battery

Light Source Lifespan> 20,000 hours> 20,000 hours> 20,000 hours> 20,000 hours
38cm Center UV Intensity4,500uw/cm26,000uw/cm27,000uw/cm220,000uw/cm2
White LED Brightness> 3,000 lux> 3,000 luxN/AN/A
Visible Light< l8 Lux< 18 Lux< 18 Lux< 18 Lux
Battery Working Time

About 6 hours

(LUYOR-3103D)

About 6 hours

(LUYOR-3104D)

About 5 hours

(LUYOR-3105D)

About 3 hours

(LUYOR-3109D)

Battery Charging Time

About 6 hours

(LUYOR-3103D)

About 6 hours

(LUYOR-3104D)

About 6 hours

(LUYOR-3105D)

About 6 hours

(LUYOR-3109D)

Dimension

Length 15cm

Light head diameter 11cm

Length 15cm

Light head diameter 11cm

Length 15cm

Light head diameter 11cm

Length 15cm

Light head diameter 11cm

Filters

Black filters

Black filters

Black filters

Black filters

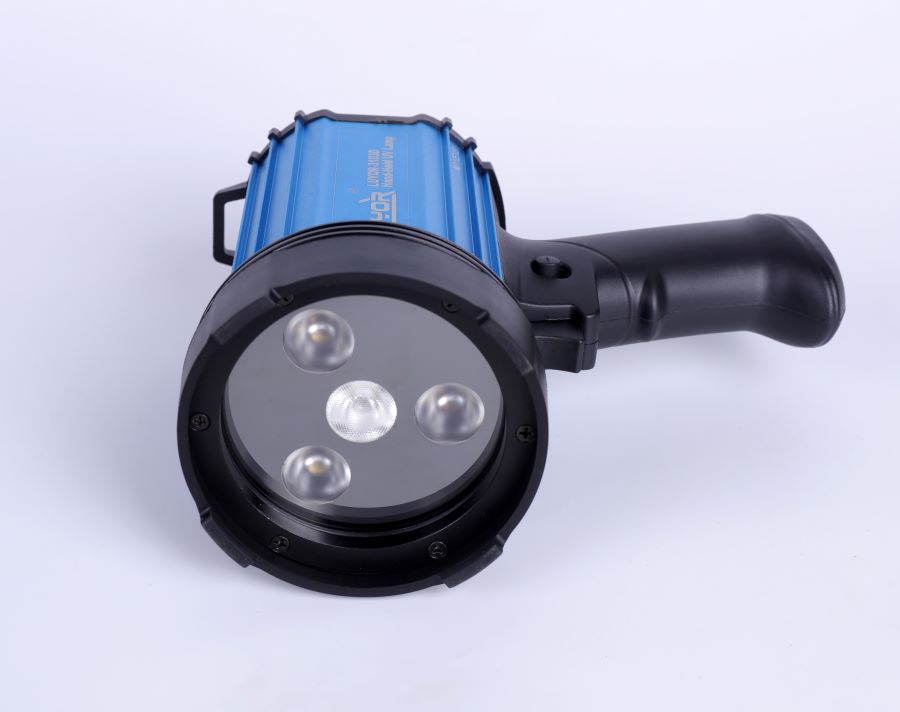

Figure 3: The LUYOR-3103/3103D comes standard with black filters. If you want transparent filters, please make a note when making the order. Below is the LUYOR-3103D with transparent filters.

LUYOR-3103 NDT UV Lamp

What's Included

  1. A lamp

  2. A pair of LUV-10 UV protection glasses

  3. A pair of LUV-30 glasses

  4. A charger (only for LUYOR-3103D)

  5. Instruction manual

  6. Certificate

  7. Warranty card

  8. A storage case

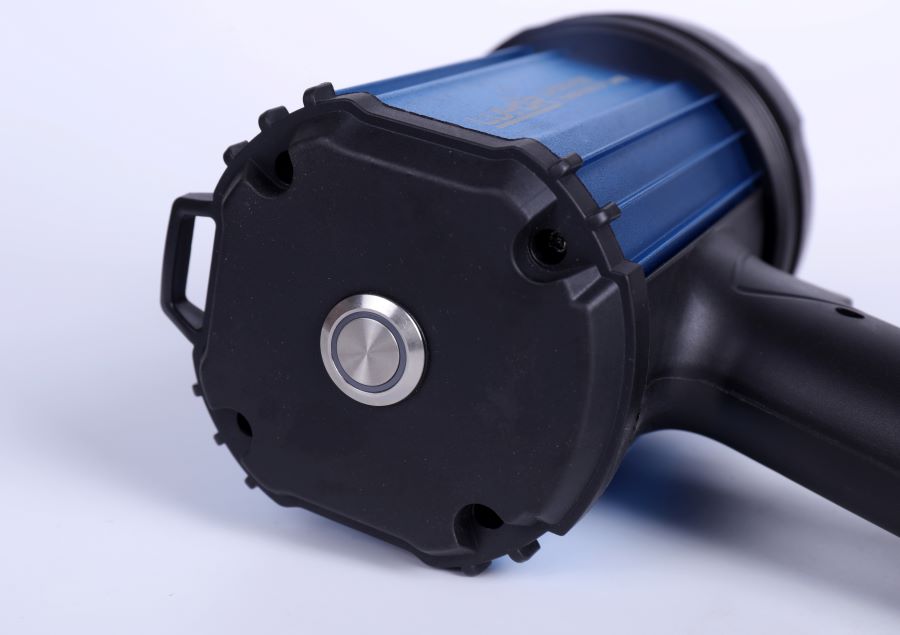

Figure 4: Power button at the back.

LUYOR-3103 NDT UV Lamp

Figure 5: LUYOR-3103D powered by 24V battery.

LUYOR-3103 NDT UV Lamp
