LUYOR-3115 Overhead NDT Lamp

LUYOR-3115 Overhead UV LED NDT Lamp

LUYOR-3115 Overhead UV LED NDT Lamp is excellent for stationary use in fluorescent detection and fluorescent magnetic particle inspection. With a flexible arm, NDT professionals can easily adjust angle to meet specific inspection requirements. The fanless design allows cool running and minimum background noise. Equipped with 15 high-performance UV LEDs, LUYOR-3115 provides large area of coverage and high intensity.

LUYOR-3115 Overhead UV LED NDT Lamp Applications

LUYOR-3115 is a versatile lamp which is ideal for fluorescent detection and fluorescent magnetic particle inspection in the NDT industry.

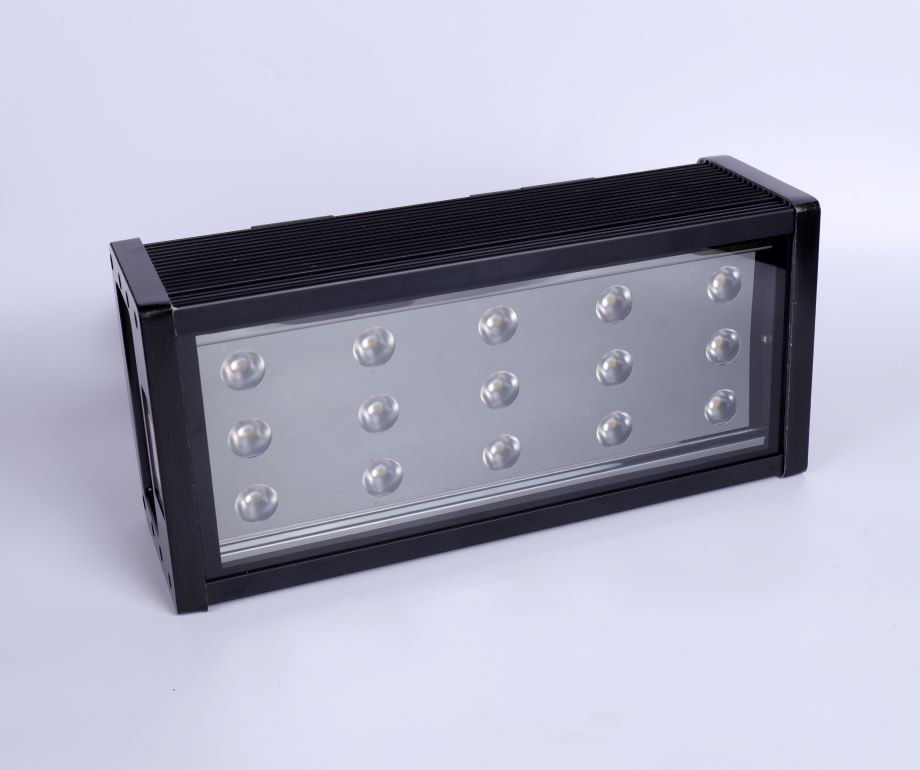

Figure 1: LUYOR-3115 Overhead UV LED NDT Lamp features 15 high-power UV LEDs

LUYOR-3115 Overhead UV LED NDT Lamp Features

Easily mountable for overhead application

Flexible arm for mounting at specific angles

Cool running without a fan

High intensity: 9,500 uw/cm² at 38cm

Risk class according to EM06 (DGZfP): 2

IP65 rating: dust-proof and water resistant

Power: 110-230V/ 50Hz

Figure 2: LUYOR-3115 Overhead UV LED NDT Lamp

Technical Data

Model	No.of LEDs	Illuminated area at 38cm	Panel Dimension
LUYOR-3103	3	160x140mm

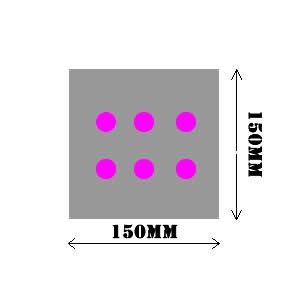

LUYOR-3106	6	250x250mm

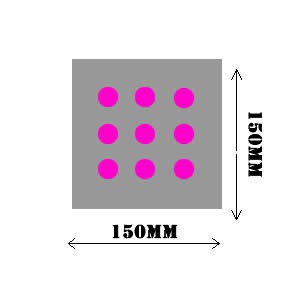

LUYOR-3109	9	300x300mm

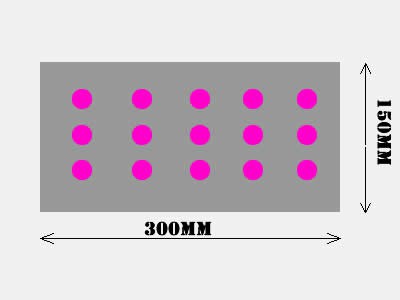

LUYOR-3115	15	250x500mm

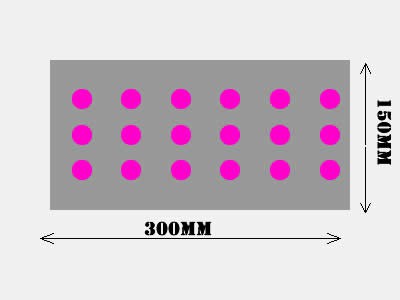

LUYOR-3118	18	300x500mm

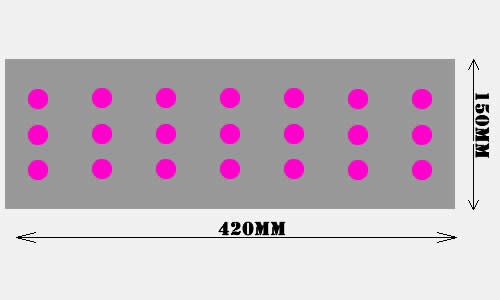

LUYOR-3121	21	250x650mm

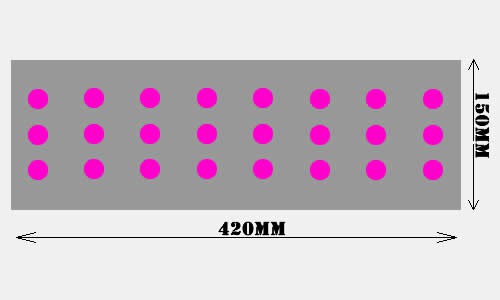

LUYOR-3124	24	300x650mm
