Panel Tachometer LUYOR-910

LUYOR-910 Panel Tachometer is a powerful programmable tachometer, which meets NIST standards. LUYOR-910 can be connected with LUYOR rotational speed sensor or any other equipment that outputs standard TTL signal. LUYOR-910 can output TTL signal, voltage or current analog signal output or 485 output.


Panel Tachometer LUYOR-910

INTRODUCTION

Panel Tachometer LUYOR-910

Panel Tachometer  LUYOR-910  is a powerful programmable tachometer, which meets NIST standards. LUYOR-910 can be connected with LUYOR rotational speed sensor or any other equipment that outputs standard TTL signal. LUYOR-910 can output TTL signal, voltage or current analog signal output or 485 output.

LUYOR-910 Panel-Type Tachometer is a panel-mounted split-type tachometer, also known as a dial-type tachometer. The speed signal is transmitted to the LUYOR-910 Tachometer through the laser speed sensor or the photoelectric speed sensor. LUYOR-910 Tachometer will display the speed on the screen. LUYOR-910 Tachometer can also control the output of the relay by setting the alarm value. LUYOR-910 can also convert the speed signal into analog signals of 0-5v, 0-10v, 0-20mA, 4-20mA and other voltage or current signals, and output them to various recorders or PLC control equipment. You can also choose the 485 communication interface to digitally transmit the measured speed signal.

Figure 1: LUYOR-910 Panel Tachometer

LUYOR-910 Panel-Type Tachometer

Panel Tachometer LUYOR-910

Range5-999,990RPM
PrecisionStandard: ±0.001% reading or 1 (last digit)
Quick update: ±0.006% reading or 1 (last digit)
Resolution Ratio0.001RPM-10 RPM
Alarm SettingTwo alarm relays configurable: high or low, latching or non-latching, hysteresis and editable low limit latching
Alarm OutputTwo C-type alarm relays, rated 1 Amp and 230V AC
Communication ConnectionOptional: 485 communication
Scale Factor0.0001-9999.9
Accumulate/Count1-99,999
InputLUYOR Sensor or TTL input or 1.5-50V AC
Analog Output

Voltage: 0-5V DC, 5mA

Pulse signal conversionCompatible with 0-5V TTL
Display5-digit, LED display (14 mm height)
Update frequencyTwice per second (2 Hz or 120 RPM above)
Dimension

Panel: 91 x 44 mm

Depth: 114 mm

Input

Standard: 100-240V AC, 50/60 Hz

Optional: 12 or 24V DC

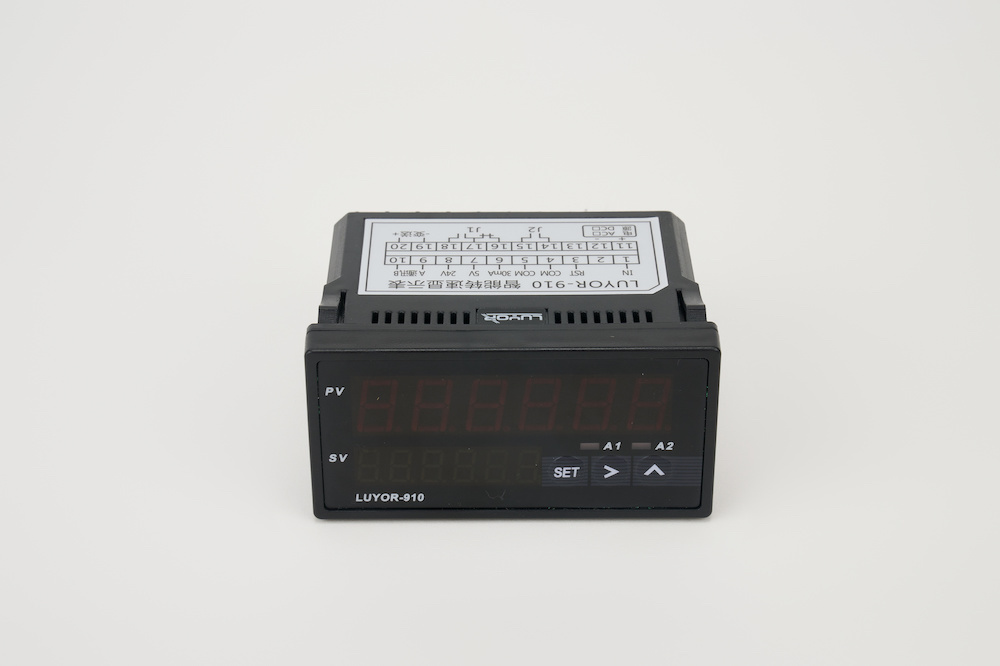

Figure 2: LUYOR-910 Panel-Type Tachometer

LUYOR-910 Panel-Type Tachometer

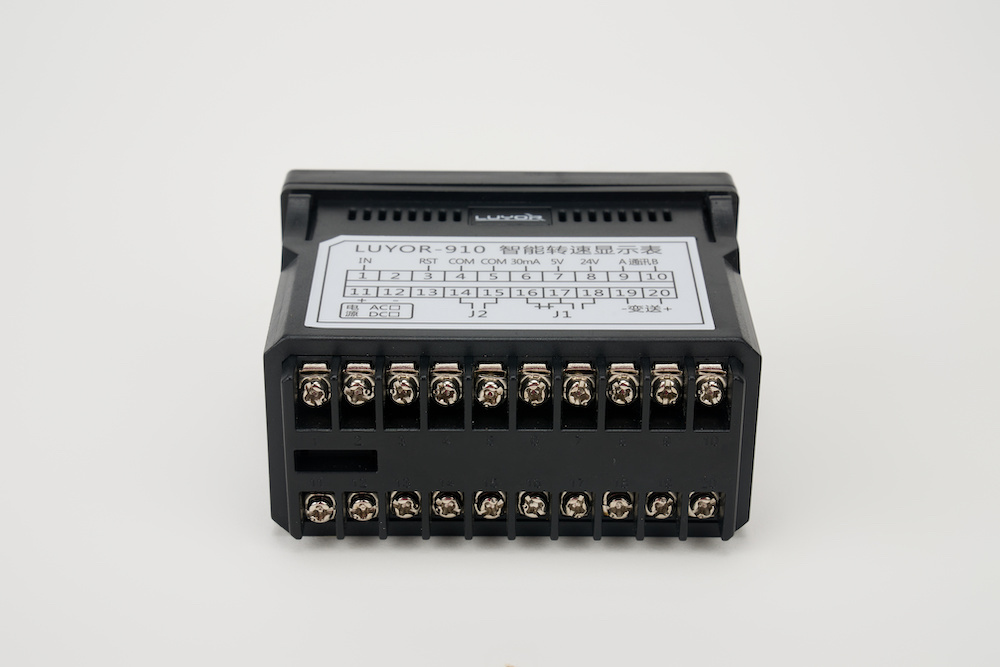

Figure 3: The rear of LUYOR-910 Panel-Type Tachometer

LUYOR-910 Panel-Type Tachometer
