LUYOR-2130L Black Light

LUYOR-2130L Black Light Flashlight is equipped with 3 high-power 365nm UVA LEDs and provides a wide coverage area. Powered by a high-capacity lithium battery, LUYOR-2130L can work continuously for 2-3 hours. The compact and lightweight design makes it excellent for operation in small spaces. LUYOR-2130L is ideal for fluorescent magnetic particle inspection, leak detection, detecting impurities and defects in oxygen degreasing procedure, and cleaning inspection in pharmaceutical factories.


LUYOR-2130L Black Light

INTRODUCTION

LUYOR-2130L Black Light Flashlight

LUYOR-2130L Black Light Flashlight is equipped with 3 high-power 365nm UVA LEDs and provides a wide coverage area. Powered by a high-capacity lithium battery, LUYOR-2130L can work continuously for 2-3 hours. The compact and lightweight design makes it excellent for operation in small spaces. LUYOR-2130L is ideal for fluorescent magnetic particle inspection, leak detection, detecting impurities and defects in oxygen degreasing procedure, and cleaning inspection in pharmaceutical factories.

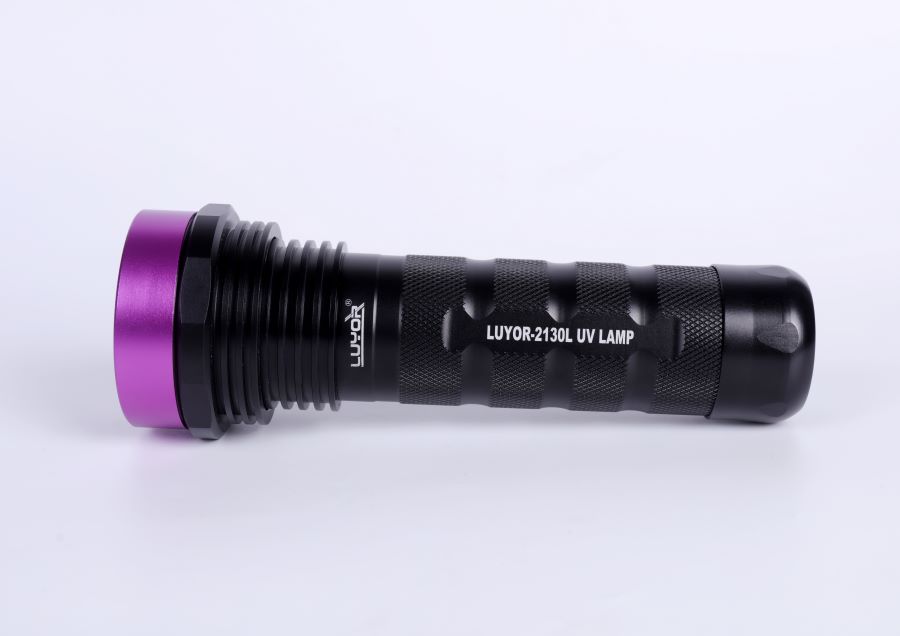

Figure 1: LUYOR-2130L Black Light Flashlight

LUYOR-2130L Black Light Flashlight

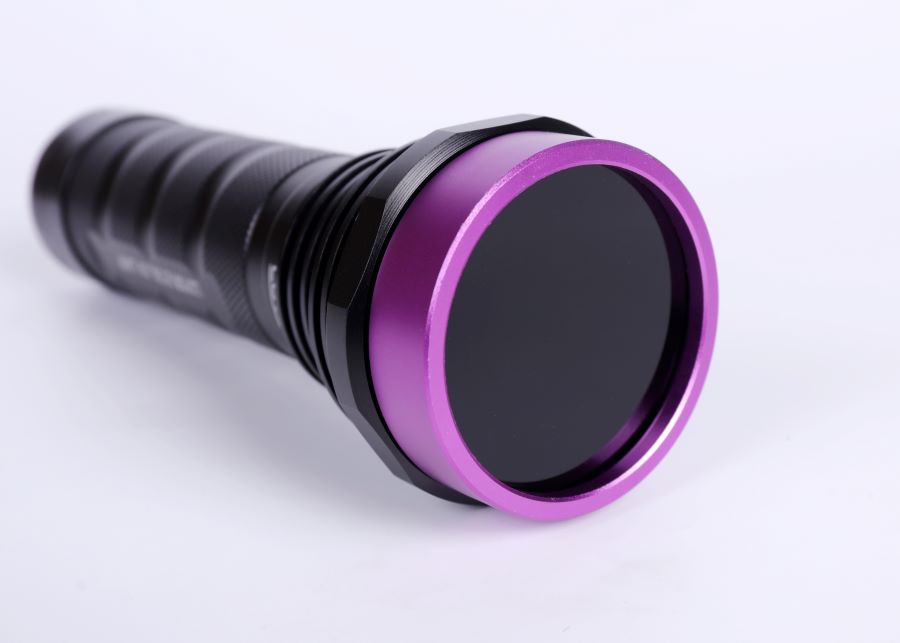

Figure 2: LUYOR-2130L Black Light Flashlight is equipped with an efficient color filter, which is able to block 90% of visible light. Using LUYOR-2130L, you can easily detect weak fluorescence that was previouly hard to see.

LUYOR-2130L Black Light Flashlight

LUYOR-2130L Black Light Flashlight UV Intensity

Distance from light headUV IntensityIlluminated AreaVisible Light Measurement
150mm25,000uw/cm2100mm<15 lux
250mm13,000uw/cm2150mm<10 lux
300mm10,000uw/cm2200mm<8 lux

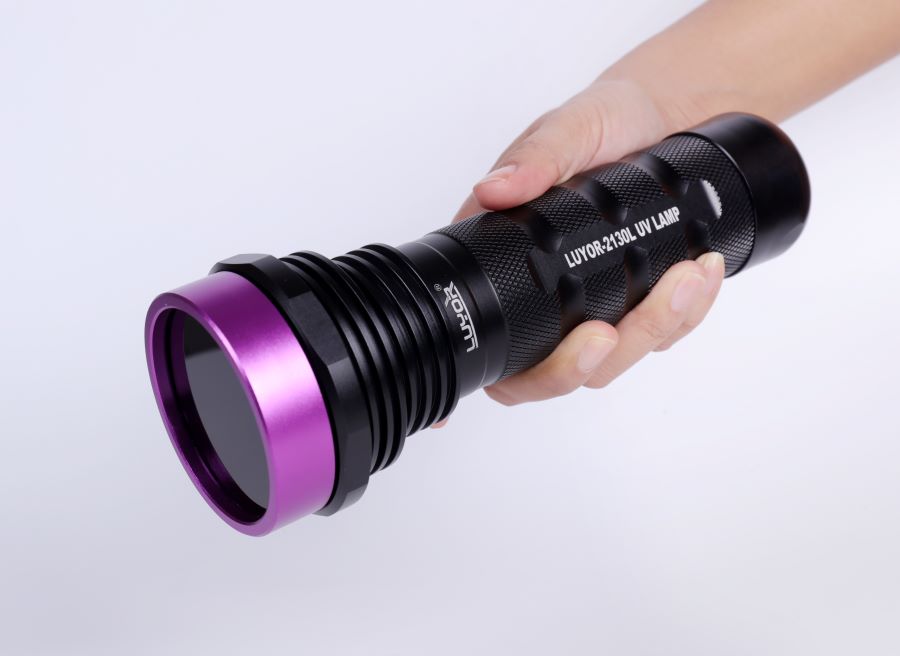

Figure 3: LUYOR-2130L Black Light Flashlight is compact and lightweight. It is specially designed for handheld operation.

LUYOR-2130L Black Light Flashlight

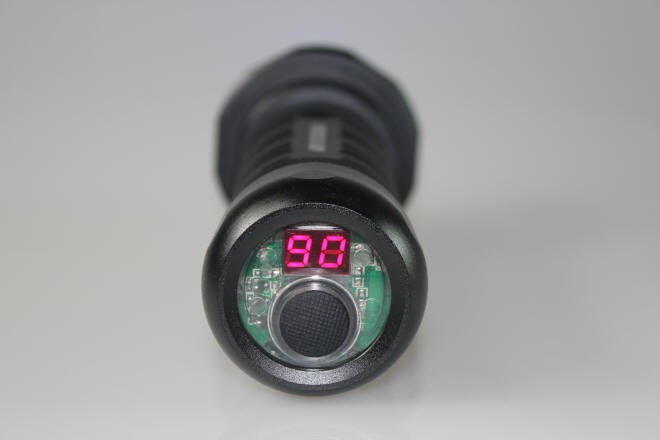

Figure 4: Battery indicator and power button at the tail of LUYOR-2130L flashlight

LUYOR-2130L Black Light Flashlight

LUYOR-2130L Black Light Flashlight Technical Data

3 high-power UV LEDs

Wavelength: 360-370nm, peak 365nm

Intensity: 10,000 uw/cm2 at 38cm

Illuminated area: 150mm at 38cm

Battery: one 12V lithium battery

Charger: 100-240V, 50/60Hz

Dimension: 210mm, head diameter 70mm, tail diameter 45mm

What's Included

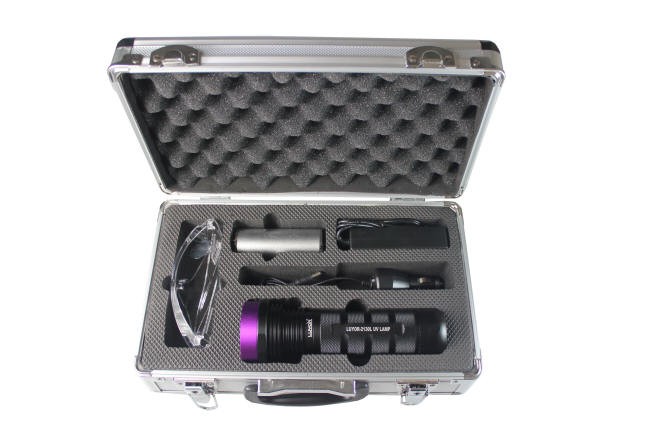

Standard package of LUYOR-2130L

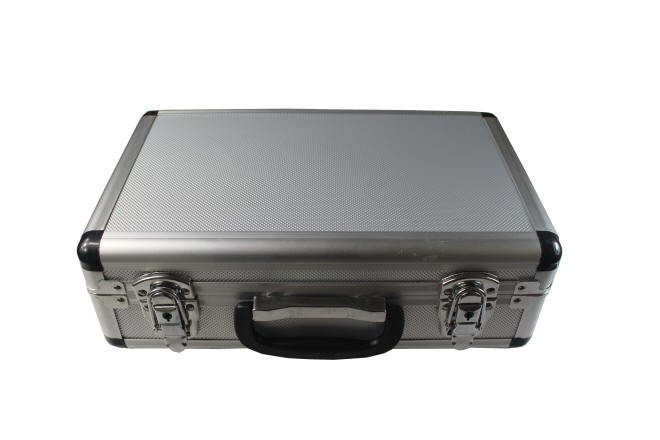

Storage case of LUYOR-2130L

Storage case of LUYOR-2130L

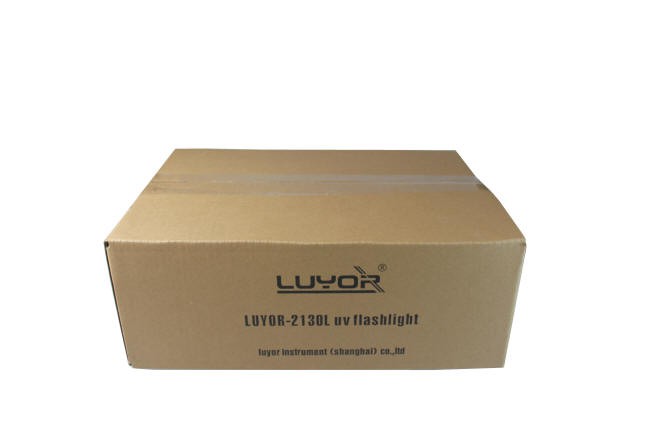

Package of LUYOR-2130L

Package of LUYOR-2130L
