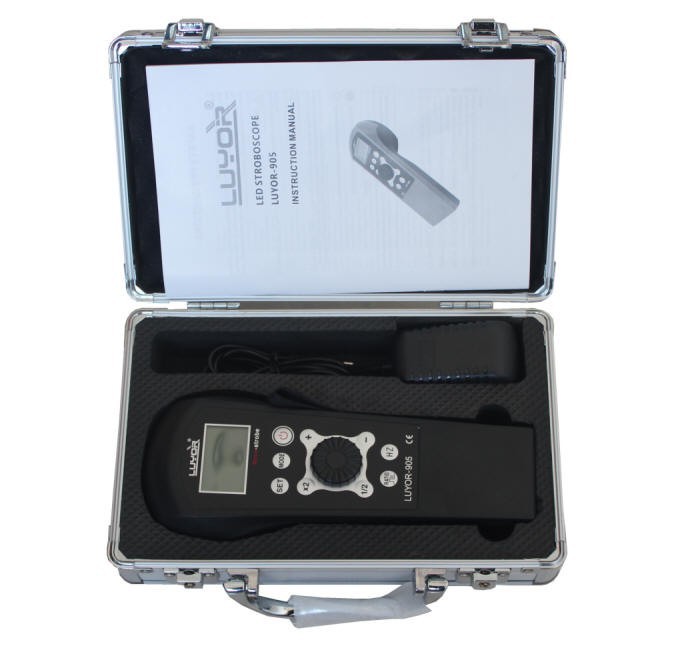

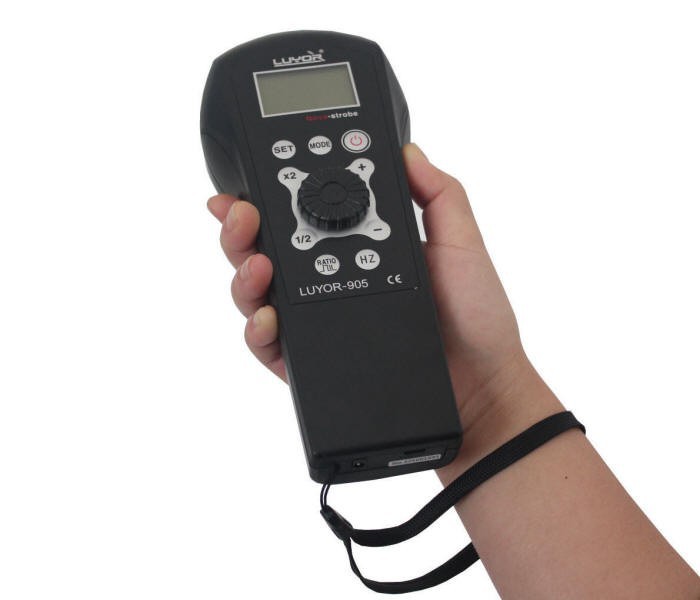

LUYOR-905 hand-held LED strobe instrument is the latest ultra-light portable strobe light developed by Luyang Company. LUYOR-905 adopts high-power LED lamp bead with wide measuring range, high brightness, uniform brightness and long service life. LUYOR-905 for any time, any location speed measurement and movement of state observation, lightweight design. You can use the thumb to facilitate the operation, built-in lithium battery, fully charged continuous use of time up to 12 hours. The LUYOR-905 Portable LED Stroboscope is used to measure objects moving at high speeds. When the stroboscope's flash speed is synchronized with the speed of a moving object, we see a relatively stationary state. This principle allows us to clearly observe the movement of gear bite, all kinds of rotor work.

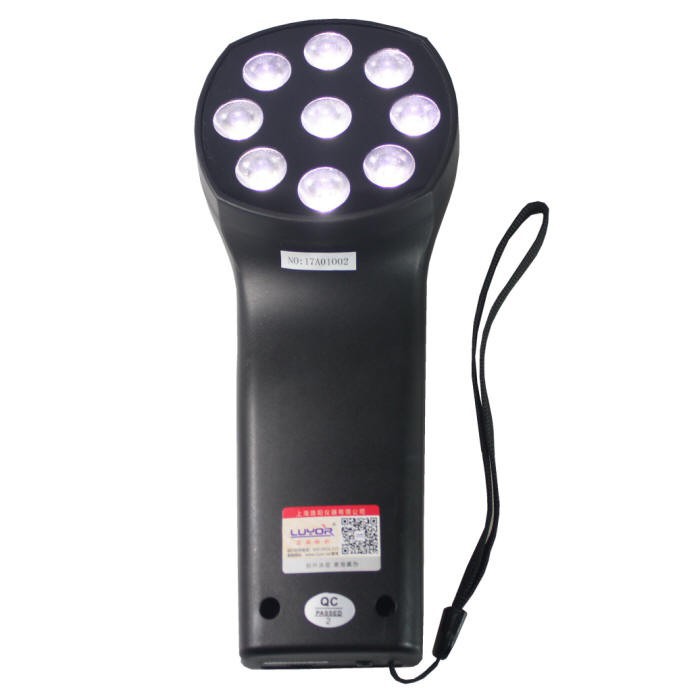

The LUYOR-905 portable LED stroboscope can achieve 60-120000RPM in measuring range to meet the needs of different users. The LED stroboscope equipped with 9 LED tubes not only has a significant improvement in brightness effect but also is very economical Electricity, greatly improving the efficiency of the battery, low heat production, ideal for prolonged use! LUYOR-905 strobe instrument is widely used in packaging and printing industry, testing the printing quality, die-cutting, punching, folding; Spinning and winding machines for the textile industry spindle, wire speed measurement; for the mechanical manufacturing Non-contact speed measurement, detection of vibration amplitude and vibration frequency and machining center tool wear; also used in aircraft manufacturing, automobile manufacturing, cable coding, mining, shipbuilding, steel, chemical, optical, medical and other industries.
Setting accuracy (internal vibration): 0.01% ± 1 digit (at 25 ℃)
Set the resolution (internal vibration): 60 .0 ~ 12,000 FPM 0.1 FPM
12000 ~ 120000 FPM 1 FPM
1 ~ 200HZ 0.01 HZ
200.1 ~ 2000 HZ 0.015 HZ
Battery: DC12V 3000mA
Power: about 90W
Size: 203mm * 110mm * 192mm
LED Specifications and Performance: 10W; LED life of 3 to 5 years
Lithium battery specifications and capacity: DC 10.8V; 2000mA

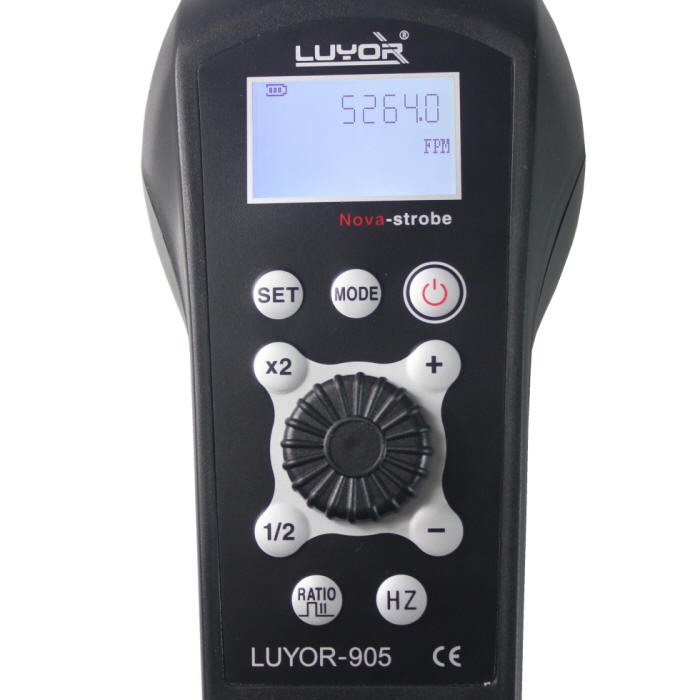

Unit: FPM; HZ (switchable in parameter setting mode)
Measuring range: 60 ~ 120,000FPM
X2, 1/2: doubled, half doubled
Displacement functions: PHASE +, PHASE- to change the degree +3 °, -3 °
RATIO key: Adjust the flash firing angle within 0.1 ° ~ 2.5 ° with 0.1 ° each time
External trigger input: Sensor pulse signal is triggered
