Leak Detection Flashlight LUYOR-3170

LUYOR-3170 Leak Detection Flashlight features a high-power 365nm UV LED and a long operation distance up to 5m. It produces uniform illumination and is applicable for most of popular fluorescent dyes, making it excellent for application in automobile industry.


Leak Detection Flashlight LUYOR-3170

INTRODUCTION

LUYOR-3170 Leak Detection Flashlight

LUYOR-3170 Leak Detection Flashlight features a high-power 365nm UV LED and a long operation distance up to 5m. It produces uniform illumination and is applicable for most of popular fluorescent dyes, making it excellent for application in automobile industry.

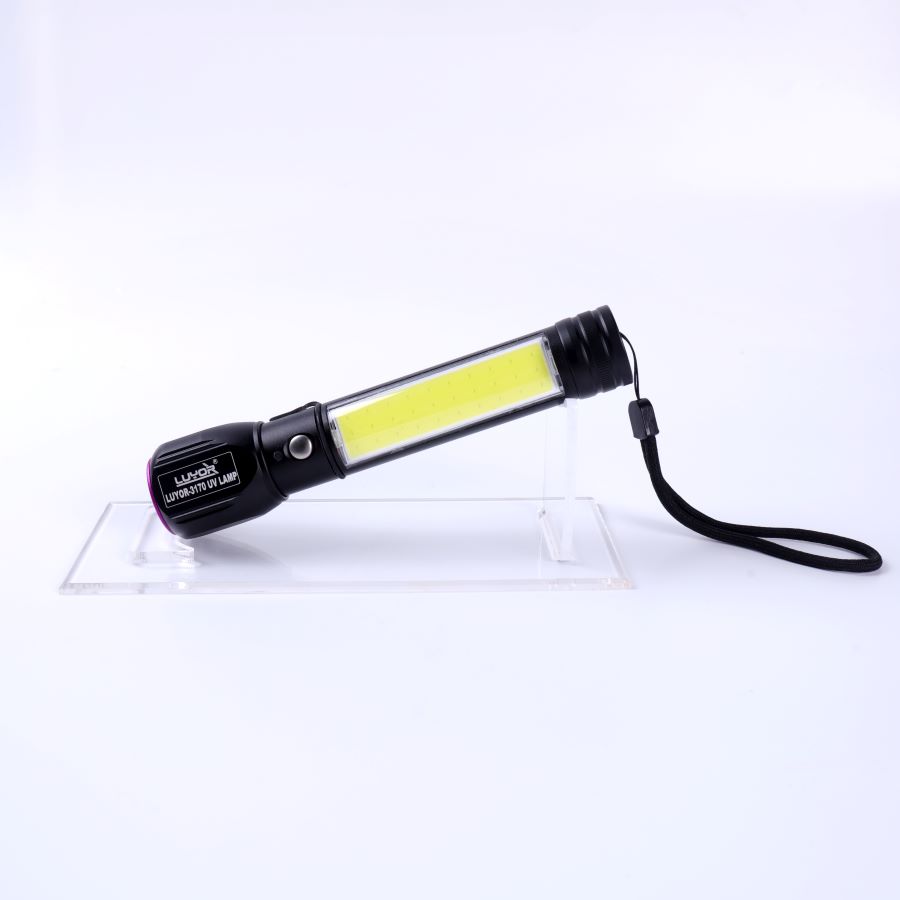

Figure 1: LUYOR-3170 Leak Detection Flashlight offers white light illumination on the side in addition to the UV light.

LUYOR-3170 Leak Detection Flashlight

LUYOR-3170 Leak Detection Flashlight Features

  1. White light illumination on the side is ideal for lighting car engines and the bottom of vehicles. The magnet on the light head allows you to attach the flashlight to the car body and free your hands.

  2. USB charging: charge at any time on the detection vehicles

  3. Battery indicator turns red when the battery is low and turns green when the flashlight is fully charged.

  4. Aluminum alloy case dissipates heat quickly.

  5. Chip-controlled circuit specially design for leak detection. High UV output during the first few minutes of startup allows the user to locate detection spots quickly, and then the current decreases to meet the need for long-time operation.

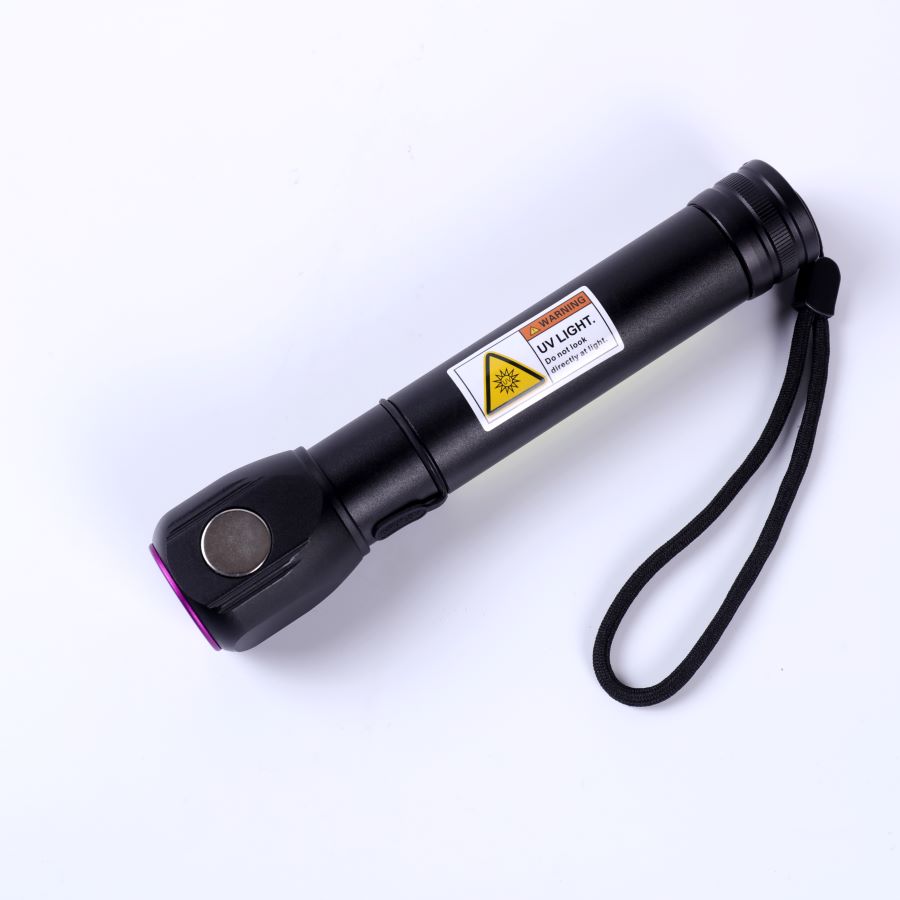

Figure 2: LUYOR-3170 Leak Detection Flashlight has a magnet on the back of light head. You can attach the flashlight to anywhere you want and enjoy hands free operation.

Magnet on the back of LUYOR-3170 light head

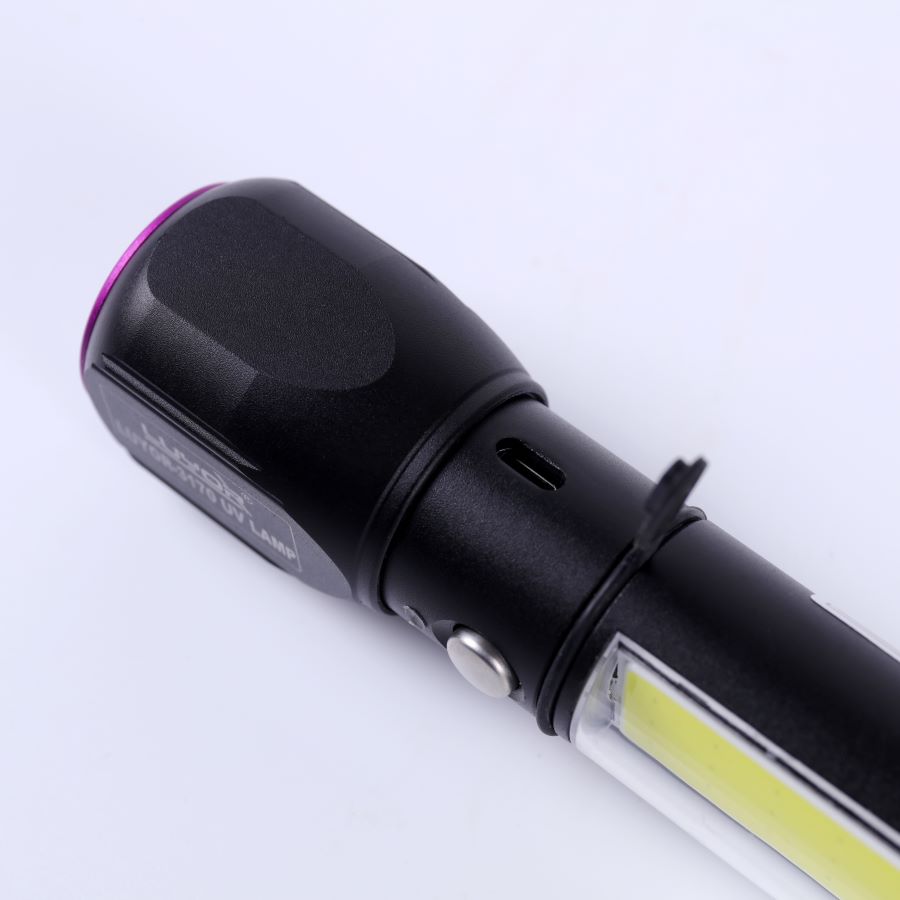

Figure 3: USB charging port. Charge at any time!

LUYOR-3170 Leak Detection Flashlight USB charging port

LUYOR-3170 Leak Detection Flashlight Technical Data

One 365nm LED

Intensity: 8,000 uw/cm2 at 38cm

White light: 3w cob 5700k, 3000 lux at 1m

Battery: one 2,600mha lithium battery

Dimension: length 18cm, head diameter 4cm, tail diameter 3cm

Net weight: 300g (including battery)

Gross weight: 1kg

Charging time: 4~6 hours

Working time: 3~6 hours

LUYOR-3170 Leak Detection Flashlight

What's Included

  1. LUYOR-3170

  2. A rechargeable battery

  3. A pair of LUV-10 UV protection glasses

  4. A charging cable

  5. A storage bag

Optional:

  1. A rechargeable battery

  2. A double-slot charger

  3. A storage case

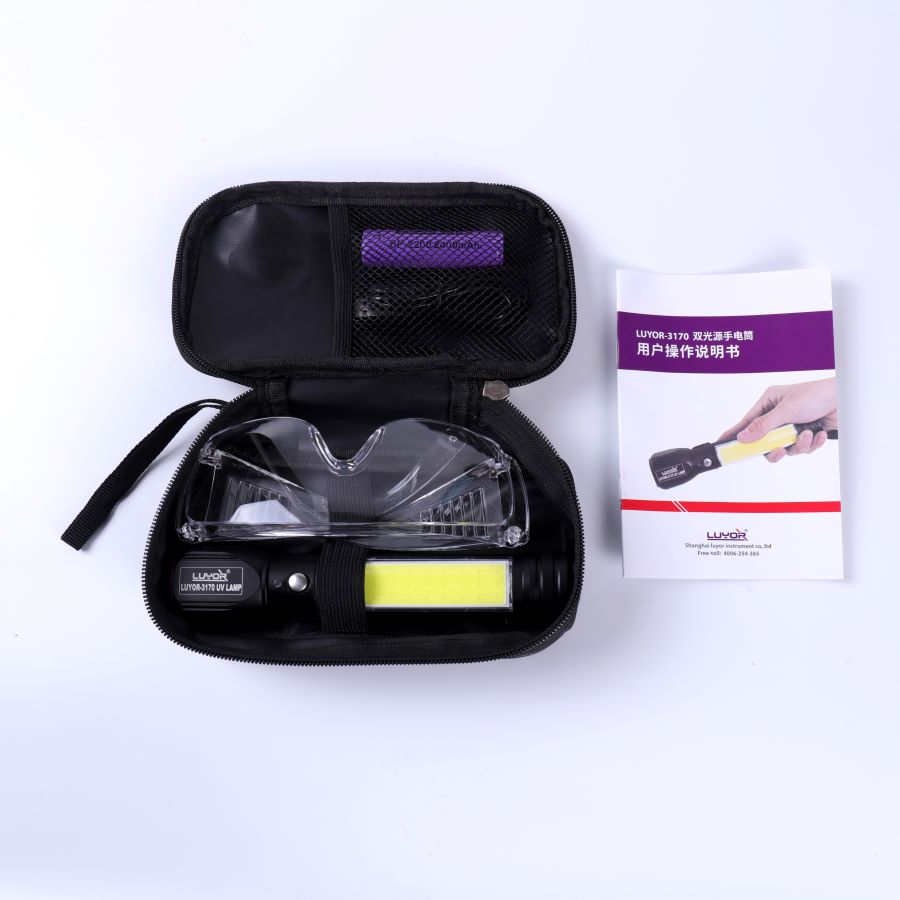

Figure 5: The standard set of LUYOR-3170 Leak Detection Flashlight

The standard set of LUYOR-3170 Leak Detection Flashlight
