Fluorescent Protein Flashlight LUYOR-3260

The LUYOR-3260 Fluorescent Protein Flashlight is an economical flashlight + filter glasses combination that works well for exciting fluorescence in many subjects. The Royal Blue excitation is great for GFP, fluorescein, and other green fluorophores.


Fluorescent Protein Flashlight LUYOR-3260

INTRODUCTION

The LUYOR-3260 Fluorescent Protein Flashlight is an economical flashlight + filter glasses combination that works well for exciting fluorescence in many subjects. The Royal Blue excitation is great for GFP, fluorescein, and other green fluorophores. You can easily screen for green fluorescent protein, fluorescein, calcein, and other fluorophores used in life sciences research, and explore for fluorescence in nature.

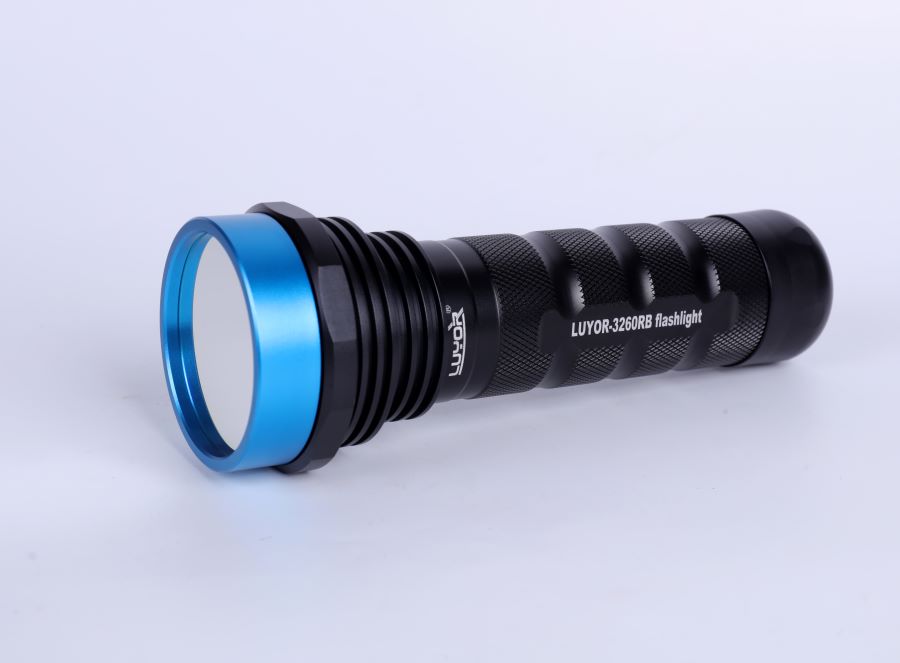

LUYOR-3260RB Fluorescent Protein Flashlight

Who is using LUYOR-3260?

  • Researchers in bio labs: works great with GFP, eGFP, fluorescein, lucifer yellow, other fluorophors

  • Educators: demonstrate and teach principles of fluorescence, encourage student exploration of fluorescence in the world around them

  • Fisheries scientists: works great with calcein staining

  • Marine scientists: scan marine specimens for fluorescence

  • Examine settlement tiles for juvenile corals

  • Reef aquarium hobbyists: bring out the true fluorescence in your tanks

  • Scan for new life too small to see any other way

  • Anyone who explore for fluorescence in your world – your kitchen, your garden, anywhere!

LUYOR-3260 Fluorescent Protein Flashlight

Techinical Specifications

  • Light source: 9 x 3w LEDs

  • Dimension: head diameter 70mm, tail diameter 45mm, length 25mm

  • Illuminated area: 150mm diameter at 30cm

  • Charging time: 2~6 hours

  • Operating time: 2~4 hours

  • Battery: 12v, 2600mha

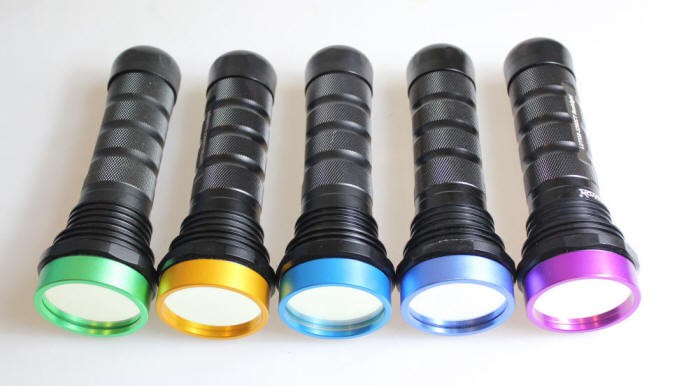

Wavelength Sets

ColorExcitationEmissionFluorescent Protein
UltravioletExcitation 360 – 380 nmEmission 415nm longpassDAPI, Hoechst, …
VioletExcitation 400 – 415 nmEmission 460nm longpassBFP, CFP, …
Royal BlueExcitation 440 – 460 nmEmission 500nm longpass or 500 – 560nm bandpassGFP, Fluorescein, Calcein, Lucifer Yellow, …
CyanExcitation 490 – 515 nmEmission 550nm longpassYFP, Venus, …
GreenExcitation 510 – 540 nmEmission 600nm longpassDsRed, TdTomato, RFP, …

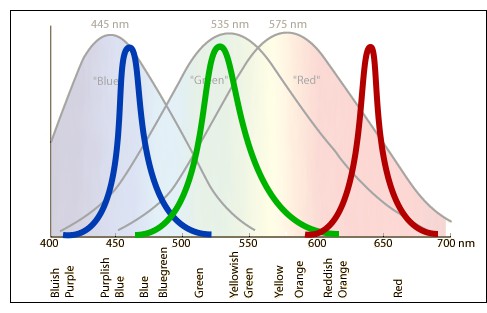

LUYOR-3260 Excitation and Emission

Customer Applications

Expression of DsRed in corn seeds under LUYOR-3260GR:

Expression of DsRed in corn seeds under LUYOR-3260GR

Expression of DsRed under LUYOR-3260GR:

Expression of DsRed under LUYOR-3260GR

What's Included

  1. LUYOR-3260 flashlight

  2. A pair of fluorescence viewing glasses. The glasses are well matched to the excitation source so that they block the reflected excitation light while transmitting the fluorescence with high efficiency, providing excellent viewing contrast.

  3. Battery

  4. Certificate

  5. Warranty card

  6. Instruction manual
