Fluorescence Flashlight LUYOR-3430

The LUYOR-3430 Microscope Excitation Light Source improves the efficiency of fluorescence microscope in pathology, cytology, microbiology, and other scientific research fields. This compact and economical fluorescent excitation light source is excellent for fluorescein applications in immunohistochemical research and other fields.


Fluorescence Flashlight LUYOR-3430

INTRODUCTION

Fluorescence is a powerful and widely used tool in various fields of cell biology, neuroscience, and other research. LUYOR offers a complete solution for fluorescence exicitation with microscopes. The LUYOR-3430 Microscope Excitation Light Source improves the efficiency of fluorescence microscope in pathology, cytology, microbiology, and other scientific research fields. This compact and economical fluorescent excitation light source is excellent for fluorescein applications in immunohistochemical research and other fields.

LUYOR-3430 Applications

LUYOR-3430 is ideal for screening genetically modified organisms, pre-screening of samples, auxiliary anatomy, coral research, etc. Using LUYOR-3430 to irradiate organisms containing Green fluorescent protein (GFP) can stimulate green fluorescence. The filter lens blocks all reflected light and only allows green fluorescence to pass through. When the excitation light source excites red fluorescence, you can observe with a pair of red viewing glasses and easily detect organisms containing red fluorescent protein (DsRed).

LUYOR-3430 can be used to detect and screen plants, animals and microorganisms that transfer Green fluorescent protein (GFP) gene, such as rice, corn, Zebrafish, mice, bacteria, fungi, etc. It is a compact and portable fluorescent detection device that can easily detect transgenic organisms.

Product Features

  • Compact and portable, excellent for field testing

  • Instant start-up

  • High detection efficiency, clear detection in the darkness

  • LED lifespan 10,000 hours

  • Continuous working time >4 hours

  • An economical way to add fluorescence to your existing stereomicroscopes

Wavelength Sets

A complete set of LUYOR-3430 includes an excitation light source and corresponding barrier filter. There are 7 sets of wavelengths available.

ModelDesignationExcitationBarrier Filter GlassesFluorophores
LUYOR-3430UVUltraviolet360 – 380nm410nm longpassDAPI, …
LUYOR-3430VIViolet400 – 415nm450nm longpassBFP, CFP, …
LUYOR-3430RBRoyal Blue440 – 460nm495nm longpassGFP, Fluorescein, Lucifer Yellow, …
LUYOR-3430RB-GORoyal Blue, Green Only440 – 460nm500 – 550nm bandpassGFP, Fluorescein, Lucifer Yellow, …
LUYOR-3430CYCyan490 – 515nm550nm longpassYFP, Venus, …
LUYOR-3430GRGreen510 – 540nm590nm longpassDsRed, TdTomato, RFP, …
LUYOR-3430WHWhiteUsed for fluorescence focusing

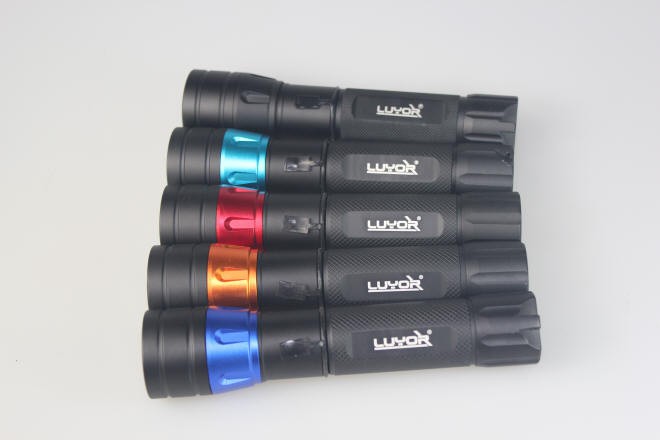

LUYOR-3430 Fluorescence Flashlight

LUYOR-3430UV Ultraviolet Excitation Light Source:

LUYOR-3430UV Ultraviolet Excitation Light Source

LUYOR-3430RB Royal Blue Excitation Light Source:

LUYOR-3430RB Royal Blue Excitation Light Source

LUYOR-3430CY Cyan Excitation Light Source:

LUYOR-3430CY Cyan Excitation Light Source

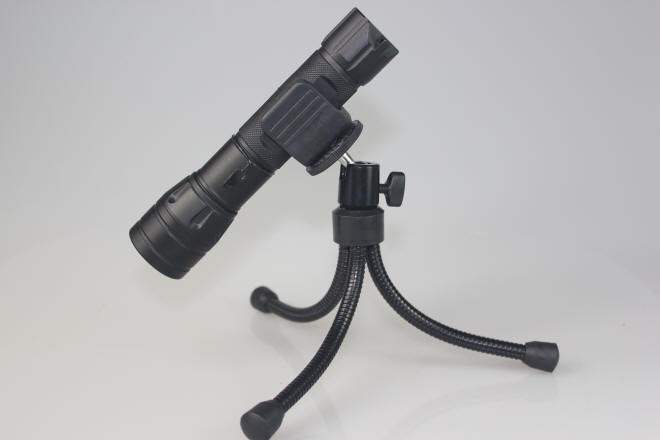

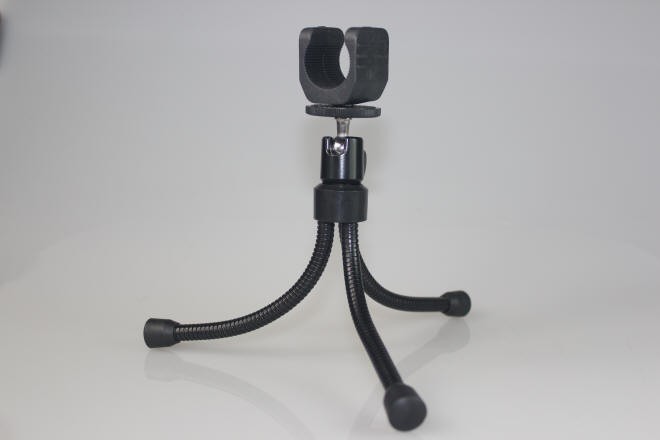

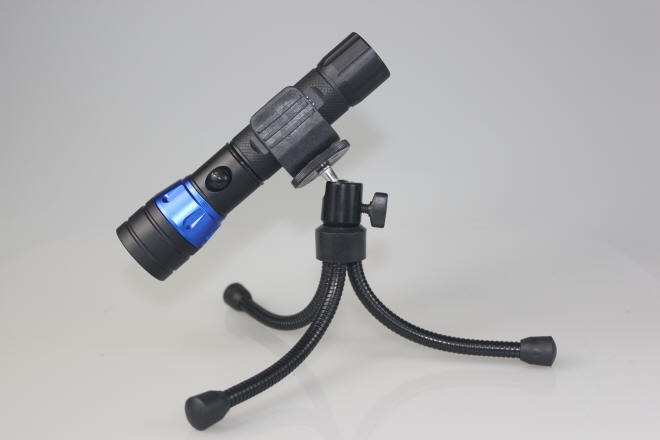

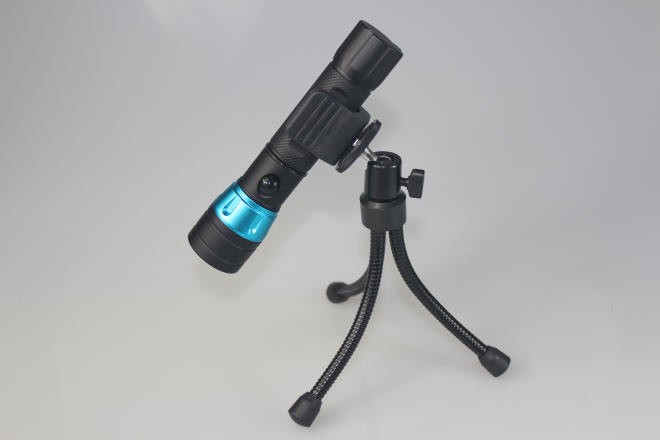

Tripod for LUYOR-3430:

Tripod for LUYOR-3430

Customer Applications

Fluorescence emitted by Drosophila larvae and adults under a stereo microscope:

Fluorescence emitted by Drosophila larvae and adults

Fluorescence of Zebrafish eggs under a stereo microscope:

Fluorescence of Zebrafish eggs

Fluorescence emitted by seeds labeled with GFP under a stereo microscope:

GFP Fluorescence

Fluorescence of Zebrafish under a stereo microscope:

Fluorescence of Zebrafish

Fluorescence of fly under a stereo microscope:

Fluorescence of fly
