Self-Powered Laser Sensor SPLS-5PW

SPLS-5PW is a self-powered laser speed sensor with a built-in rechargeable battery. TTL signal output (BNC interface). SPLS-5PW can provide 0-5 V pulses on the BNC interface. Equipped with a large capacity rechargeable battery, it can run continuously for 60 hours when fully charged.


Self-Powered Laser Sensor SPLS-5PW

INTRODUCTION

Self-Powered Rotational Speed Sensor SPLS-5PW

SPLS-5PW is a self-powered laser speed sensor with a built-in rechargeable battery. TTL signal output (BNC interface). SPLS-5PW can provide 0-5 V pulses on the BNC interface. Equipped with a large capacity rechargeable battery, it can run continuously for 60 hours when fully charged.

For continuous operation, SPLS-5PW Self-Powered Laser Speed Sensor can also be powered by a 115/230V AC power supply. SPLS-5PW Self-Powered Laser Optoelectronic Speed Sensor is a key component that provides one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers, and magnetic tape recorders.

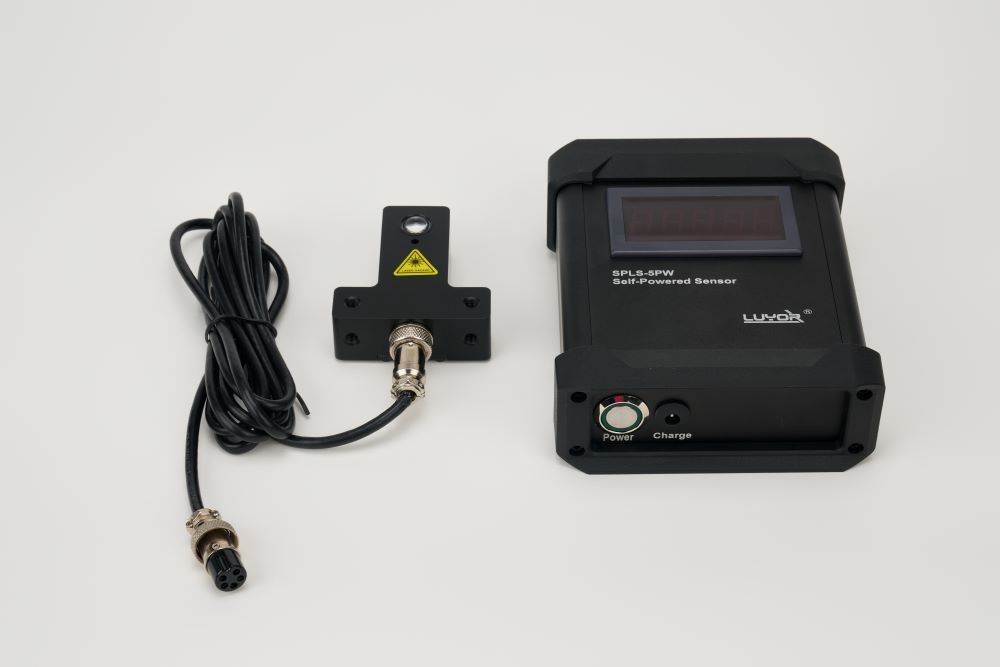

Figure 1: ROLS-5PW Remote Laser Speed Senso (left) and Self-Powered Rotational Speed Sensor SPLS-5PW (right)

Self-Powered Rotational Speed Sensor SPLS-5PW

Self-Powered Rotational Speed Sensor SPLS-5PW Configuration

SPLS-5PW comes standard with ROLS-5PW Remote Laser Speed Sensor. SPLS-IM is only used as a power supply and signal output module and can be used with mainstream speed sensors in the market (ordered separately).

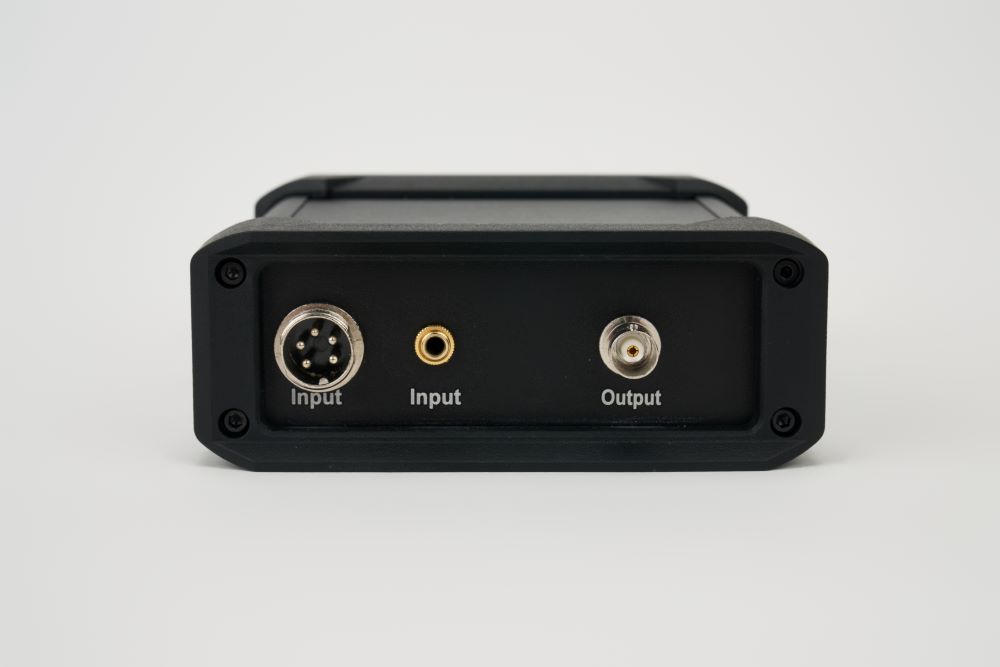

Figure 2: Self-Powered Rotational Speed Sensor SPLS-5PW input and output

Self-Powered Rotational Speed Sensor SPLS-5PW

Self-Powered Rotational Speed Sensor SPLS-5PW Technical Specifications

Measurement range: (RPM) - same as sensor

Output signal: TTL compatible pulse, 0-5V

Pulse width: determined by the size and speed of the target

Output connector: BNC connector

Rechargeable battery: 4.2v 5,000mHA

AC power supply: 115/230V AC

What's Included

The standard set of Self-Powered Rotational Speed Sensor SPLS-5P includes the following items:

  1. Power supply module with display

  2. Laser speed sensor ROLS-5PW

  3. Cable 2.4m

  4. BNC connection cable

  5. Reflective stickers 6m

  6. L-shape mounting bracket and two nuts

  7. User manual

  8. Certificate

  9. Warranty card

  10. Storage case

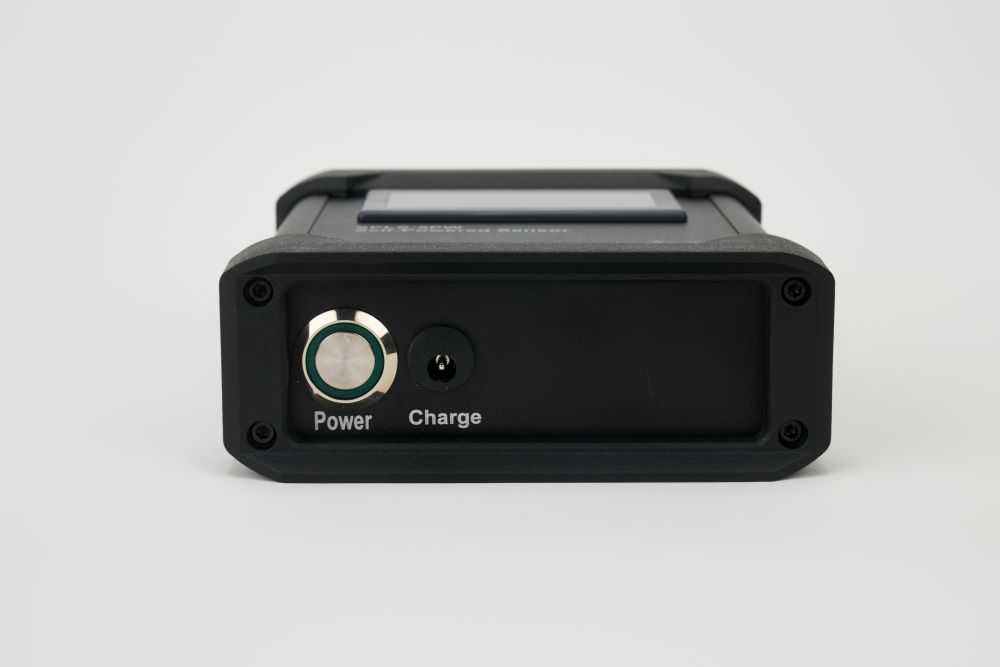

Figure 3: Self-Powered Rotational Speed Sensor SPLS-5PW power button and charging socket

Self-Powered Rotational Speed Sensor SPLS-5PW

Figure 4: Self-Powered Rotational Speed Sensor SPLS-5PW has the speed display

Self-Powered Rotational Speed Sensor SPLS-5PW

LUYOR offers OEM services for rotational speed sensor ROLS-5PW, please contact us if interested.
