Green Inspection Light LUYOR-3260G

LUYOR-3260G Surface Inspection Flashlight uses green light that is sensitive to the human eye and enables operators to clearly determine the causes of the common defects. LUYOR-3260G uses 9 high-power LED light sources and provides uniform illumination. The high-intensity light output is ideal for wafers, mobile phone screens, equipment cleaning inspection, the inspection of foreign matter on semiconductor surfaces and other precision workpieces.


Green Inspection Light LUYOR-3260G

INTRODUCTION

LUYOR-3260G Green Light for Surface Inspection

Scars, dirt, and foreign matter on the surface of precision workpieces are the main causes of defective products. LUYOR-3260G Surface Inspection Flashlight uses green light that is sensitive to the human eye and enables operators to clearly determine the causes of the common defects. LUYOR-3260G uses 9 high-power LED light sources and provides uniform illumination. The high-intensity light output is ideal for wafers, mobile phone screens, equipment cleaning inspection, the inspection of foreign matter on semiconductor surfaces and other precision workpieces.

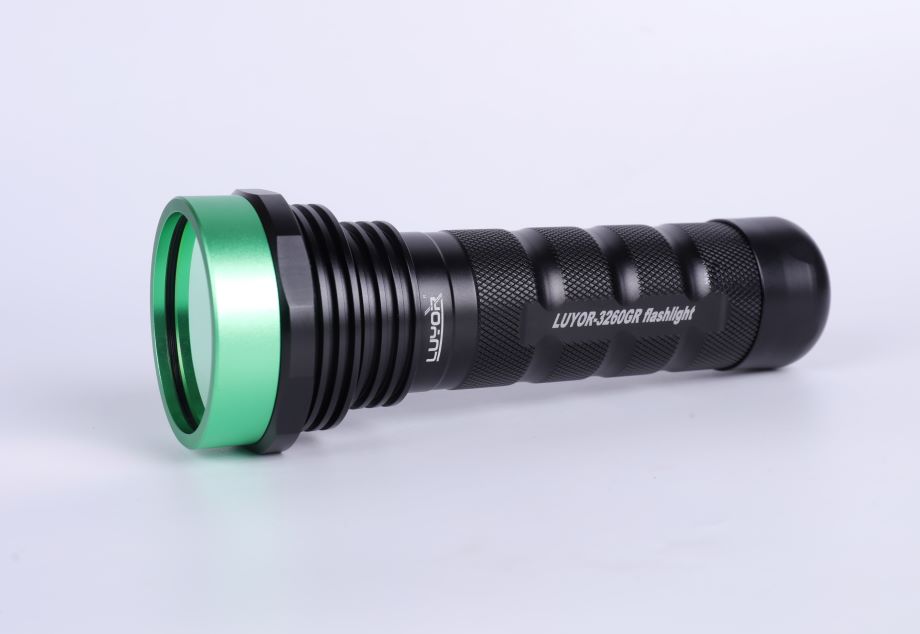

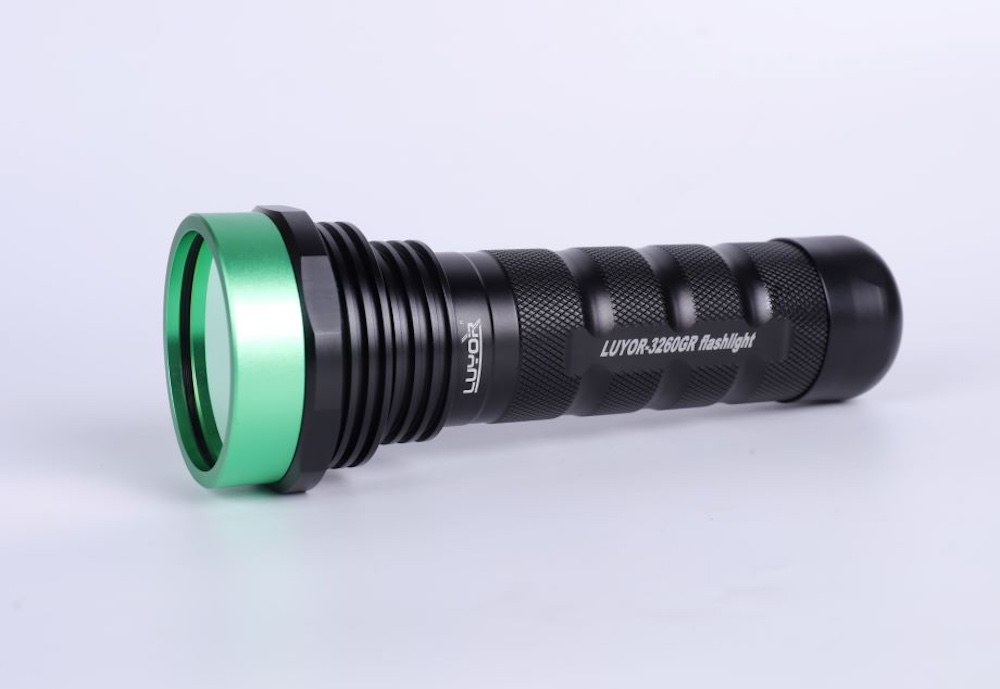

Figure 1: LUYOR-3260G Green Light for Surface Inspection

LUYOR-3260G Green Light for Surface Inspection

LUYOR-3260G Green Inspection Light Applications

LUYOR-3260G is a versatile flashlight that is ideal for surface inspection in various fileds:

  1. Solar substrates

  2. Polarizing plates

  3. CELL process chips

  4. LED substrates

  5. Panels

  6. CDs

  7. Acrylic

  8. Optical lens surfaces

  9. Various metal surfaces

  10. Polished surfaces of silicon wafer

  11. Surface inspection of diffuser plate, polarizer plate and condenser plate

  12. Printed circuit boards

  13. TFT LCD modules

  14. Special LCD filter for quality inspection of CF substrate manufacturing process

  15. Glasses or metal surfaces

  16. Inspection of coating uniformity, scratches, and dust on items

Figure 2: LUYOR-3260G Green Light for Surface Inspection

LUYOR-3260G Green Light for Surface Inspection

LUYOR-3260G Green Inspection Light Technical Data

Light source: 9 high-power LEDs

Wavelength: peak 530nm

Coverage area: diameter 150mm at 38cm

LED lifespan: 50,000 hours

Length: 21cm

Charger input: 100-240V, 50/60Hz

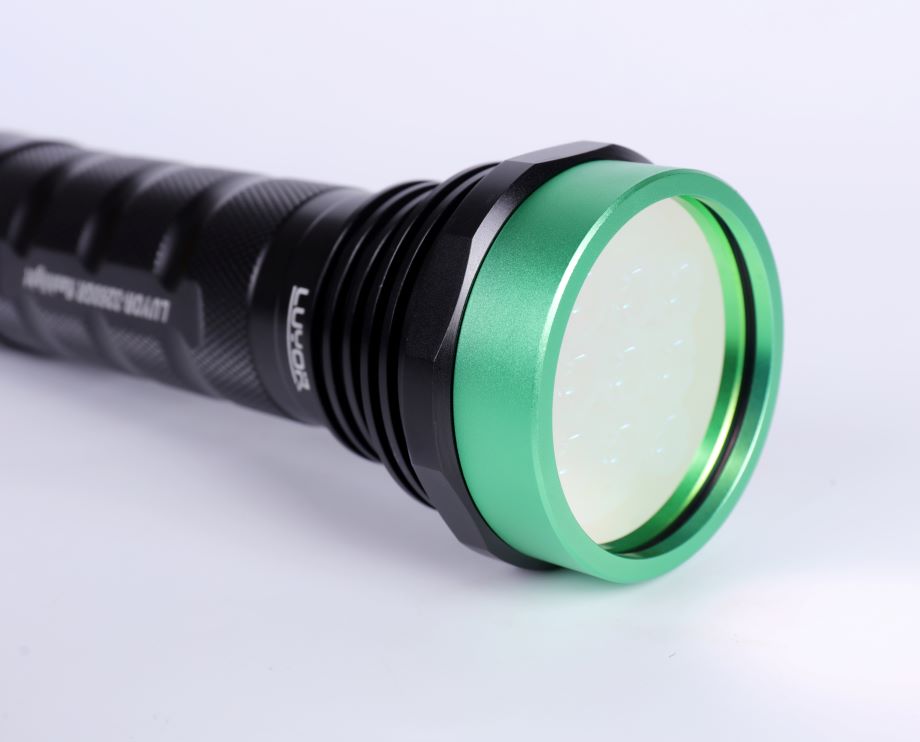

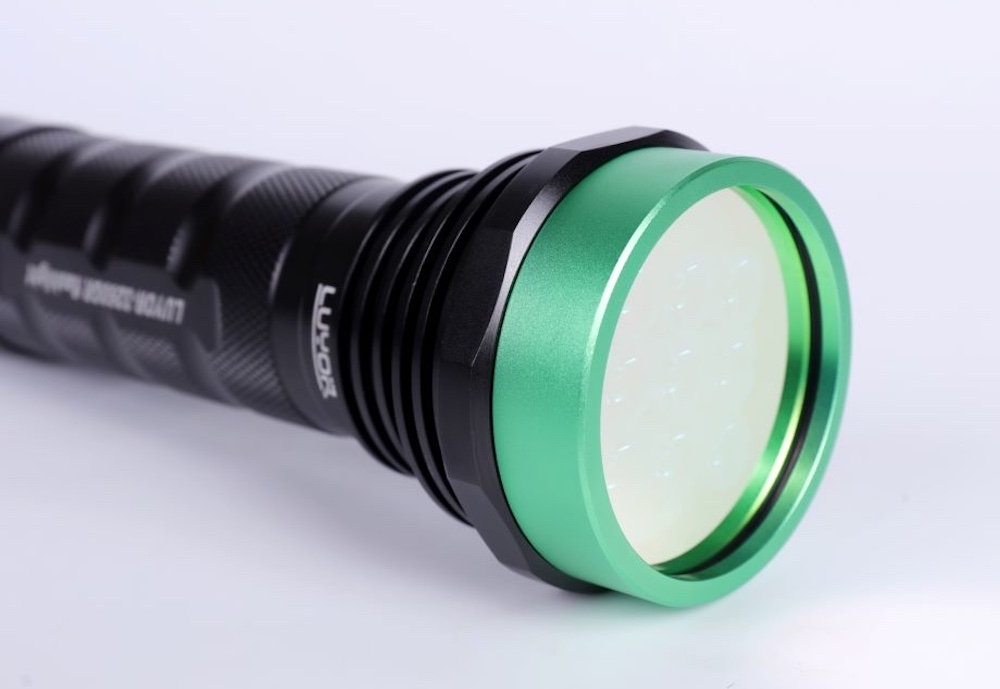

Figure 3: The light head of LUYOR-3260G Green Light for Surface Inspection

The light head of LUYOR-3260G Green Light for Surface Inspection

What's Included

  1. LUYOR-3260G

  2. A battery

  3. A battery charger

  4. Instructional manual

  5. Certificate

  6. Warranty card
