LUYOR-3318 Surface Inspection Lamp is excellent for the inspection of scratches, dirt, and foreign matter on different surfaces. Equipped with an even light plate, the light emitted by LUYOR-3318 is non-glaring. With a dimmer design and a 50cm flexible arm, operators can adjust light intensity and illumination angle based on their needs.
INTRODUCTION
Surface Inspection Light LUYOR-3318 is excellent for the inspection of scratches, dirt, and foreign matter on different surfaces. Equipped with an even light plate, the light emitted by LUYOR-3318 is non-glaring. With a dimmer design and a 50cm flexible arm, operators can adjust light intensity and illumination angle based on their needs.
● Quality inspection of wafers
● Inspection of LCD filters and color filters
● Ceramic surface inspection
● Surface inspection of touch screens
● Inspection of car paint quality
● Inspection of metal surface (aluminum, stainless steel, copper, etc.)
● Inspection of surface scratches and foreign matter on glass lenses, silicon glasses and photomasks

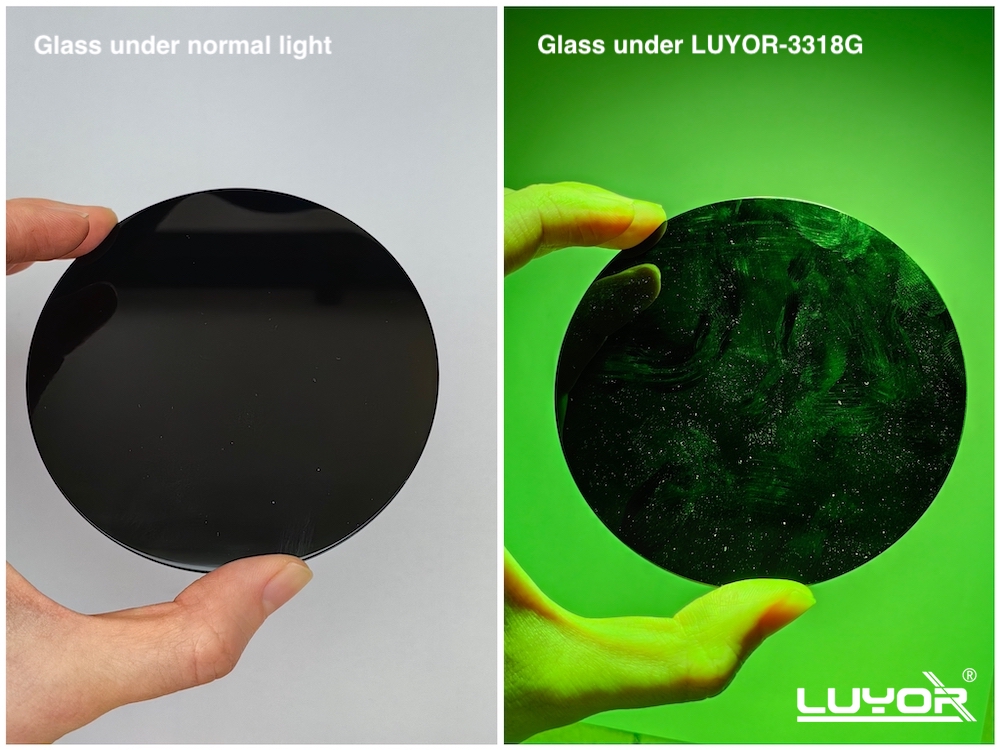

Photo below: Inspect a screen surface using Green Light Surface Inspection Lamp LUYOR-3318G. Defects (such as particles, scratches, dust, fingerprints, oil stains, etc.) are easily visible.

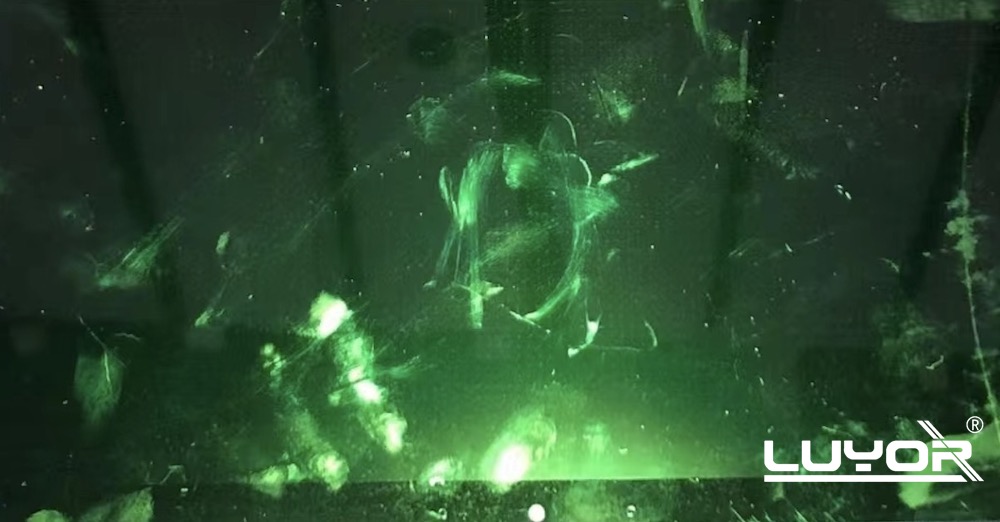

Photo below: Particles, dust, and fingerprints become easily visible uner the LUYOR-3318G Surface Inspection Lamp

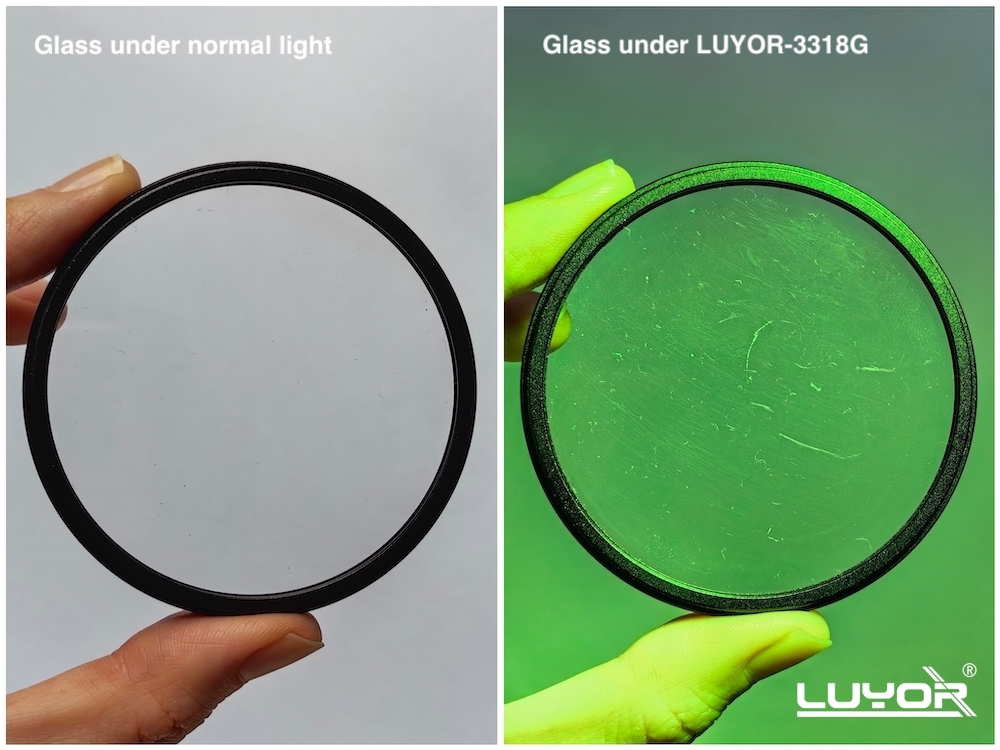

Photo below: Scratches on glass become easily visible uner the LUYOR-3318G Surface Inspection Lamp

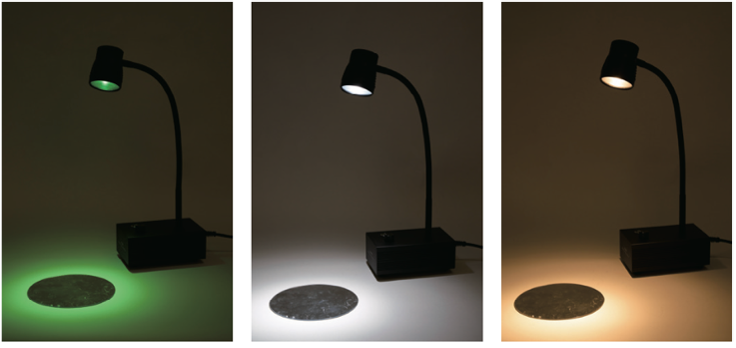

| Surface Inspection Light | LUYOR-3318Y | LUYOR-3318W | LUYOR-3318G | LUYOR-3318UV |
| Light Source | Yellow light (3,000 K) | White light (6,000 K) | Green light (500-550 nm) | Ultraviolet light (365 nm) |
| Intensity at 30 cm | 49,000 lux | 59,000 lux | 29,000 lux | 19,000 uw/cm2 |
| Coverage area at 30 cm | Diameter 30 cm | |||
| Power | Adjustable from 3 w to 28 w | |||
| LED Lifespan | 50,000 hours | |||
| Cooling | Cooling without a fan | |||
| Dimension |
20 x 13 x 8cm (base) Flexible arm 50cm long Light head diameter 7.8cm |
20 x 13 x 8cm (base) Flexible arm 50cm long Light head diameter 9cm |
||
| Weight | 1.7 kg | 1.9 kg | ||
| Power Supply | 100-240V AC, 50/60 Hz | |||
