Parallel Inspection Light LUYOR-3320

LUYOR-3320 LED Parallel Light for Surface Inspection

LUYOR-3320 LED Parallel Light features 10 high-power LEDs and our newly designed linear lens that changes the circular light output into parallel light output. This design of parallel light output prevents direct light from reaching the operator’s eyes and thus making LUYOR-3320 comfortable to use for a long time. With a vertical angle of 8 degrees and a horizontal angle of 60 degrees, LUYOR-3320 produces a concentrated beam of light and illuminates an area up to 30 x 1.5cm.

For surface defects that are hard to see under normal lighting (e.g., dust, scratches, burrs, bumps, ink, etc.), you can illuminate the surface using LUYOR-3320 and easily observe them with the naked eye. It is excellent for surface inspection in lenses, liquid crystal glasses, mobile phone glasses, molds, automobile, mobile phone protective films, flexible substrates, screen printing and other industries. For applications requiring large coverage area, LUYOR-3320 can be easily attached to the stand and ganged together.

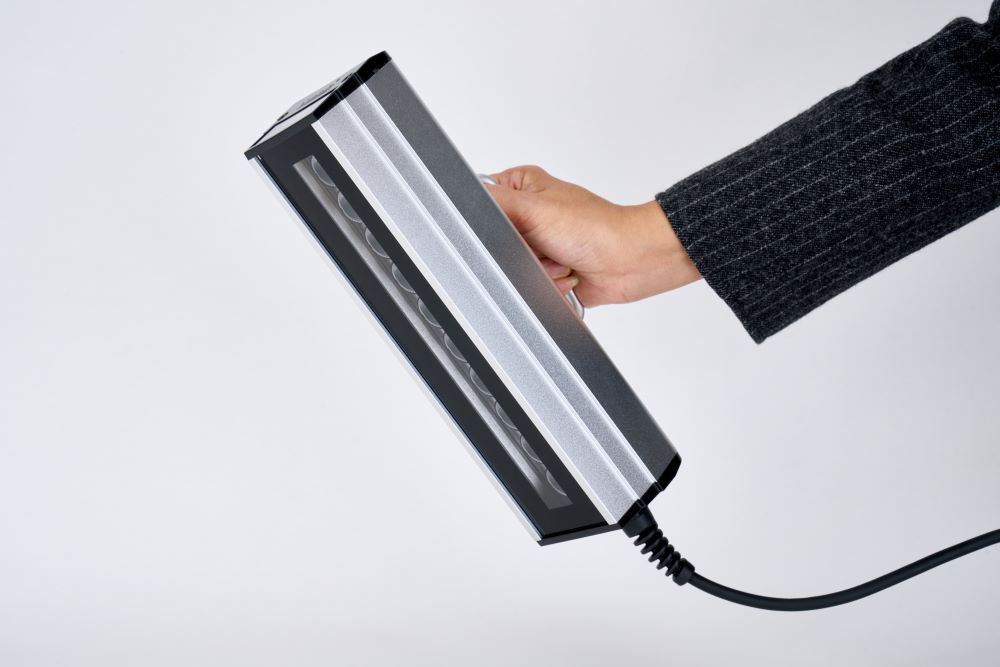

Figure 1：LUYOR-3320G/A LED Parallel Light (green light) used for inspecting wafers

LUYOR-3320 LED Parallel Light Applications

Touch panels, solar substrates, LED substrates, LCD substrates, laminated glasses, optics.

Inspection of lens surface, polished surface of silicon wafers and diffuser plates for scratches.

Inspection after various surface treatments: anodized surface, electroplated surface, car paint surface, plastic shell surface coating layer, mobile phone mirror shell.

Surface inspection of various optoelectronic products: glass surface coating, touch panel coating, sapphire substrate, photomask (box), semiconductor wafer, LCD panel, color filters.

Various grinding and polishing surfaces: metal processing parts, plastic processing parts, glass surface, quartz surface, sapphire surface, ceramic substrate surface.

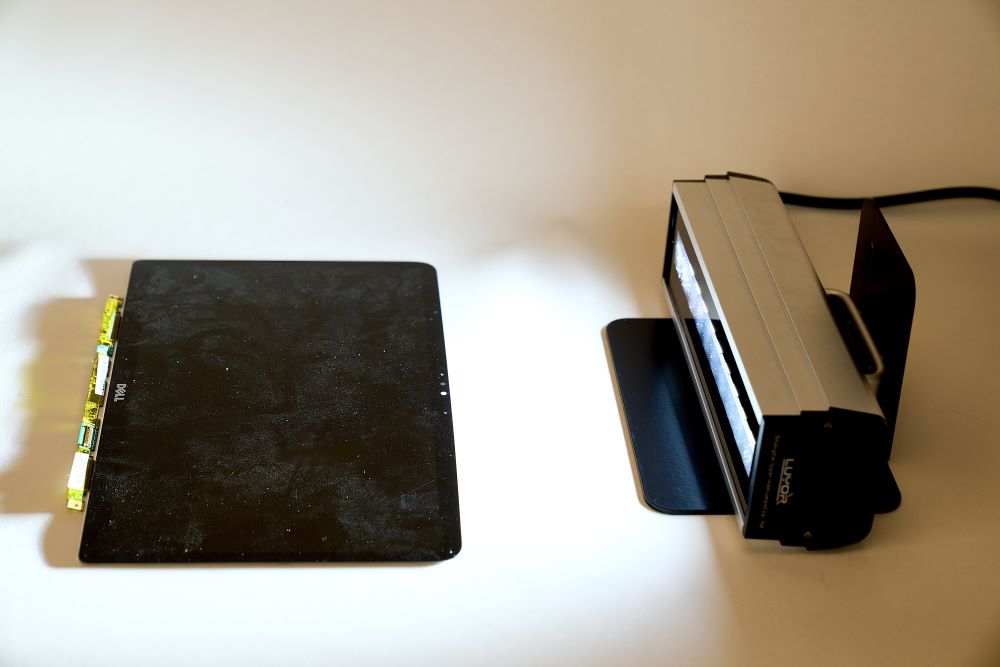

Figure 2：LUYOR-3320W/A LED Parallel Light (white light)

LUYOR-3320 LED Parallel Light Technical Data

Dimension: 270 x 72 x 65mm

Weight: 1kg
