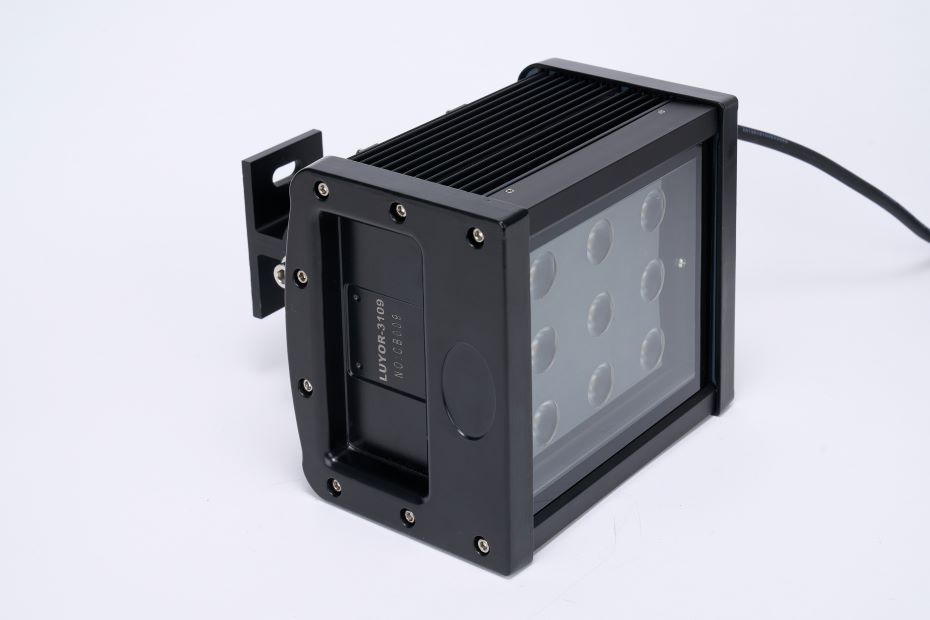

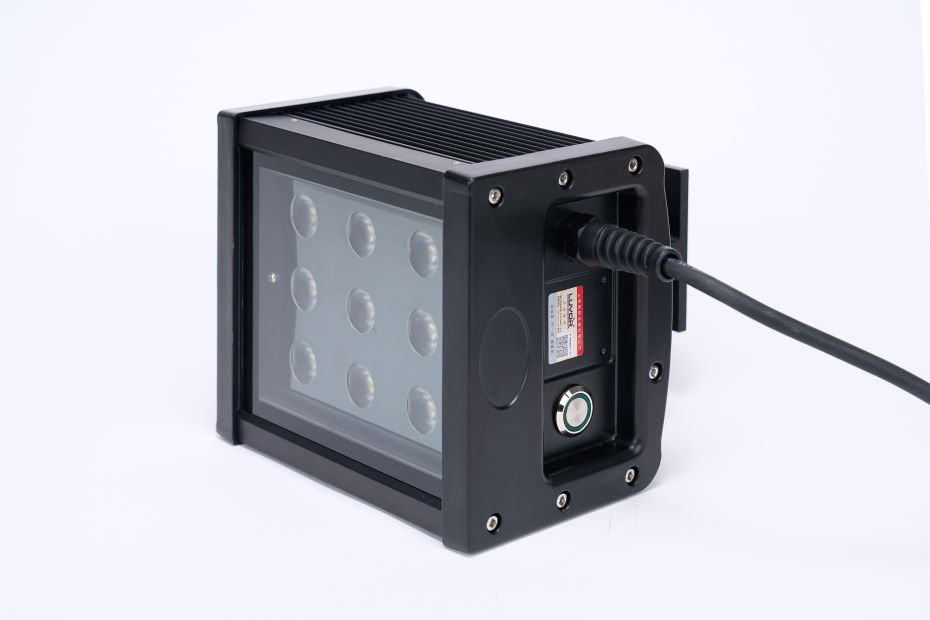

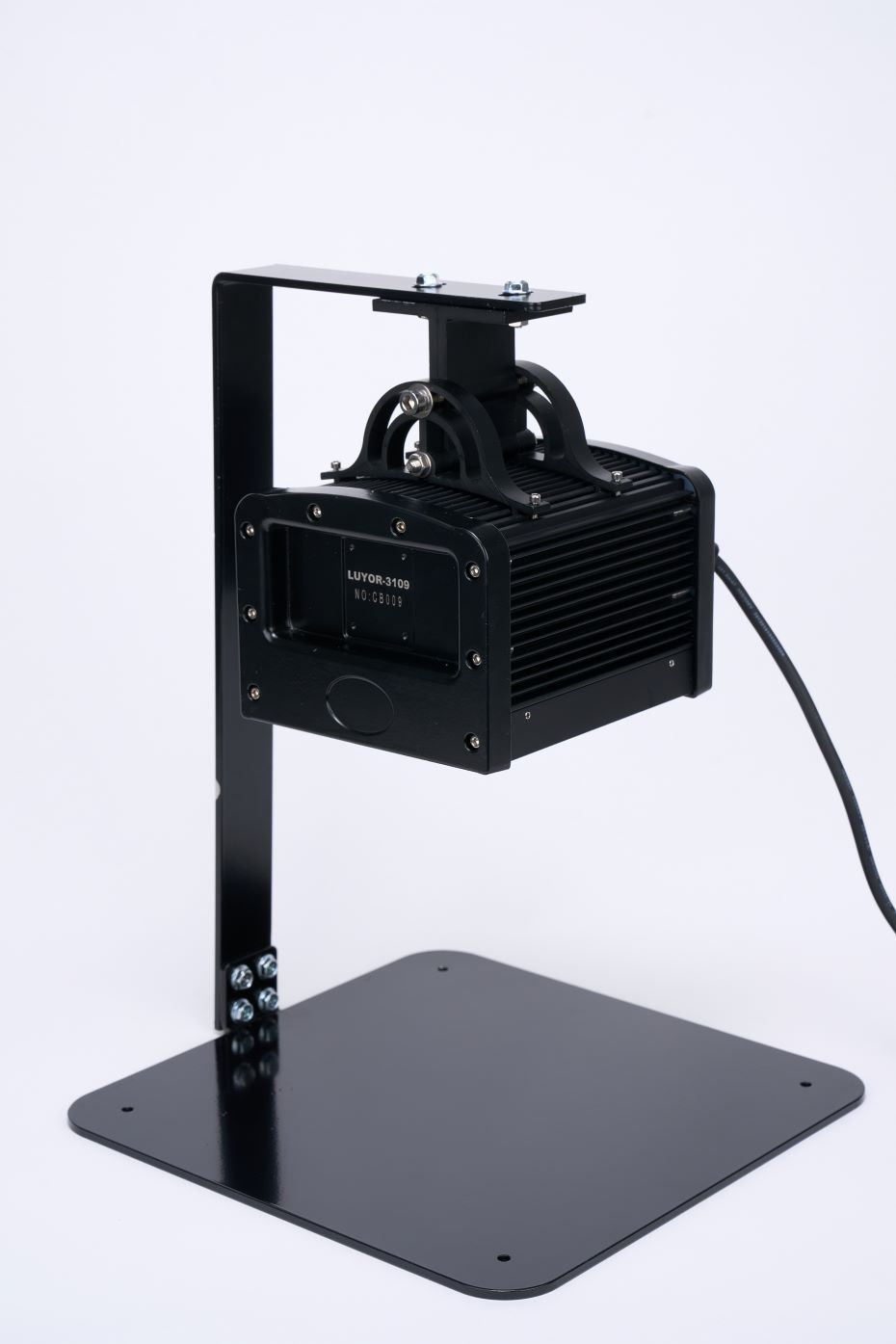

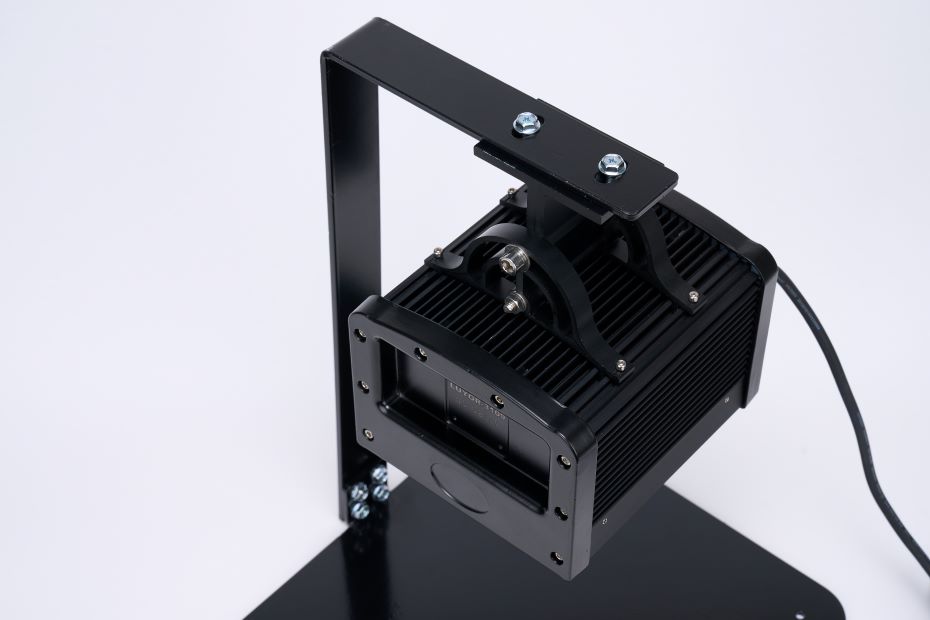

Photocatalytic UV Lamp LUYOR-3109

LUYOR-3109 UV LED Lamp — 27W, equivalent to a 400W high-pressure mercury lamp!

The LUYOR-3109 Photocatalytic UV LED Lamp is powered by nine high-intensity UV LEDs, with output precisely focused through a specialized quartz lens to deliver exceptional irradiance and uniform illumination across the target area. Engineered with an IP67-rated waterproof housing and high-output UV performance, this compact UV LED lamp is ideally suited for photocatalysis, polymerization, UV curing, photodegradation, mutagenesis, and photoactivation.

Key Features

High irradiance — 27W LED delivers output equivalent to a 400W high-pressure mercury lamp

Uniform light distribution — guarantees even exposure across the entire target area

Low-heat operation — advanced cold-light design maintains surface temperature below 50°C, protecting heat-sensitive samples

Instant on/off — no warm-up time required for immediate use

Extended service life — robust LEDs rated for 50,000 hours of reliable operation

Designed for continuous operation — suitable for 24/7 use without performance degradation

Technical Data

Light source: 9 high-power UV LEDs

Wavelength: pure UVA output (360-370nm, peak 365nm), no UVB or UVC

Coverage area: 250 x 250 mm at 38cm

UV intensity: 9,000 uw/cm2 at 38cm

LED Life span: 50,000 hours

Dimension: 113 x 85 x 110 mm

Applications

UV Photocatalysis

UV-induced Polymerization

UV Curing

UV Photodegradation

UV Mutagenesis

UV Photoactivation

The LUYOR-3109 Photocatalytic UV LED Lamp is widely recognized as the preferred choice for UV induced reactions, delivering consistent, high-intensity output for reliable and repeatable results.

Publications

Li, Q., Li, B., Yang, R., Chen, X., Shang, C., Feng, G., Wu, Z., Teng, Y., He, H., Bai, Y. & Zheng, B. Photosynthesis pneumatic patch promoted deep-wound healing. Cell Biomater. 2, 100047 (2025).

Zheng, B., Li, Q., Fang, L., Cai, X., Liu, Y., Duo, Y., Li, B., Wu, Z., Shen, B., Bai, Y., Cheng, S.-X. & Zhang, X. Microorganism microneedle micro-engine depth drug delivery. Nat. Commun. 15, 8998 (2024).

Lin, X., Li, H.-T., Nie, M.-X., Fu, S.-R., Li, Y., Zhang, Q., Chen, F., Han, D. & Fu, Q. Engineering the properties of transparent hybrid coating toward high hardness, excellent flexibility, and multifunction. ACS Appl. Mater. Interfaces 14, 39432–39440 (2022).

Li, J., Liu, Q., Jin, R., Yin, B., Wei, X. & Lv, D. Endowing cationic surfactant micellar solution with pH, light and temperature triple-response characteristics by introducing 4-(phenylazo)-benzoic acid. J. Ind. Eng. Chem. 109, 130–138 (2022).
