LUYOR UV Bench Lamps are versatile and compact UV lamps, designed to provide uniform, wide-area ultraviolet light illumination in laboratory, forensic, and industrial environments. Featuring high-power ultraviolet tubes and anodized aluminum housing, our UV lamps offer unparalleled performance with sturdy, durable construction.
INTRODUCTION
LUYOR UV Bench Lamps are versatile and compact UV lamps, designed to provide uniform, wide-area ultraviolet light illumination in laboratory, forensic, and industrial environments. Featuring high-power ultraviolet tubes and anodized aluminum housing, our UV lamps offer unparalleled performance with sturdy, durable construction. Adaptable to various setups, ideal for both overhead and bench use.
High‑intensity UV output – Powerful tubes deliver consistent, stable irradiance for reliable fluorescence excitation and inspection results.
Wide & uniform coverage – Even light distribution across the target area.
Easy hanging – Pre‑drilled mounting holes at the top enable quick, secure suspension from racks or shelves.
Heavy‑duty construction – Aluminum housing with scratch‑resistant coating withstands the rigors of daily use in industrial, forensic, and laboratory environments.
Industry‑grade standards – Built to meet professional UV lamp performance specifications, ensuring accuracy and repeatability.

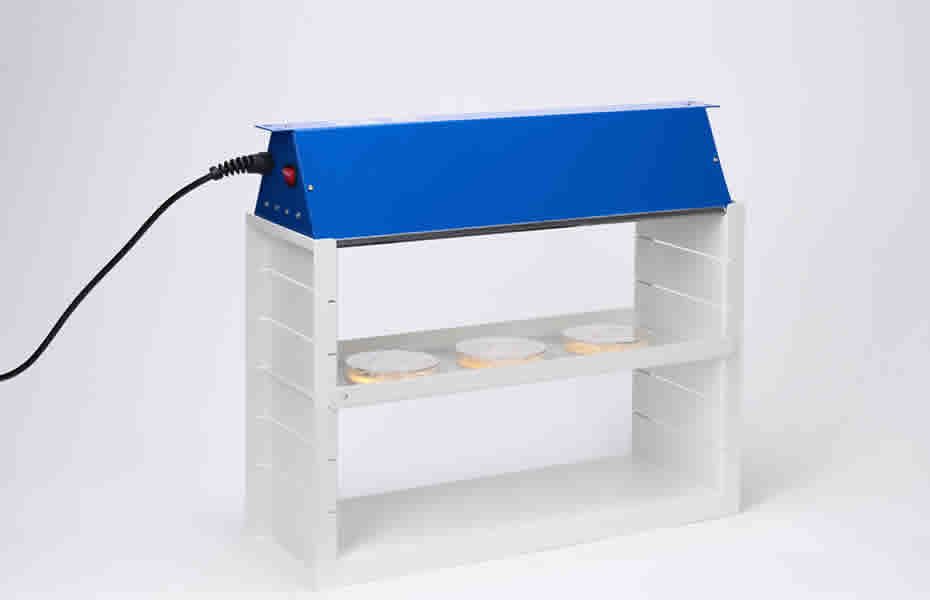

Optional height‑adjustable stand – Converts the bench lamp into a stationary, hands‑free workstation with customizable height settings for different sample sizes.

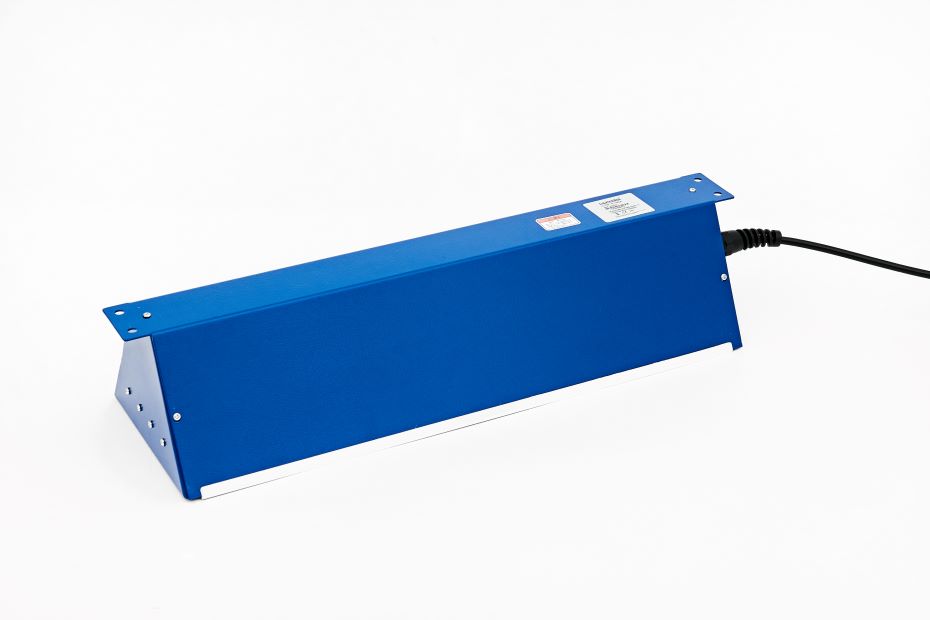

Figure 1: Both XX-15 and XX-20 UV Bench lamps have mounting holes at the top end for easy hanging.
| Model | Light Source | UV Intensity at 25cm | Dimension | Weight |
| XX-15A | 2 x 15w 365nm BLB UV tubes | 1,650 uw/cm2 | 50 x 15 x 11 cm (19.7 x 5.9 x 4.3 in) | 2.5 kg (5.5 lb) |
| XX-15B | 2 x 15w 302nm UV tubes | 1,620 uw/cm2 | 50 x 15 x 11 cm (19.7 x 5.9 x 4.3 in) | 2.5 kg (5.5 lb) |
| XX-15C | 2 x 15w 254nm UV tubes | 1,550 uw/cm2 | 50 x 15 x 11 cm (19.7 x 5.9 x 4.3 in) | 2.5 kg (5.5 lb) |
| XX-20A | 2 x 18w 365nm BLB UV tubes | 1,950 uw/cm2 | 61 x 15 x 11 cm (4.0 x 5.9 x 4.3 in) | 4.5 kg (9.9 lb) |
| XX-20B | 2 x 18w 302nm UV tubes | 1,910 uw/cm2 | 61 x 15 x 11 cm (4.0 x 5.9 x 4.3 in) | 4.5 kg (9.9 lb) |
| XX-20C | 2 x 18w 254nm UV tubes | 1,950 uw/cm2 | 61 x 15 x 11 cm (4.0 x 5.9 x 4.3 in) | 4.5 kg (9.9 lb) |

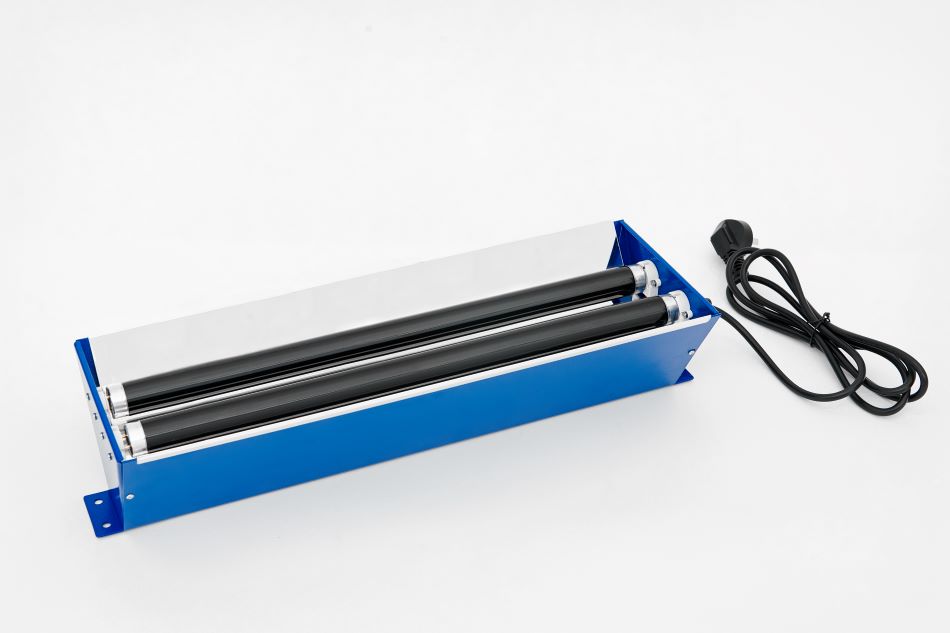

Photo below: LUYOR XX-15A UV Bench Lamp
