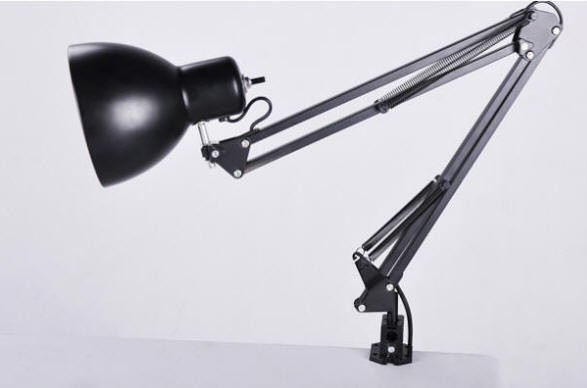

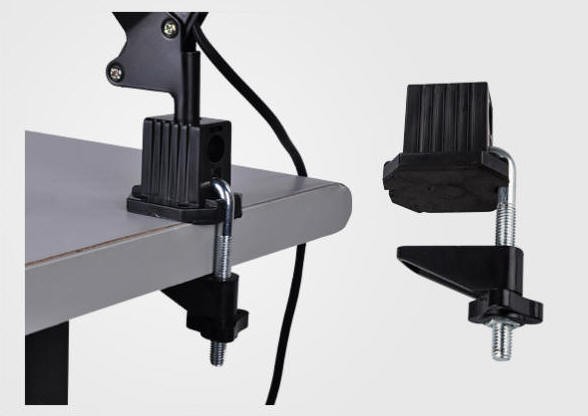

LUYOR-3405 desktop LED UV detection lamp is the United States for the fluorescent magnetic particle detection, fluorescent penetration testing industry developed a desktop UV LED test lamp. LUYOR-3405 desktop LED ultraviolet testing lamp uses 4 high energy ultraviolet LED, ultraviolet range is 360-370nm, no harmful UVB and UVC, 40cm ultraviolet intensity is 7000uw/cm2, effective radiation area is 150mm, LUYOR-3405 desktop lamp ultraviolet testing without power supply box is heavy, the line AC 220V power supply, using the table clamp type design, 360 degree rotation, very suitable for automated production line mass detection.
INTRODUCTION
LUYOR-3405 desktop LED UV detection lamp is the United States for the fluorescent magnetic particle detection, fluorescent penetration testing industry developed a desktop UV LED test lamp. LUYOR-3405 desktop LED ultraviolet testing lamp uses 4 high energy ultraviolet LED, ultraviolet range is 360-370nm, no harmful UVB and UVC, 40cm ultraviolet intensity is 7000uw/cm2, effective radiation area is 150mm, LUYOR-3405 desktop lamp ultraviolet testing without power supply box is heavy, the line AC 220V power supply, using the table clamp type design, 360 degree rotation, very suitable for automated production line mass detection.
1 pure 365nm long wave UV output (3650 band UV).
2 aluminum alloy shell, effective heat transfer out.
3 instant start, that is, open and bright, no need to wait.
4 cold light source, 24 hours of work in a timely manner, the shell temperature is not more than 60 degrees.
5 white light illumination is less than 15lux (using Japanese Japanese Japanese HIOKI 3423 white light illumination meter 38cm measurement data).
6 in order to open up the Chinese market, the price is only 50% of similar products.
7 free warranty for three years (except for human factors).
project | data |
light source | 360-370nm, center wavelength: 365nm |
UV intensity | UVA:7000UW/CM2 (38CM center strength) |
White light intensity | Below 15lux (38CM) |
UVB, UVC | 0 |
Power Supply | AC 220V, 50Hz, 0.5A |
Lamp size | 150x120 (long X diameter) |
Long arm length | 50cm |
quality | 0.8kg, gross weight: 3kg |
LUYOR-3404 host, hard carrying case, LUV-10 transparent protective glasses, LUV-30 fluorescence enhanced protective glasses, manual, certificate, warranty card.
