Portable LED Stroboscope LUYOR-905

The LUYOR-905 Stroboscope, also known as stroboscopic light, or strobe light, is an instrument used to make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible. Otherwise, it can not be observed by naked eyes.


Portable LED Stroboscope LUYOR-905

INTRODUCTION

Portable LED Stroboscope LUYOR-905

The LUYOR-905 Stroboscope, also known as stroboscopic light, or strobe light, is an instrument used to make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible. Otherwise, it can not be observed by naked eyes.

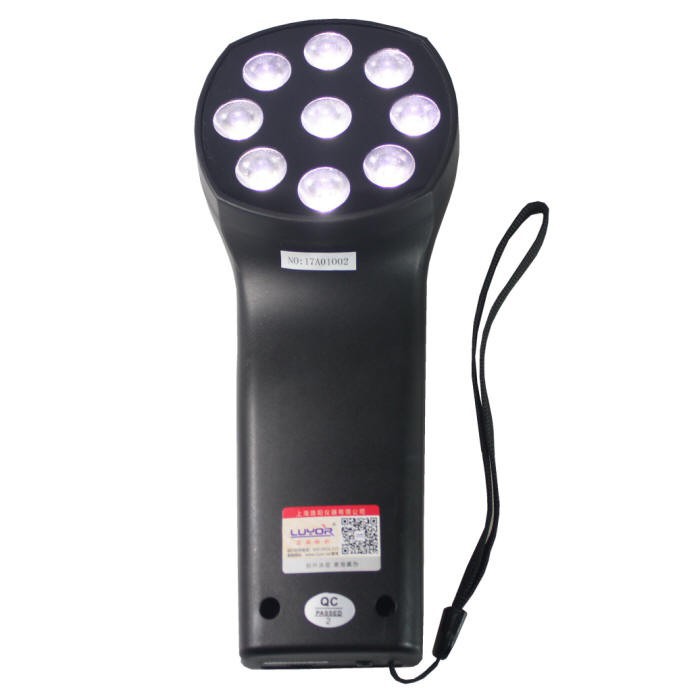

led stroboscope LUYOR-905

The principle of stroboscope LUYOR-905 is synchronizing the flash frequency to the movement of the observed object and emitting intensive light pulse of short duration. The object is always illuminated at the same point of its movement, so that it appears to the eye as if it were motionless.

The portable led stroboscope LUYOR-905 is excellent for non-contact RPM measurement, inspection and observation of moving parts. For example: a motor speed and movement frequency (printed bags), frequency scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.

The portable led stroboscope LUYOR-905 is designed to be lightweight, compact, and easy-to-use. The measurement range is from 60 FPM to 120,000 FPM. The LED brightness can be adjusted to accommodate various environments.

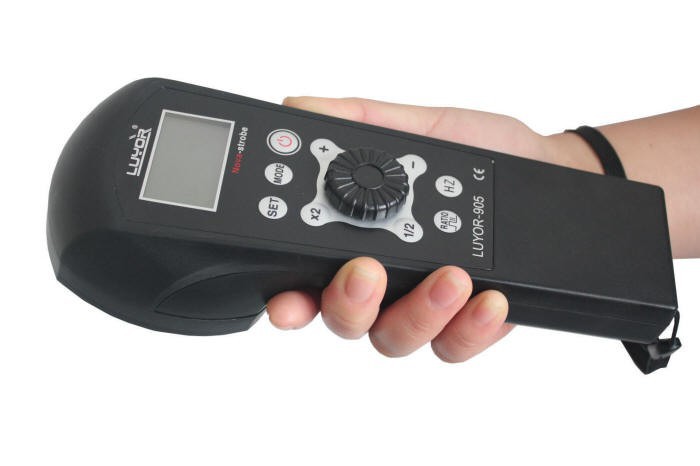

led stroboscope LUYOR-905

Portable LED Stroboscope LUYOR-905 Advantages

  • LCD digital display, easy to read

  • Adopts 9 pices America CREE LED lamps with long life time

  • Wide range of trigger frequency, 60fpm/min-120,000 fpm/min.

  • Frequency of each unit can be easily adjusted

  • Good light brightness, with illunimation about 10,000 Lux.

  • Portable, rechargeable, easy to operate and adjust

  • Accurate and simple yet highly stable, repeatable flash rate setting.

  • Internal components are independent, thus easy to disassemabled for problem solving

  • Competitive price with high quality

  • Fast delivery, environmental friendly paper packaging.

  • Light weight and compact design, easy for figure operation.

  • After-sale service guaranteed

led stroboscope LUYOR-905

Portable LED Stroboscope LUYOR-905 Technical Parameters

ModelLUYOR-905
TypePortable and rechargeable
Battery TypeLithium rechargeable battery
Battery Spec.DC16V, 4500mA
Battery running timeAbove 5 hours (have indicating light)
AC adapterAC 220V
Total PowerAbout 90W
Environment IlluminationLess than 10,000 Lux
LED Lamp Spec.10W LED
LED Lamp Lifetime3-5 years
Trigger ModeInternal and External
Setting Accuracy (Internal Vibration)0.01%±1 digit (25ºC)
Setting the Resolution (Internal Trigger)1~200Hz  0.002Hz
1~2000Hz  0.02Hz
60.0~12,000fpm  0.1fpm
12,001~120,000fpm 1fpm
Product Size208mm*70mm*60mm
Net Weight380g
Packaging Size265mm*265mm*145mm

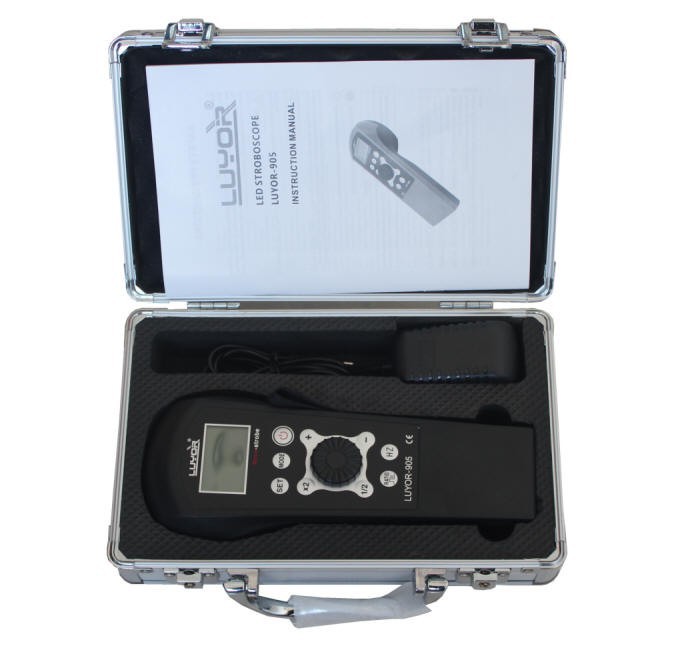

AccessoriesAluminum alloy carry case

portable led stroboscope LUYOR-905
