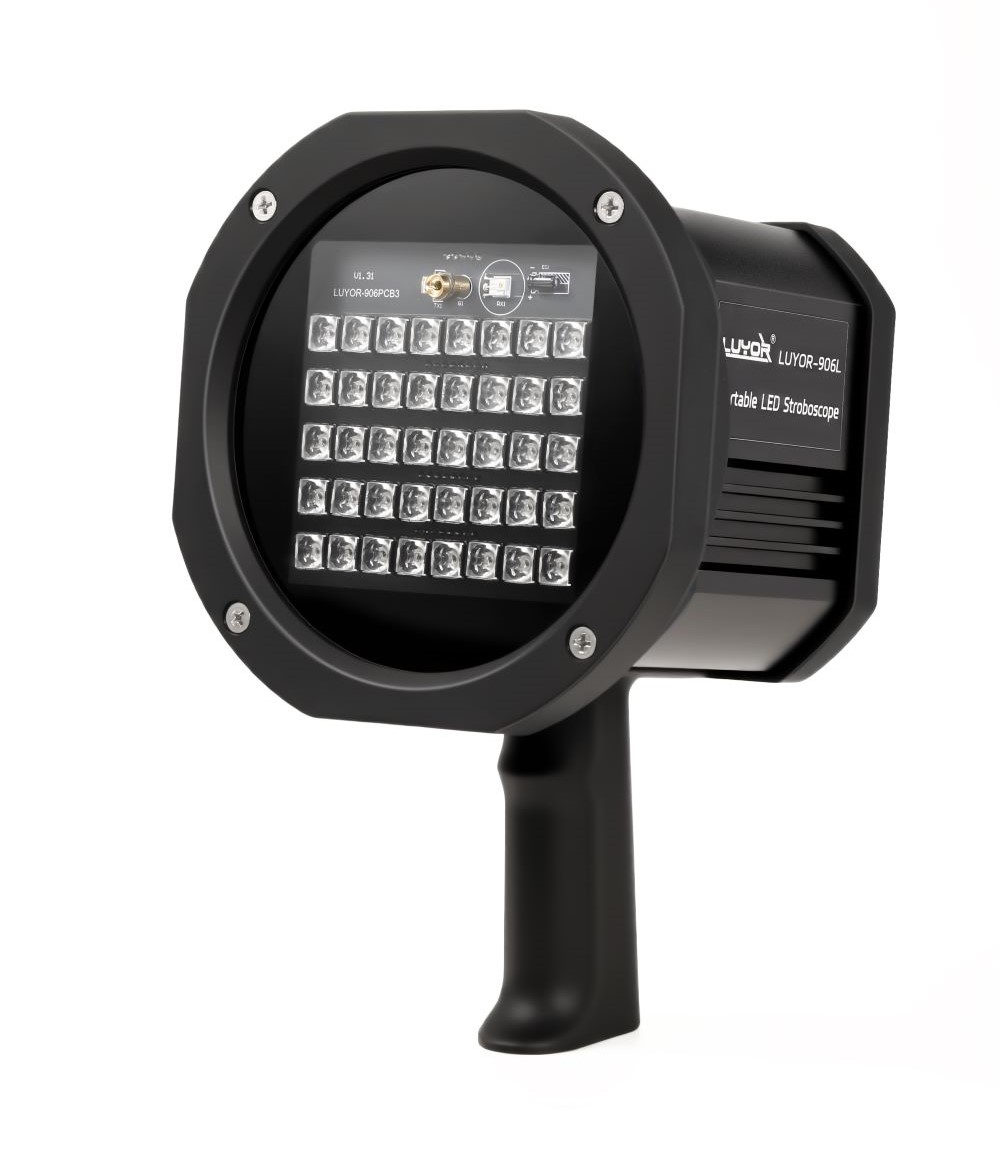

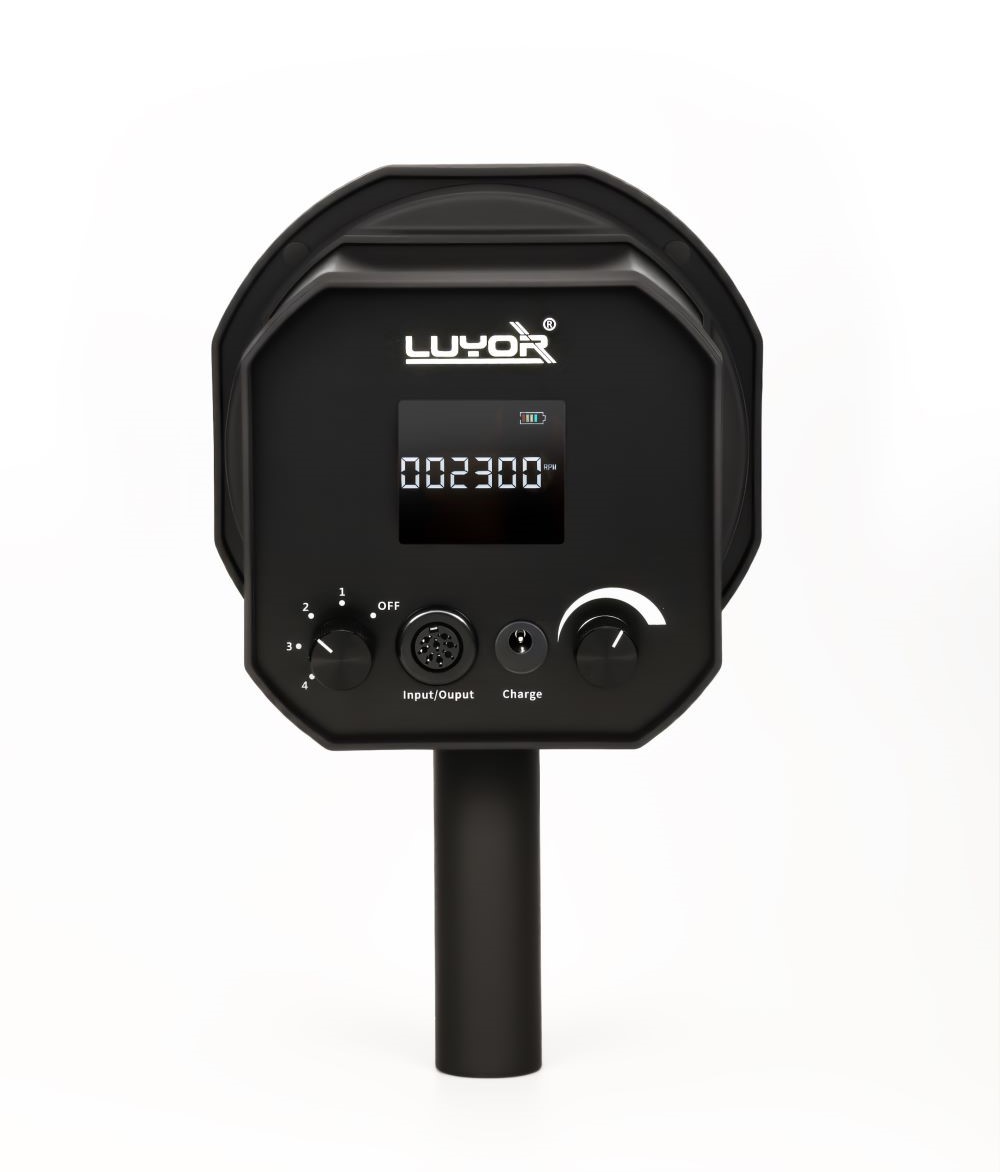

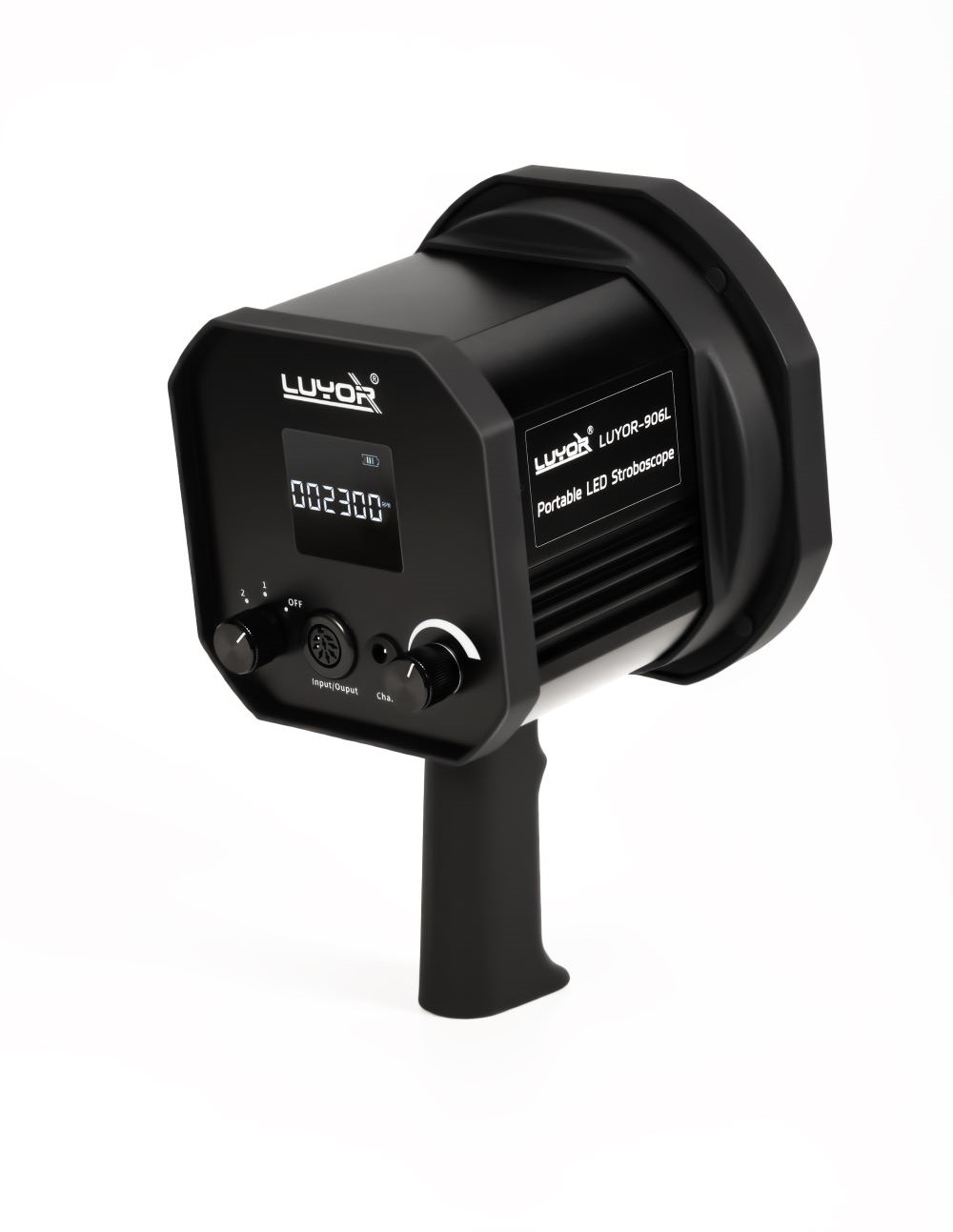

Portable Laser Stroboscope LUYOR-906L

The Portable Laser Stroboscope LUYOR-906L is a high-performance stroboscope for visually inspecting running machines and for determining the machine speed. The stroboscope is robust and is characterised by its excellent brightness, allowing usage in challenging industrial environments. The built-in laser speed measurement and the simple controls help users to quickly set the correct flash rate and obtain clear “frozen” images for inspection.


Portable Laser Stroboscope LUYOR-906L

INTRODUCTION

High Performance Laser Stroboscope LUYOR-906L

Stroboscope with 40 ultra-bright LEDs for visual inspection of running machines

The Portable Laser Stroboscope LUYOR-906L is a high performance stroboscope for visually inspecting running machines and for determining the machine speed. The stroboscope is robust and is characterised by its excellent brightness, allowing usage in challenging industrial environments. The built-in laser speed measurement and the simple controls help users to quickly set the correct flash rate and obtain clear “frozen” images for inspection.

The Portable Laser Stroboscope LUYOR-906L is ideal for both general maintenance tasks and demanding applications.


High Performance Laser Stroboscope LUYOR-906L Features

  • User-friendly design for fast and easy inspection jobs

  • Ergonomic and robust design for portable usage in industrial environments

  • 40 ultra-bright LEDs with long lifetime and continuous operation

  • Tripod mount for stationary inspection

  • Portable operation with built-in rechargeable battery

  • Flash synchronization from laser tachometer or trigger input

  • Phase delay and time delay modes available

  • Supplied in a sturdy carrying case

Portable Laser Stroboscope LUYOR-906L

Typical Applications of Portable Laser Stroboscope LUYOR-906L

The Portable Laser Stroboscope LUYOR-906L is excellent for visual inspection of running machines in challenging industrial environments.

  • General maintenance - Inspection of running machines for visible damages, such as fan blades, shafts, couplings, belts, chains, gears, etc.

  • Paper production - Setup and control of paper production quality during operation

  • Textile industry - Installation and inspection of production processes such as spindles or weaving patterns

  • Printing industry - Check of printing quality during production

  • Test equipment - Analysis of materials and components during fast movements such as analysis of resonance behaviour

Technical Data

DesignationLUYOR-906L Portable Laser Stroboscope
Flash Range60-300,000 RPM
Laser Operating Distance10-200 cm
Light Source40 high-output LED Array
BrightnessAdjustable
Flash Accuracy± 0.01 %
DisplayHigh-contrast backlight LCD
Power Supply

Rechargeable internal Li-ion battery

Battery: DC 8.4V 2800mA

Battery ChargerAC 100V~240V 50~60Hz
RatingIP54
Weight1 kg
Dimension160 x 130 x 210mm (W x D x H)

Ordering Information

Order NumberDescription
LUYOR-906LLaser LED Stroboscope

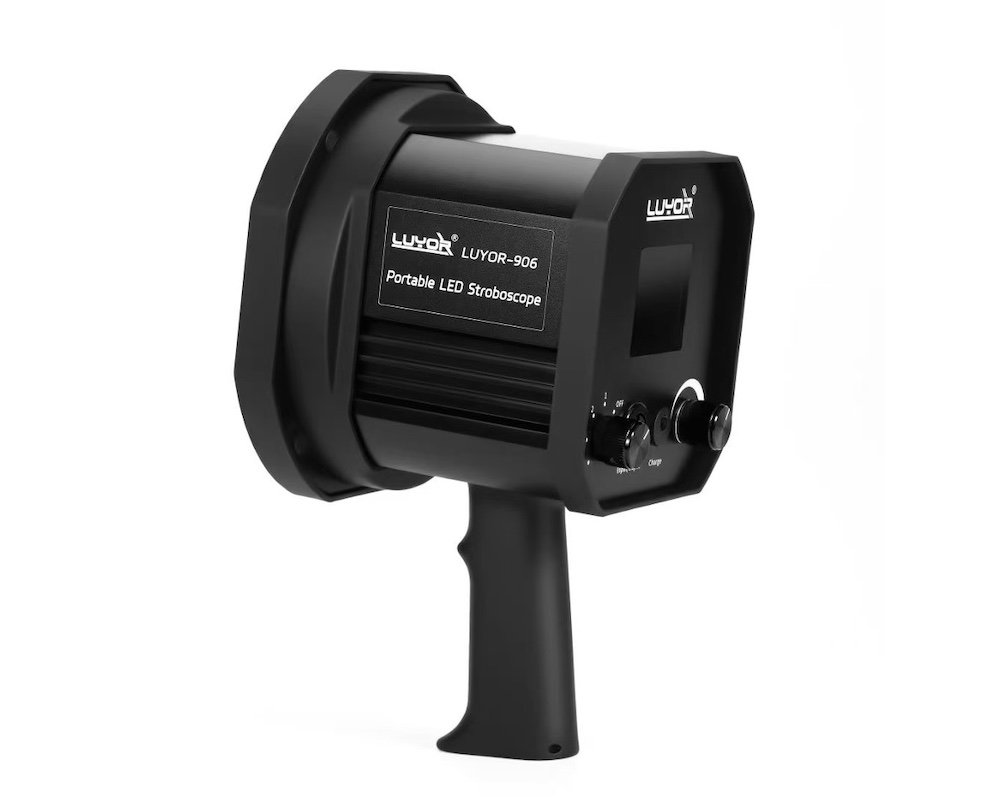

LUYOR-906LED Stroboscope

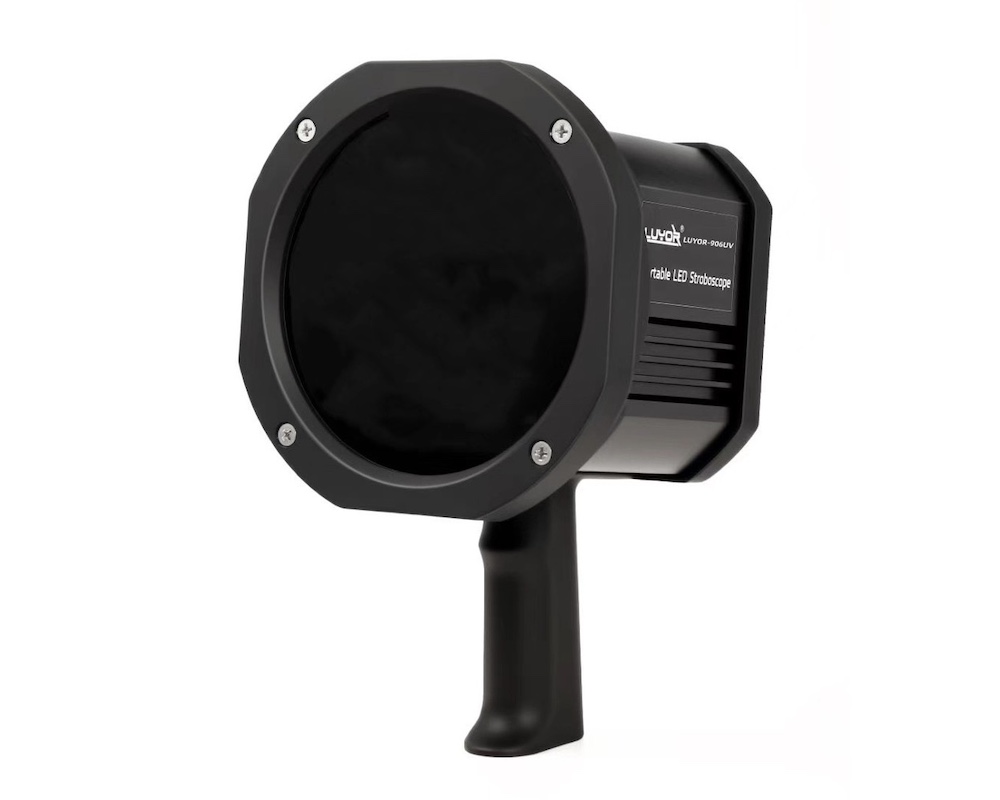

LUYOR-906UV-365Ultraviolet LED Stroboscope with 365nm UV LEDs
LUYOR-906UV-385Ultraviolet LED Stroboscope with 385nm UV LEDs

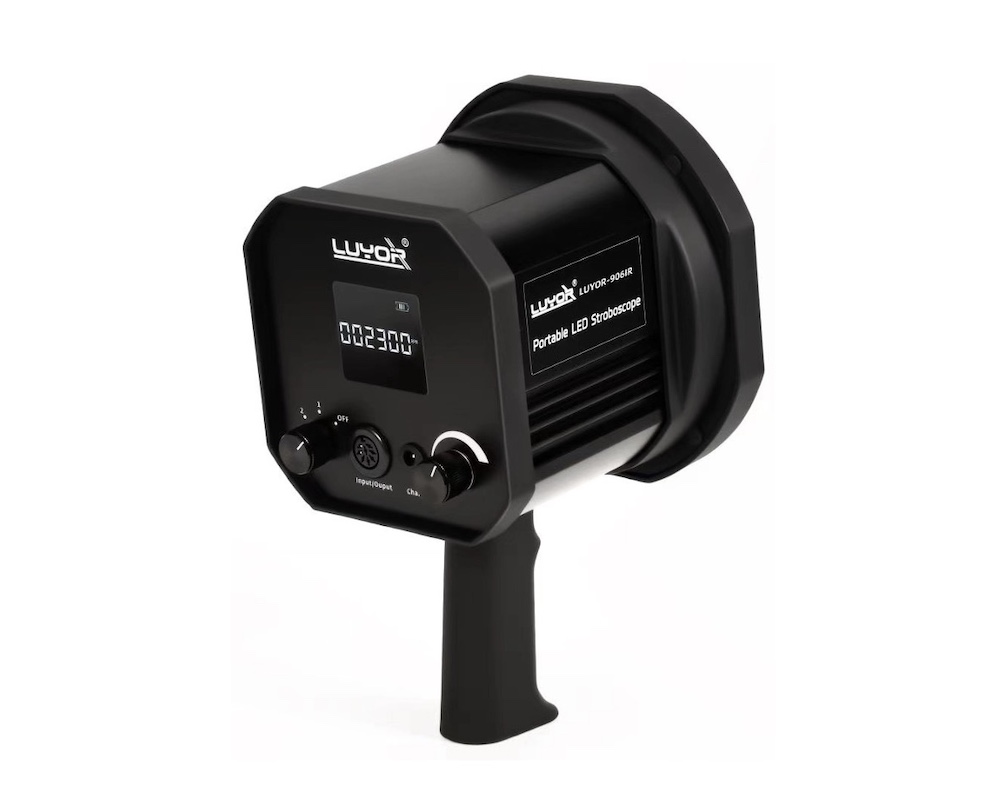

LUYOR-906IRInfrared LED Stroboscope


LUYOR-906L Laser Stroboscope Demonstration Video
