Ultraviolet LED Stroboscope LUYOR-906UV

The LUYOR-906UV Ultraviolet LED Stroboscope with UV 365nm or UV 385nm LED models provide a lamp mode for static inspection and strobe mode for stop-motion inspection of high-speed processes.

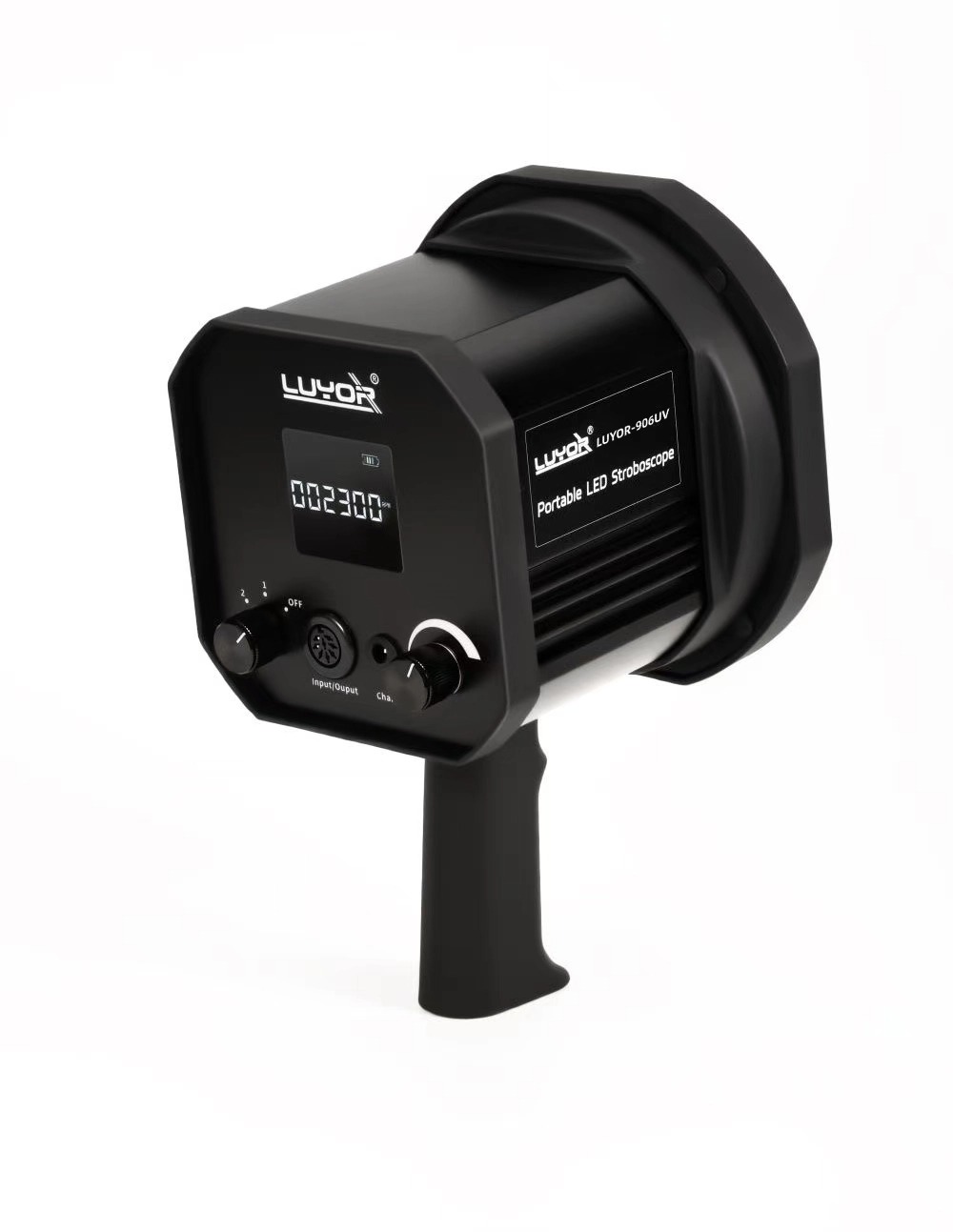

Ultraviolet LED Stroboscope LUYOR-906UV

INTRODUCTION

LUYOR-906UV Ultraviolet LED Stroboscope

The LUYOR-906UV Ultraviolet LED Stroboscope/Tachometer is a powerful portable visual inspection and speed measurement tool. Both 365nm and 385nm LED models provide a lamp mode for static inspection and strobe mode for stop-motion inspection of high-speed processes. The LUYOR-906UV is an extremely powerful portable ultraviolet LED visual inspection instrument built on the LUYOR stroboscope platform. These strobes are available with 365nm or 385nm wavelength LEDs and are optimized for inspection of UV inks on labels, security tags, anti-counterfeiting marks, UV coatings, and more.

We have included all the features of our LUYOR-906UV handheld LED stroboscopes including a full-function laser tachometer to create a compact, ergonomic, and extremely powerful two-in-one predictive maintenance tool. The stroboscope light source consists of 40 ultraviolet LEDs which are extraordinarily bright yet extremely efficient allowing cool continuous operation and extremely long battery life. The onboard laser sensor can be used as a full-featured tachometer for making quick RPM checks in the field or use as a trigger for the stroboscope.

The LUYOR-906UV features a high contrast LCD with backlight, easy-to-use knobs, input and output jacks for external sensors or pulse repeater output, phase delay, and time delay.

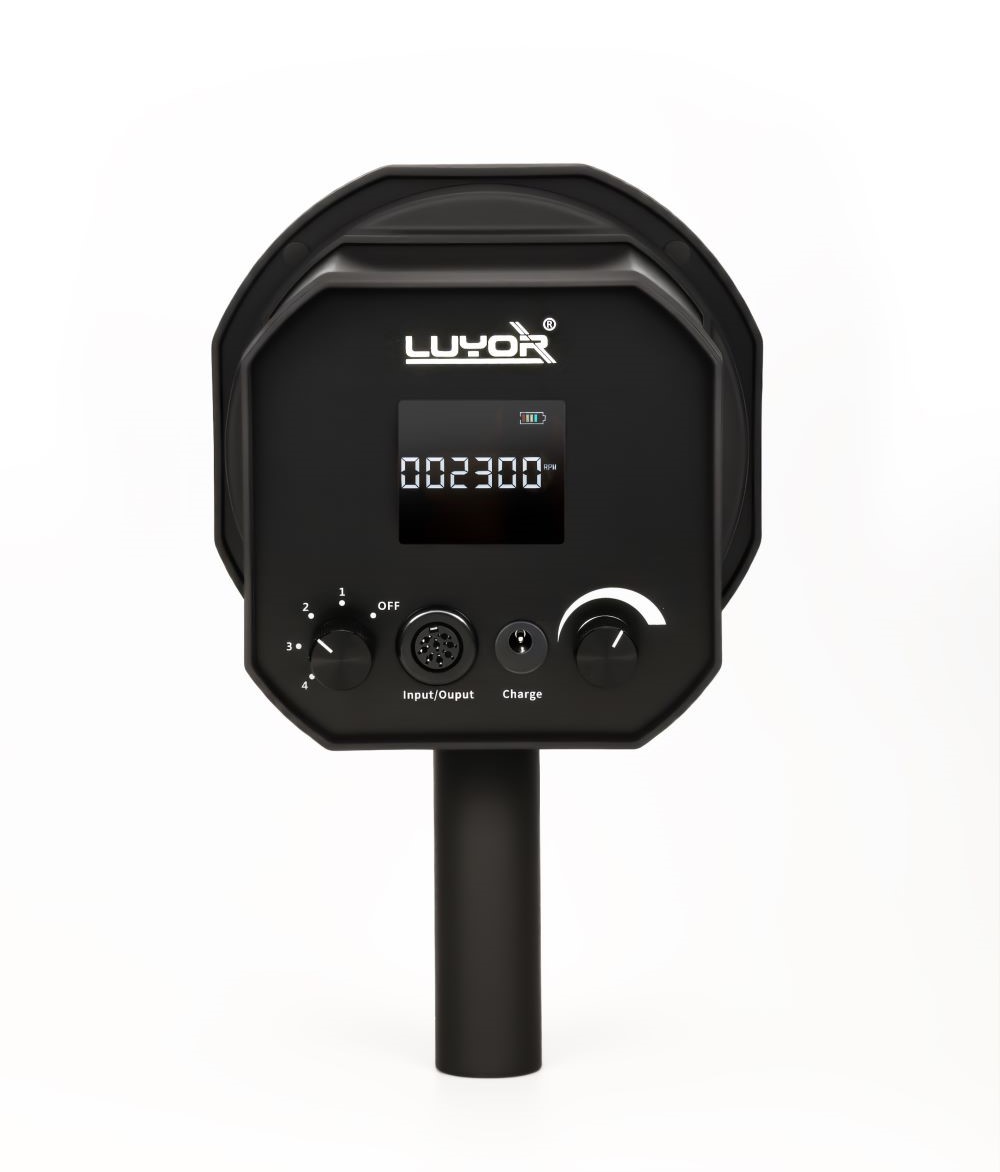

LUYOR-906UV Ultraviolet LED Stroboscope

LUYOR-906UV Ultraviolet LED Stroboscope Features

  • Adjustable brightness ultraviolet LED light stroboscope & tachometer in one!

  • Splash-resistant IP54 enclosure

  • 1/4'' x 20 tripod mount

  • Ergonomic one-handed operation

  • Powered by rechargeable Li-ion battery

  • TTL compatible input/output jacks

  • Integral optical sensor and flash trigger technology

Benefits of Ultraviolet LEDs

  • Energy efficient with long battery life (9 hours typical)

  • Extremely bright, uniform light output

  • Completely silent

  • Cool operation

  • No lamp replacements

  • Extremely high flash rates

LUYOR-906UV Ultraviolet LED Stroboscope

Technical Specifications

Ultraviolet Wavelength365nm or 385nm
Flash Range60 to 300,000 FPM/RPM
Display6-digit numeric LCD, high-contrast black background/white characters with backlight
Resolution6 digits to 0.01
Light Output1,700 µW/cm2 @ 12'', 6000RPM
Light Source40 high-output LED Array
Tachometer Mode60-299,999 RPM with integral laser or external input
External Triggers Input/OutputTTL (12 Vdc) max input; provides 3.3 Vdc TTL output
Phase Delay0-359 degrees
Time Delay0-70 msec
Operating Time9.5 hours
Power Supply

Rechargeable Li-ion battery pack with 100-240 50/60 Hz charger

Battery: 7.4V, 2.8Ah (21W)

RatingIP54
Weight1 kg
Dimension160 x 130 x 210 mm (W x D x H)


What's Included

  1. LUYOR-906UV Ultraviolet LED Stroboscope

  2. A charger

  3. A storage case

  4. Certificate

  5. Warranty card

  6. User manual


Ordering Information

Order NumberDescription
LUYOR-906LLaser LED Stroboscope
LUYOR-906LED Stroboscope
LUYOR-906UV-365Ultraviolet LED Stroboscope with 365nm UV LEDs
LUYOR-906UV-385Ultraviolet LED Stroboscope with 385nm UV LEDs
LUYOR-906IRInfrared LED Stroboscope
