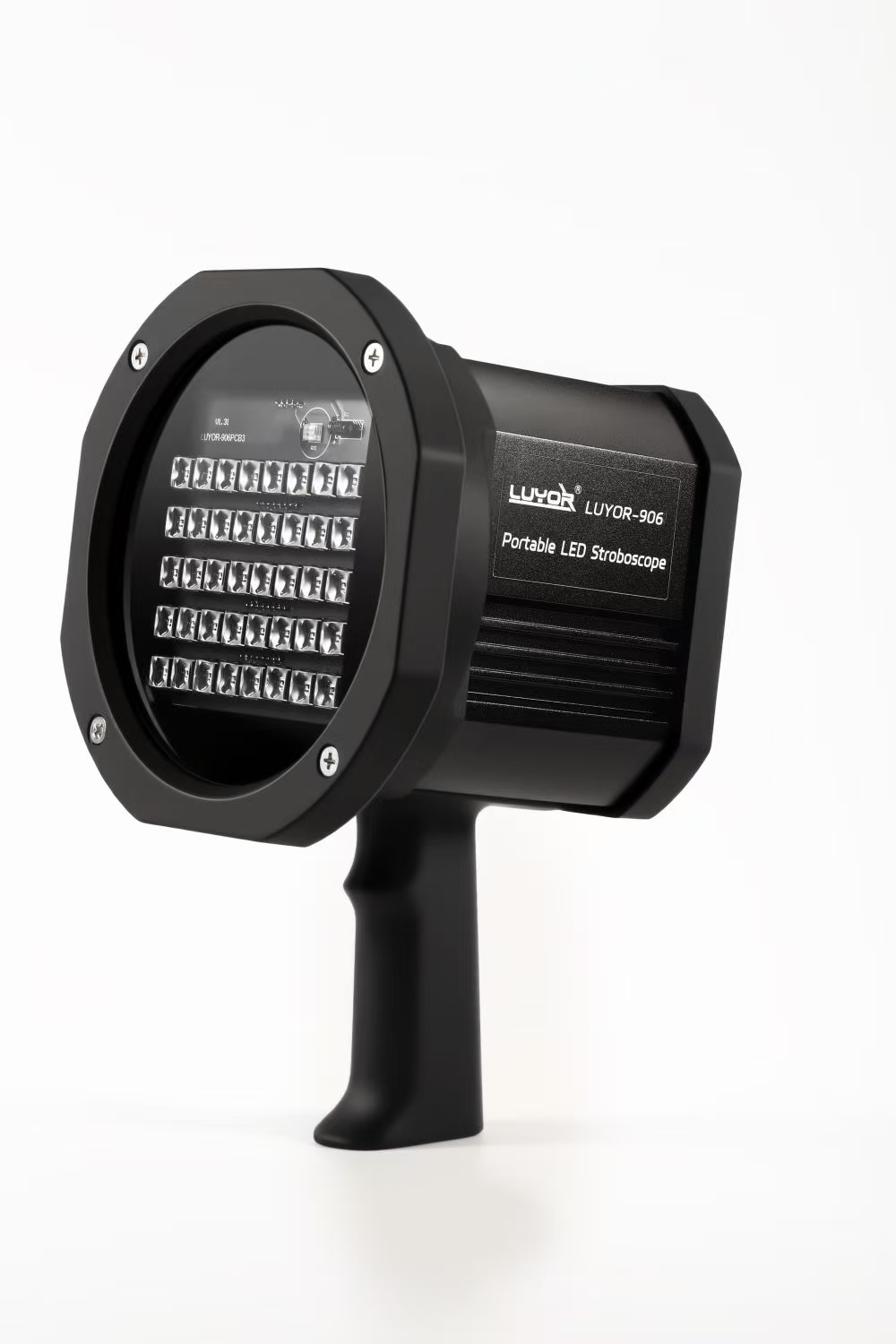

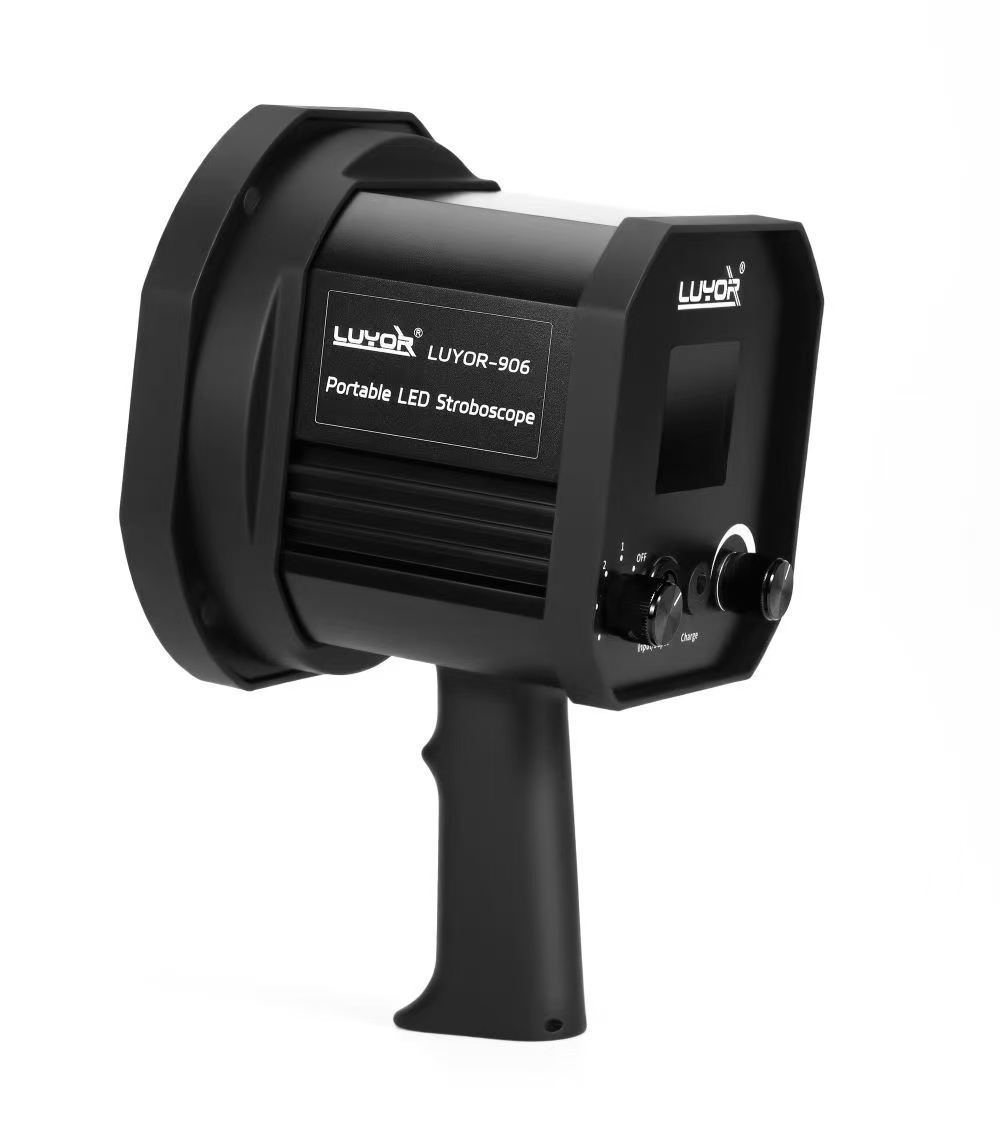

LED Stroboscope LUYOR-906

The Portable Laser Stroboscope LUYOR-906 is a high performance stroboscope for visually inspecting running machines and for determining the machine speed. The stroboscope is robust and is characterized by its excellent brightness, allowing usage in challenging industrial environments. The built-in laser speed measurement and the simple controls help users to quickly set the correct flash rate and obtain clear “frozen” images for inspection.

Contact

INTRODUCTION

LED Stroboscope LUYOR-906

LED Stroboscope LUYOR-906 Features

40 high-power ultra-bright LED arrays

Flash range of 60-300,000 RPM with user-selected units of Hz or RPM

Selectable units of "RPM or "Hz"

Adjustable light intensity for optimum viewing in different conditions

Built-in Li-on battery provides hours of continuous operation on a single charge

Battery status is shown on LCD display

Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application

Threaded mounting holes for fixed mount applications

Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and LCD display

Supplied with universal AC battery charger

LED Stroboscope LUYOR-906

Technical Data

Designation	LUYOR-906 LED Stroboscope
Flash Range	60-300,000 RPM
Light Source	40 high-output LED Array
Brightness	Adjustable
Flash Accuracy	± 0.01 %
Display	High-contrast backlight LCD
Power Supply	Rechargeable internal Li-ion battery Battery: DC 8.4V 2800mA
Battery Charger	AC 100V~240V 50~60Hz
Rating	IP54
Weight	1 kg
Dimension	160 x 130 x 210mm (W x D x H)

Ordering Information

Order Number	Description
LUYOR-906L	Laser LED Stroboscope
LUYOR-906	LED Stroboscope
LUYOR-906UV-365	Ultraviolet LED Stroboscope with 365nm UV LEDs
LUYOR-906UV-385	Ultraviolet LED Stroboscope with 385nm UV LEDs
LUYOR-906IR	Infrared LED Stroboscope
